AWS Kinesis to Snowflake

In this tutorial we will show how you can setup Kinesis stream and firehose to load data into Snowflake. We will use a local python script of taxi data to act as our source.

Credit for the orginial tutorial goes to Umesh Patel!

Video

Requirement

This tutorial assumes you have nothing in your Snowflake account (Trial) and no complex security needs.

Download needed files:

  • Data generator code (Link)

Snowflake Setup

For the Snowflake setup we'll want to create the service user with an ssh key and the table to load data into.

Generate an ssh key

Lets create the private and public key so that we can apply the public key to our user.

1
2
3
openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out private_key.p8 -nocrypt
sed '/-----/d' private_key.p8 | tr -d '\n' > private_key_kinesis.txt
openssl rsa -in private_key.p8 -pubout -out public_key.pub

1
Writing RSA key.

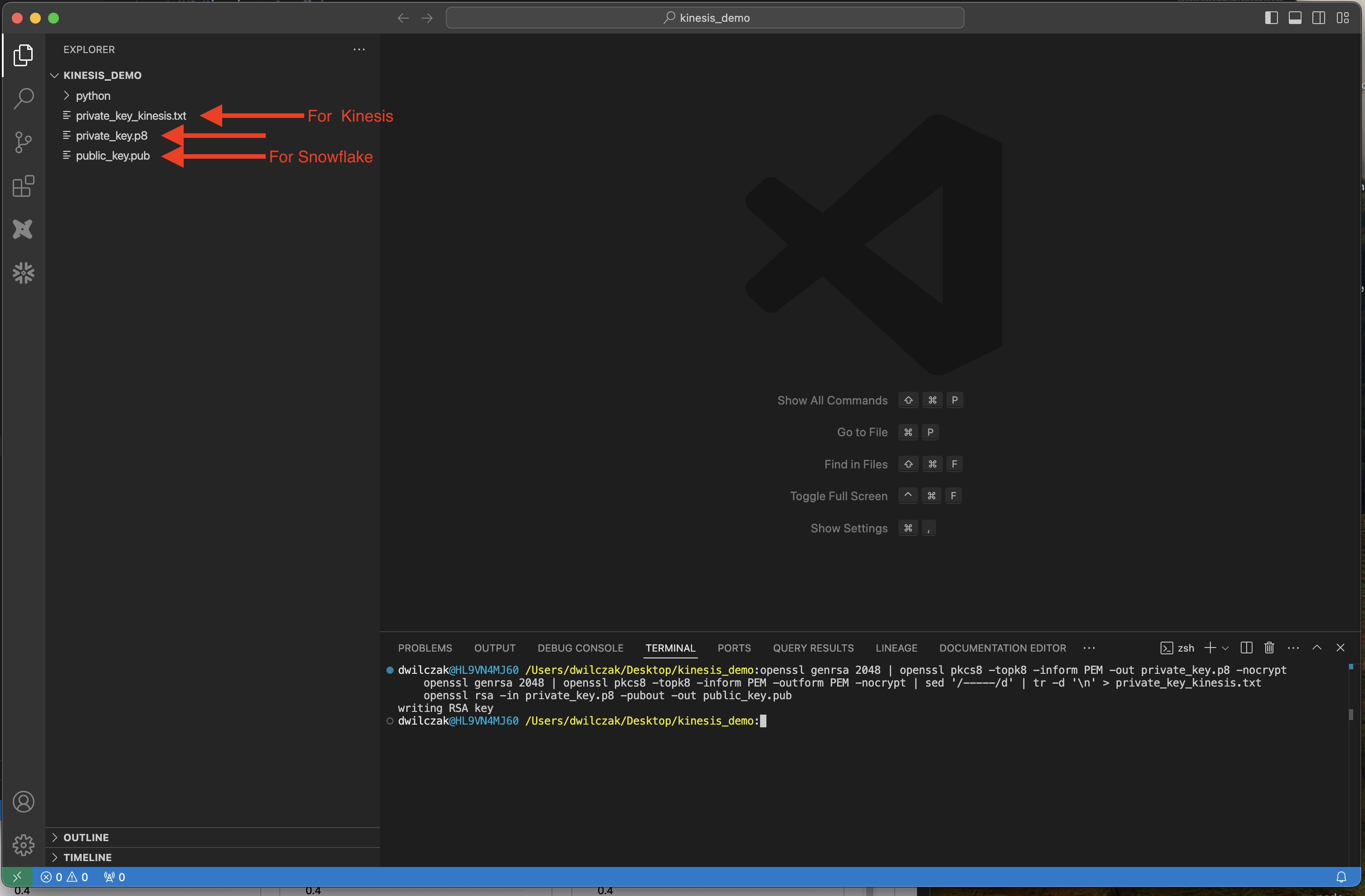

This will create three files files in the folder we are currently located. Two keys

User

Lets create the usser and apply the public key to our user in Snowflake. The public key file will end with .pub.

1
2
3
4
5
6
7
8
use role accountadmin;

create user danielwilczak type = 'service';

alter user danielwilczak set
    rsa_public_key='<Public Key>';  /* (1)! */

grant role sysadmin to user danielwilczak;

  1. The public key file will end with .pub. We got this from our "Generate an ssh key step".
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
use role accountadmin;

create user danielwilczak type = 'service';

alter user danielwilczak set
    rsa_public_key='MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAsLiIQpJ0SkB0KgyN/Cj5
        O+3W3zIN5HvjBwsQnVbXAGpu920fohXRQAFc5hZpMNZOGNsLvl1YY1HtQ15j4K7o
        Ip3Eo2.............................................EUnH8sGWDvH+U
        g5ha+Sa6KD5864ajlkylKFiu9T++GQaItyLNsOVx8AGi8J4oDtv02a6MlG7oDyOo
        ArBubofdmM+8exWL7NfYNfV04Wjnpz5itGNq9CM718Fx910mom4sIUPBGQC0Dnio
        Wr9cvDxXmfWdRUjgeKDGAwrvXP9+PtCMoLlo+eYjWhz9Gii2lxdHqfLgY67ZCa1t
        ZQIDAQAB';

grant role sysadmin to user danielwilczak;

1
Statement executed successfully.

Table

Lets create the table in Snowflake to load data into.

If you don't have a database, schema or warehouse yet.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
use role sysadmin;

-- Create a database to store our schemas.
create database if not exists raw;

-- Create the schema. The schema stores all our objectss.
create schema if not exists raw.kinesis;

/*
    Warehouses are synonymous with the idea of compute
    resources in other systems. We will use this
    warehouse to call our user defined function.
*/
create warehouse if not exists development
    warehouse_size = xsmall
    initially_suspended = true;

use database raw;
use schema kinesis;
use warehouse development;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
use role sysadmin;

create or replace table taxi_data (
    vendor_id NUMBER,
    tpep_pickup_datetime VARCHAR,
    tpep_dropoff_datetime VARCHAR,
    passenger_count NUMBER,
    trip_distance FLOAT,
    ratecode_id NUMBER,
    store_and_fwd_flag TEXT,
    pu_location_id NUMBER,
    do_location_id NUMBER,
    payment_type NUMBER,
    fare_amount FLOAT,
    extra FLOAT,
    mta_tax FLOAT,
    tip_amount FLOAT,
    tolls_amount FLOAT,
    improvement_surcharge FLOAT,
    total_amount FLOAT,
    congestion_surcharge FLOAT
);

1
Table TAXI_DATA successfully created.

AWS Setup

Lets setup AWS to recieve data via a stream and the move it to Snowflake via firehose. In the process we will create a user and credentials.

Stream

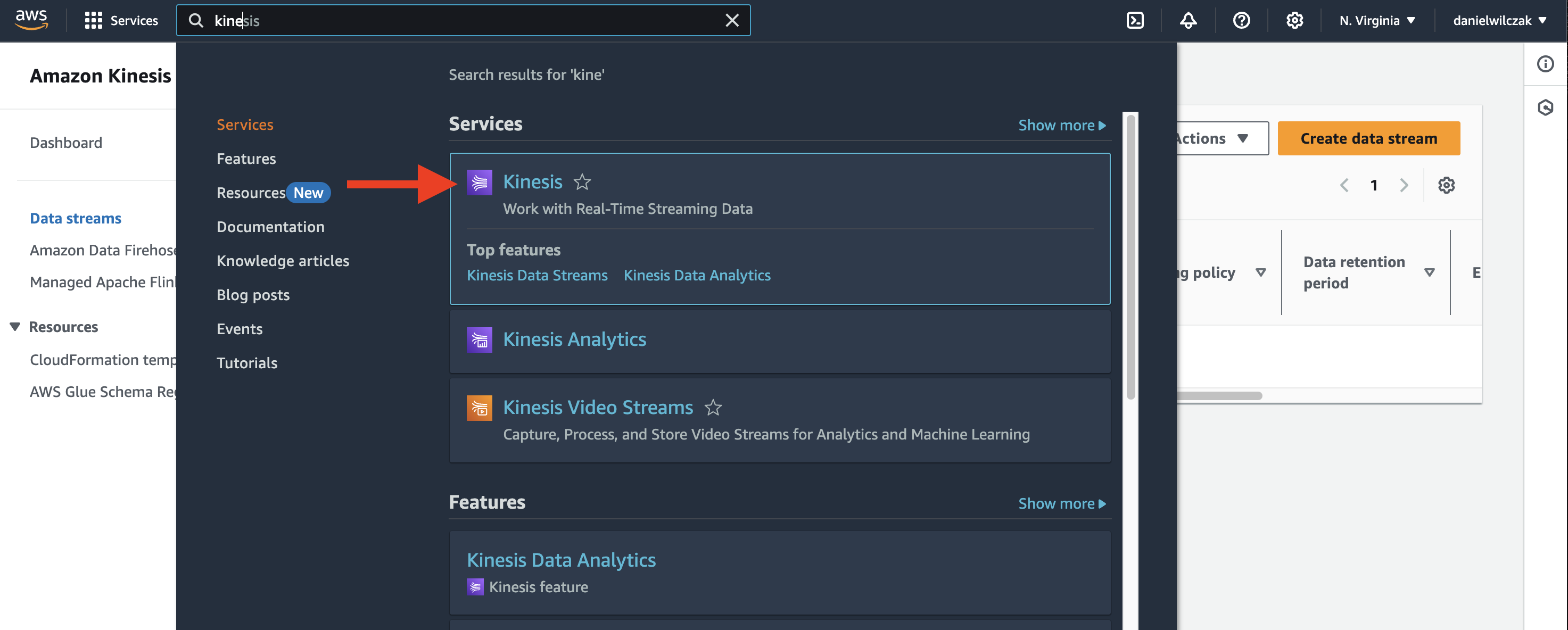

Lets start by heading into aws and going to Kinesis. start

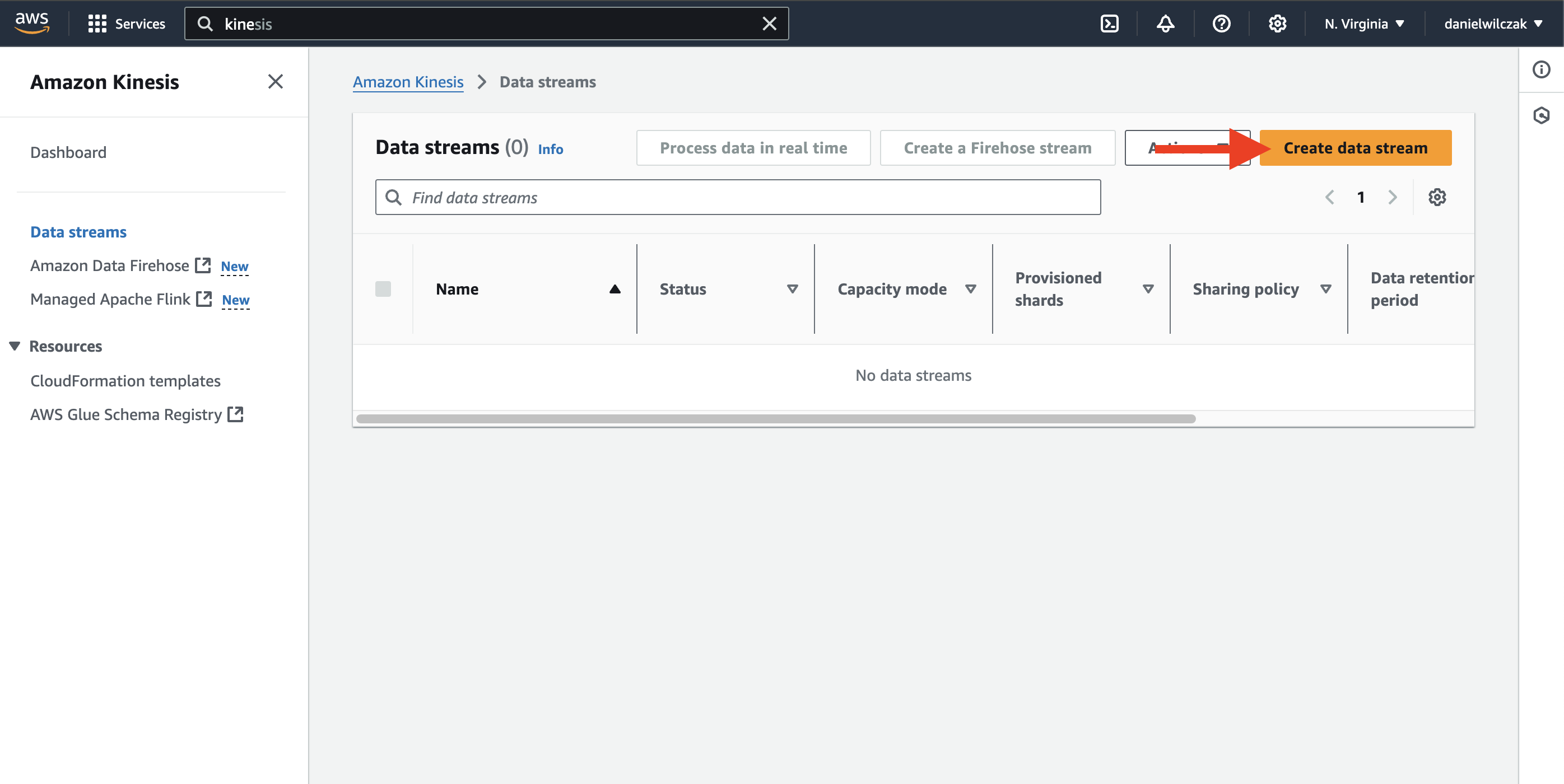

Create a data stream. create

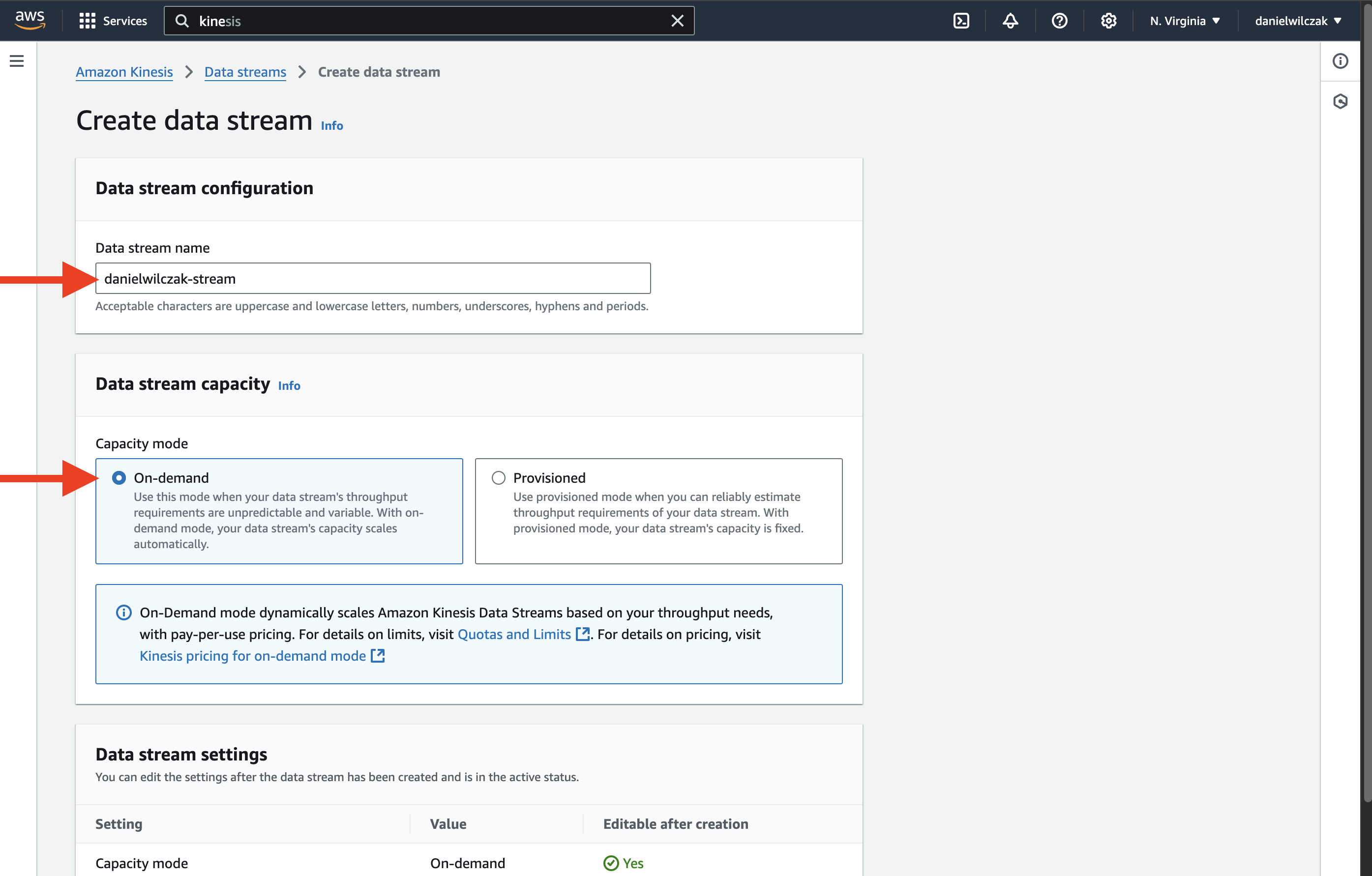

Lets give it a name and select on-demand as we only want to be changed as we use it. Name and demand

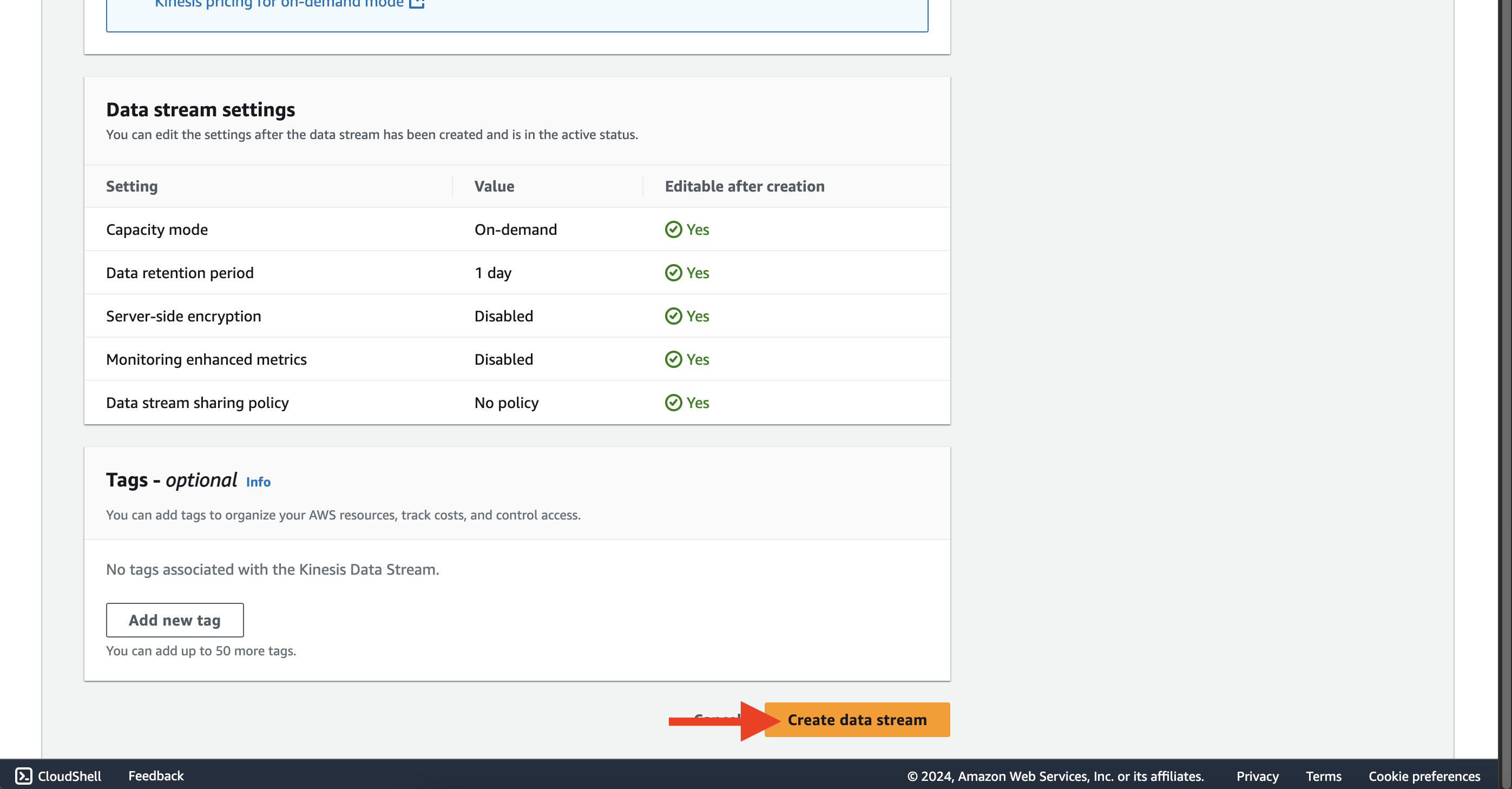

Click create stream. click create

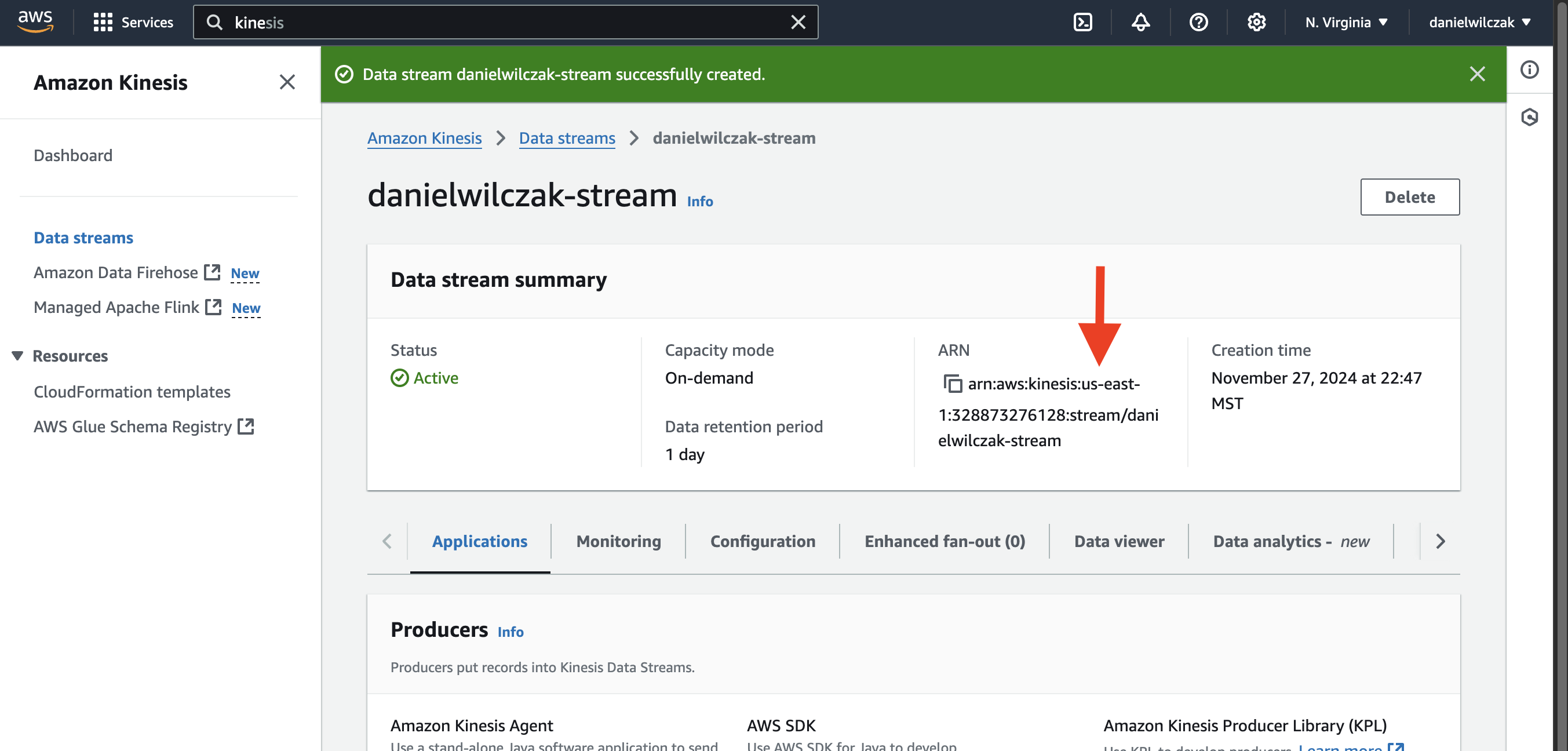

Once it's created we'll want to copy the region. In this case us-east-1. We will use this later in our data generator. Two keys

Firehouse

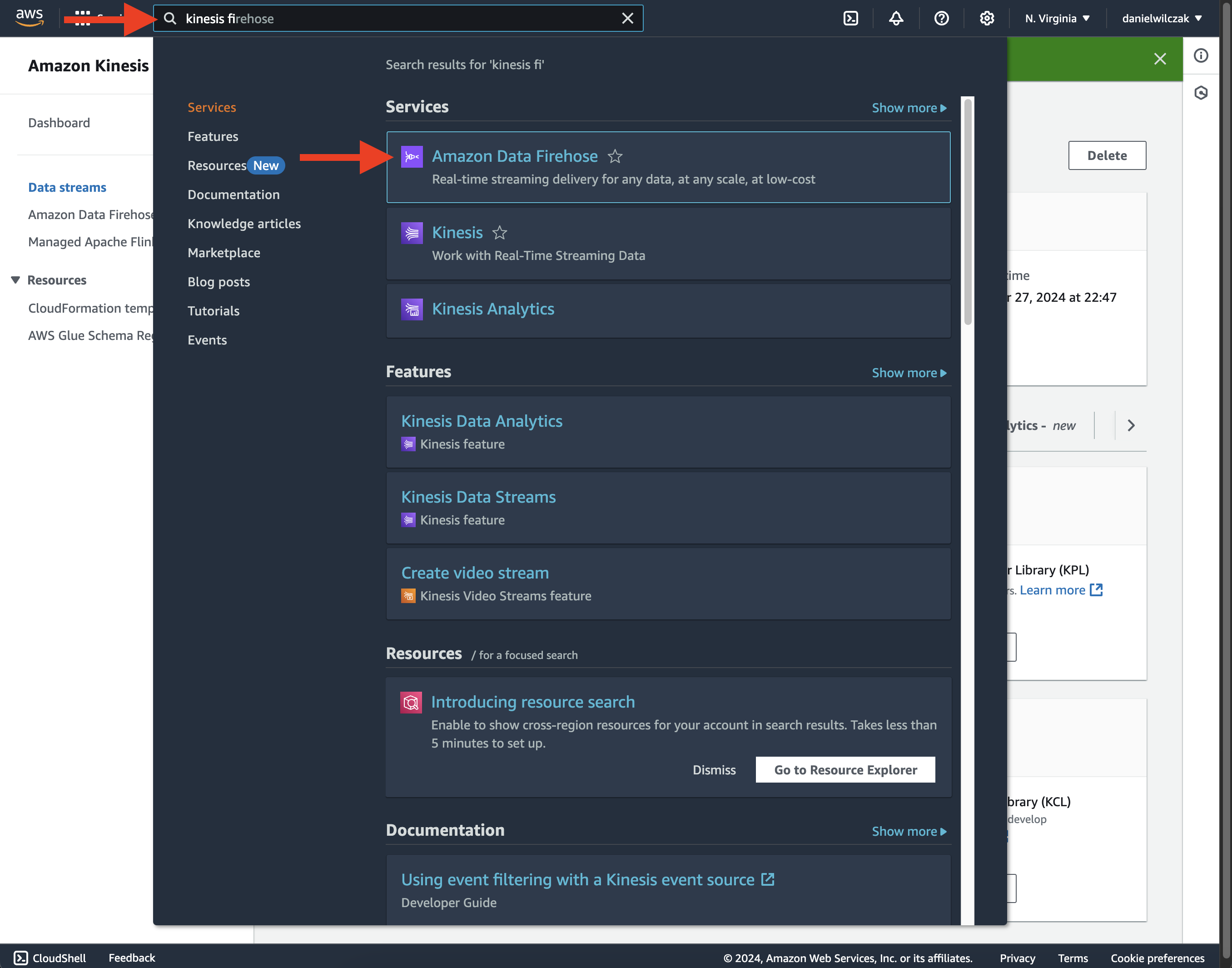

Next we'll want to search for kinesis firehose. Firehose will be the tool that moves our stream to Snowflake. search firehose

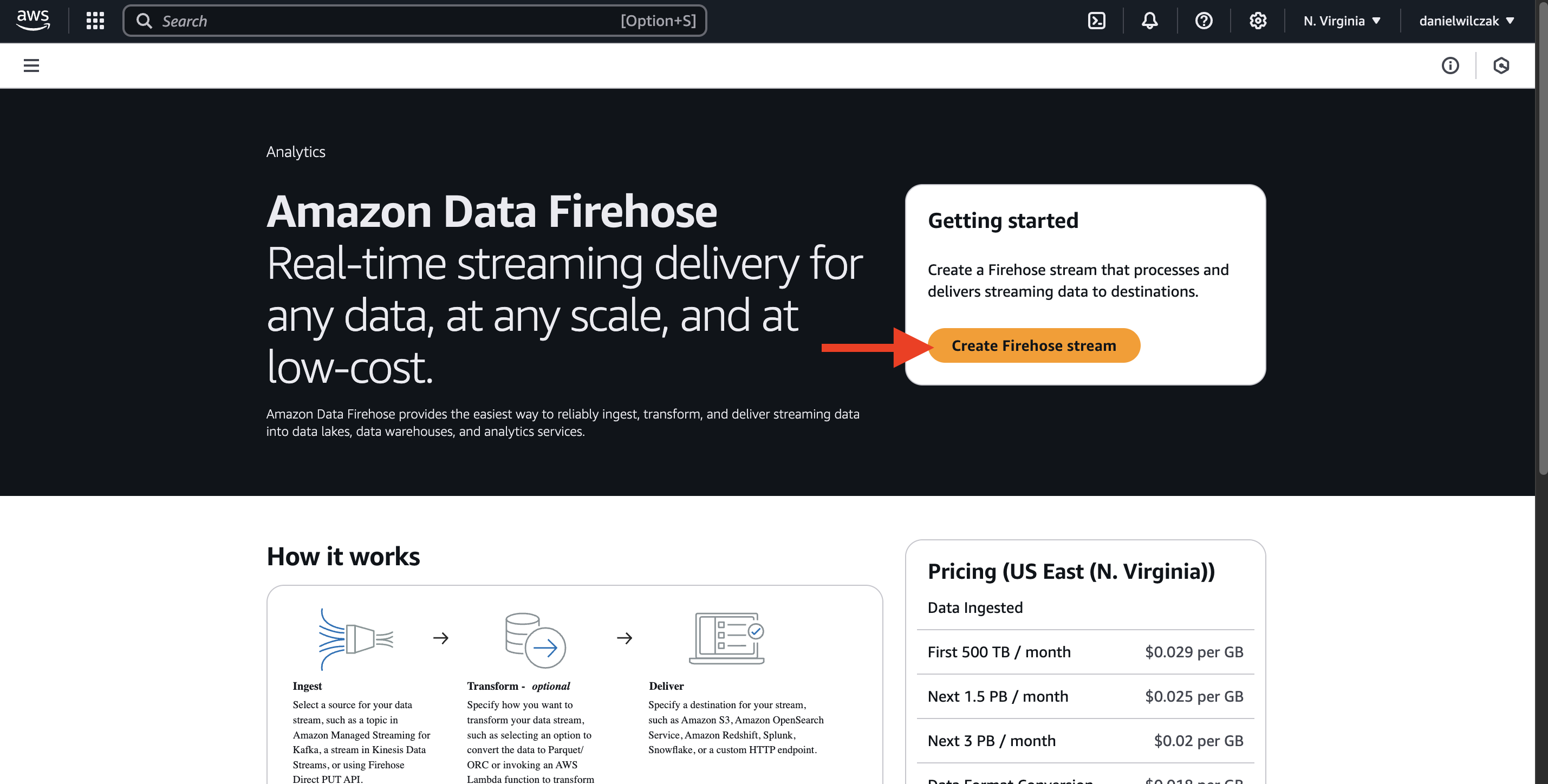

Click create firehouse stream. click create

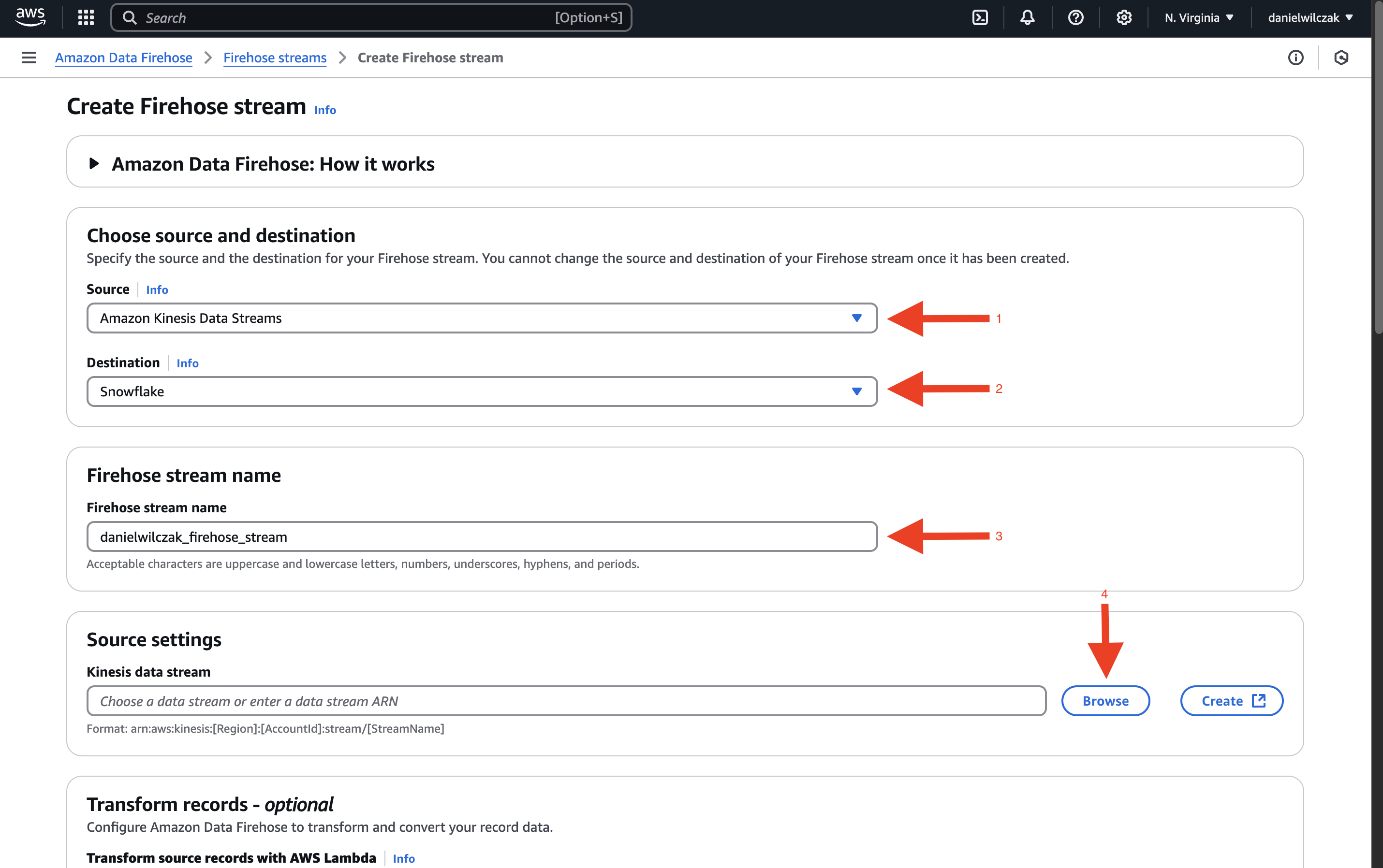

We'll wanted to select kinesis data stream as a source and destination being Snowflake. Next give it a name and click "browse" to find our stream we setup earlier. starting inputs

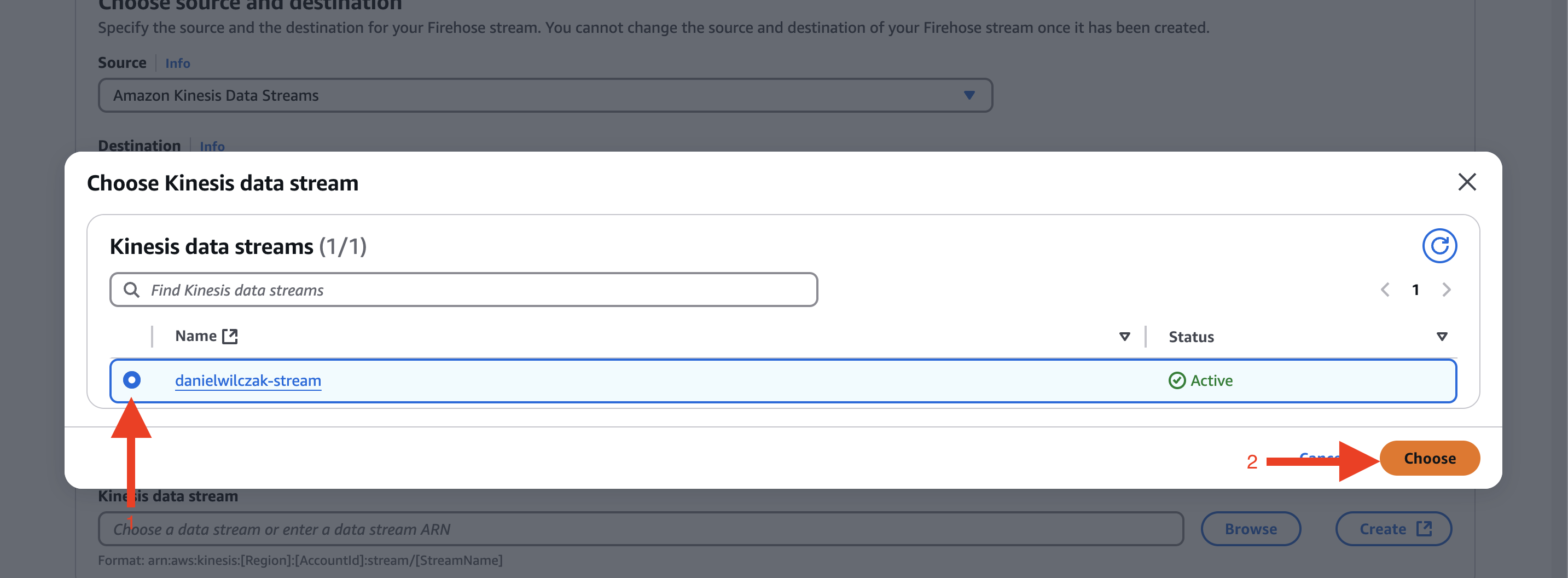

Select our stream. select stream

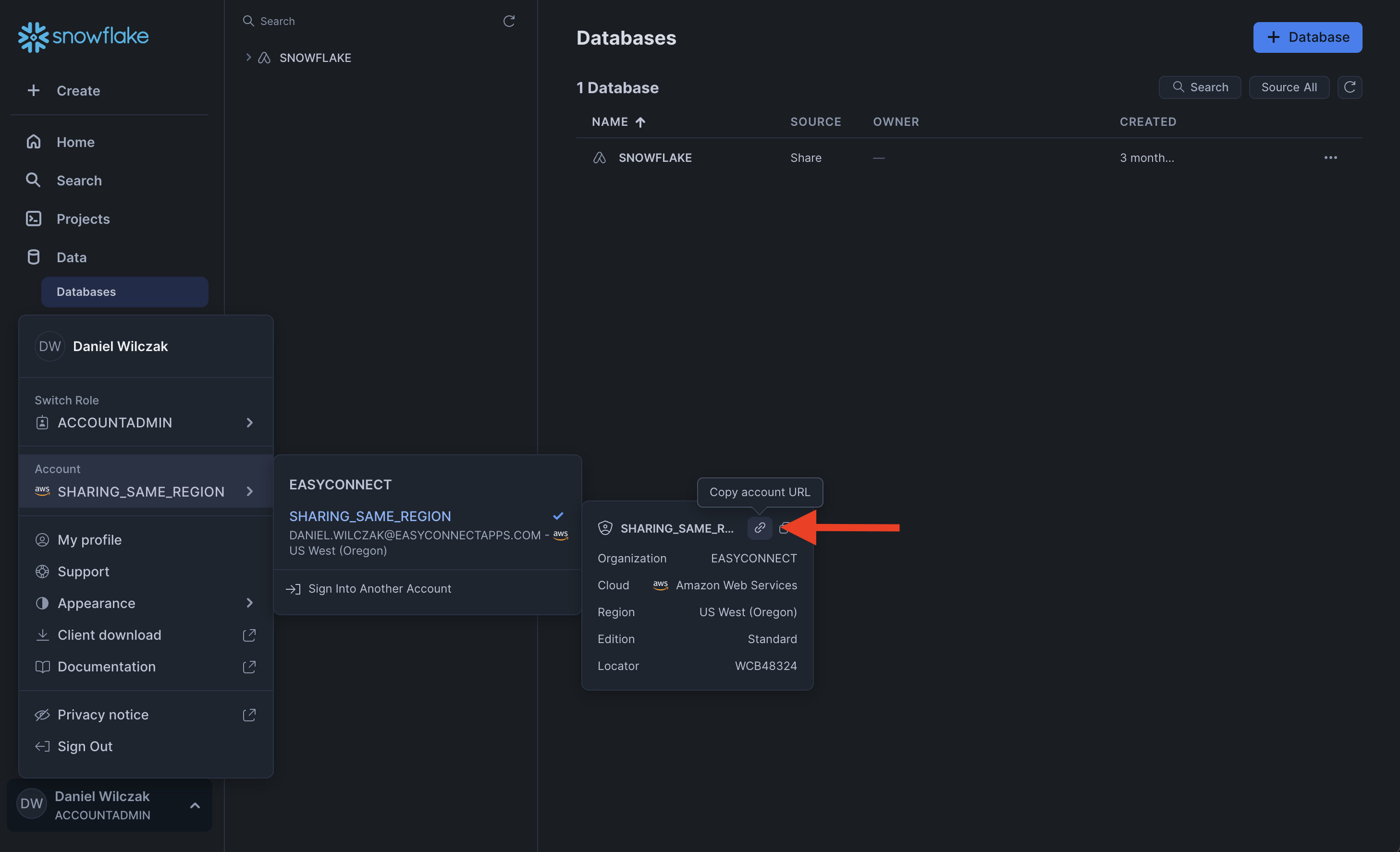

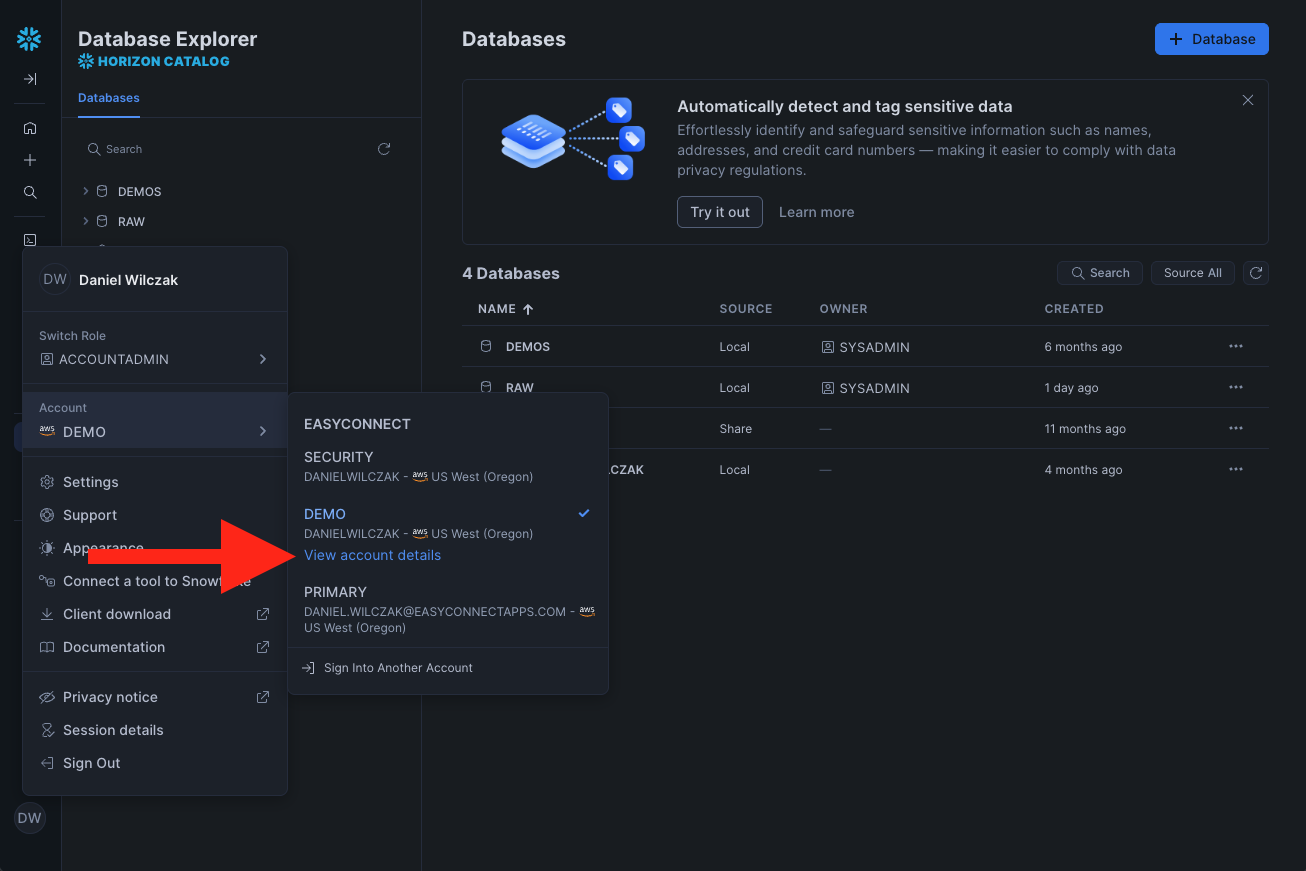

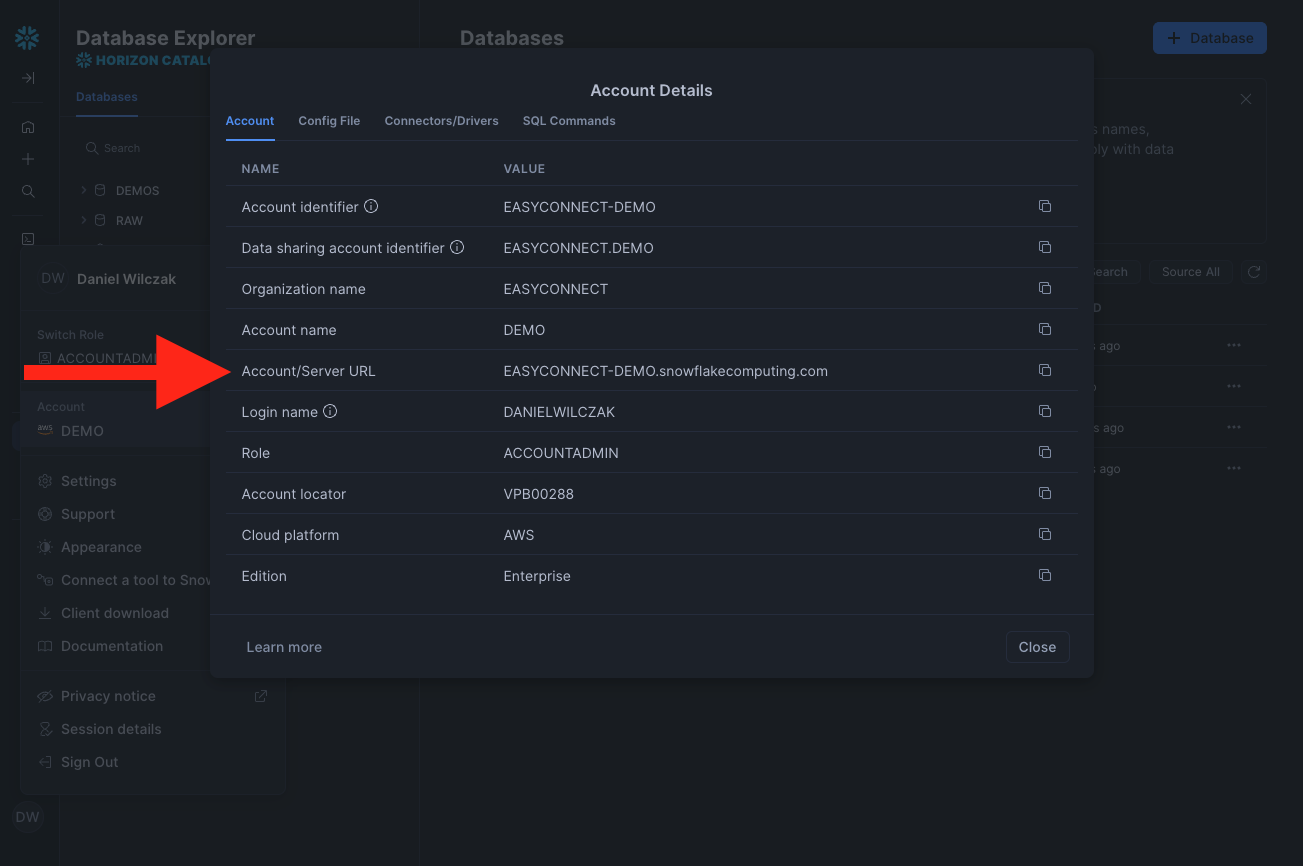

Next we'll want to copy our Account url from Snowflake. Account URL

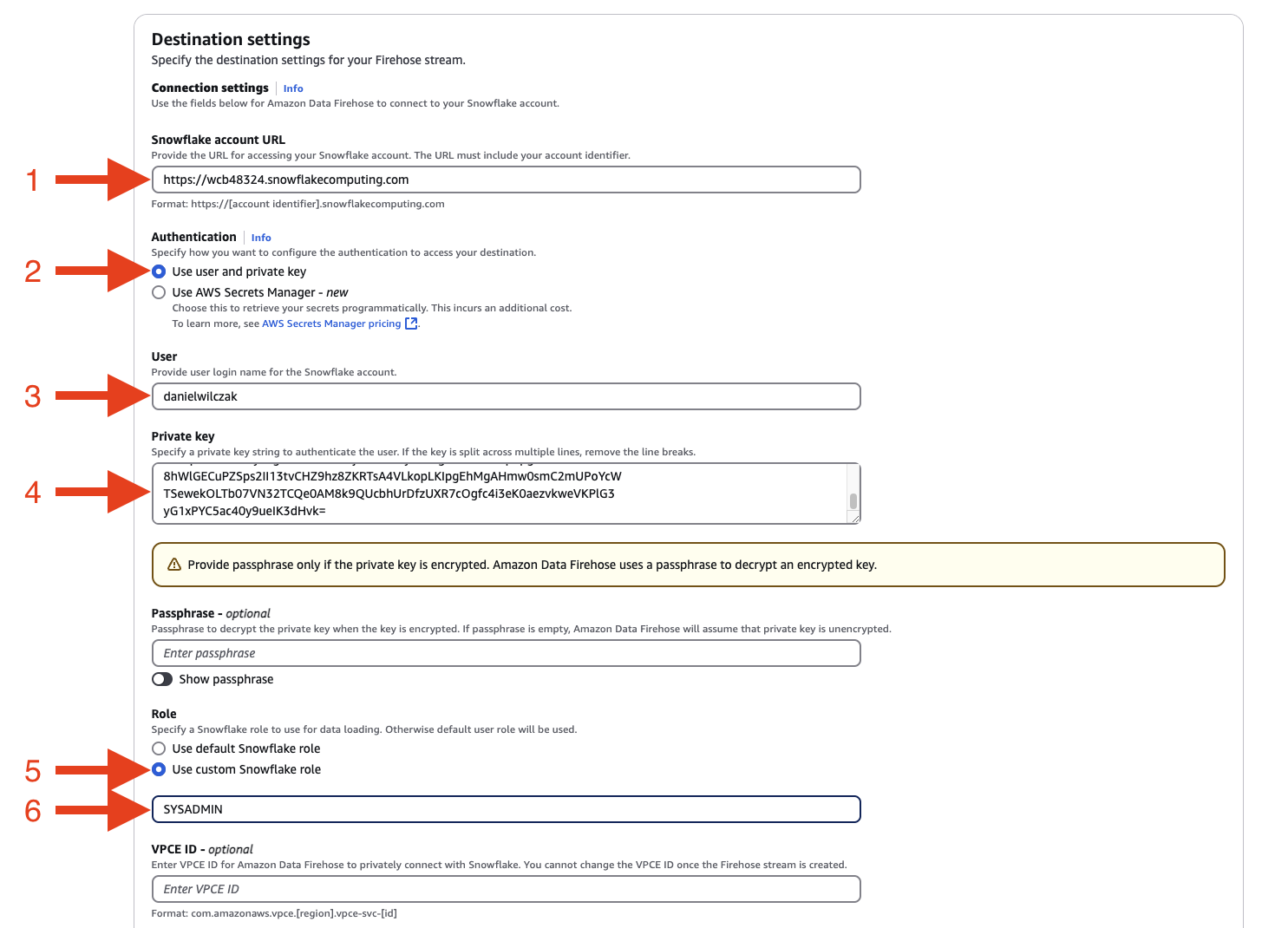

First, paste your Snowflake URL. Next, select "Private Key" and enter your Snowflake username along with the kinesis private key we generated earlier. For the role, choose "Customer Snowflake Role" and specify SYSADMIN. configurations part 1

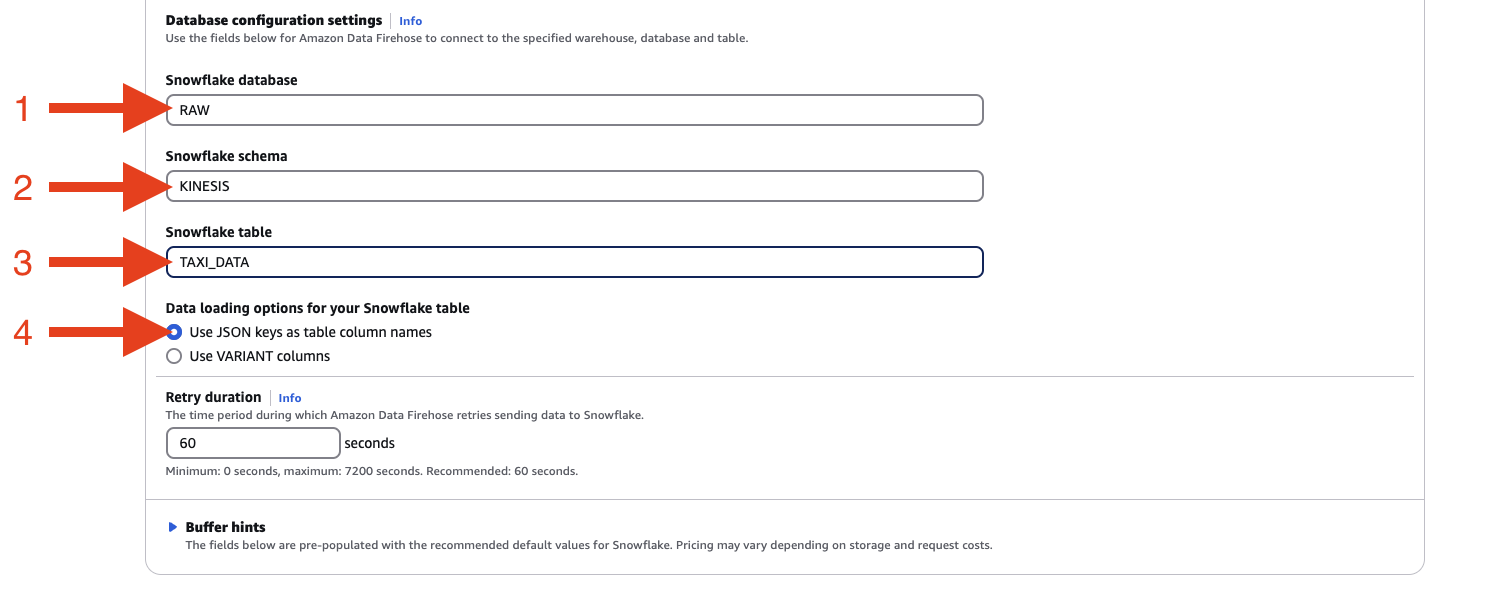

For the database configuration we'll enter RAW for the database, KINESIS for the schema name and TAXI_DATA for the table. We'll also want it to use the keys as column names when it's dropped into Snowflake. configurations part 2

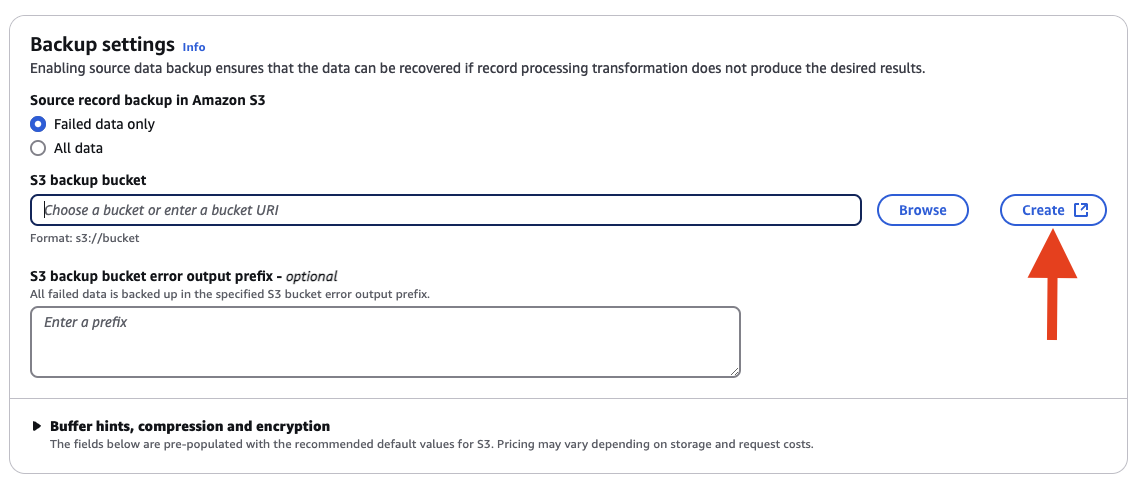

For the backup settings we'll create a new bucket. backup bucket

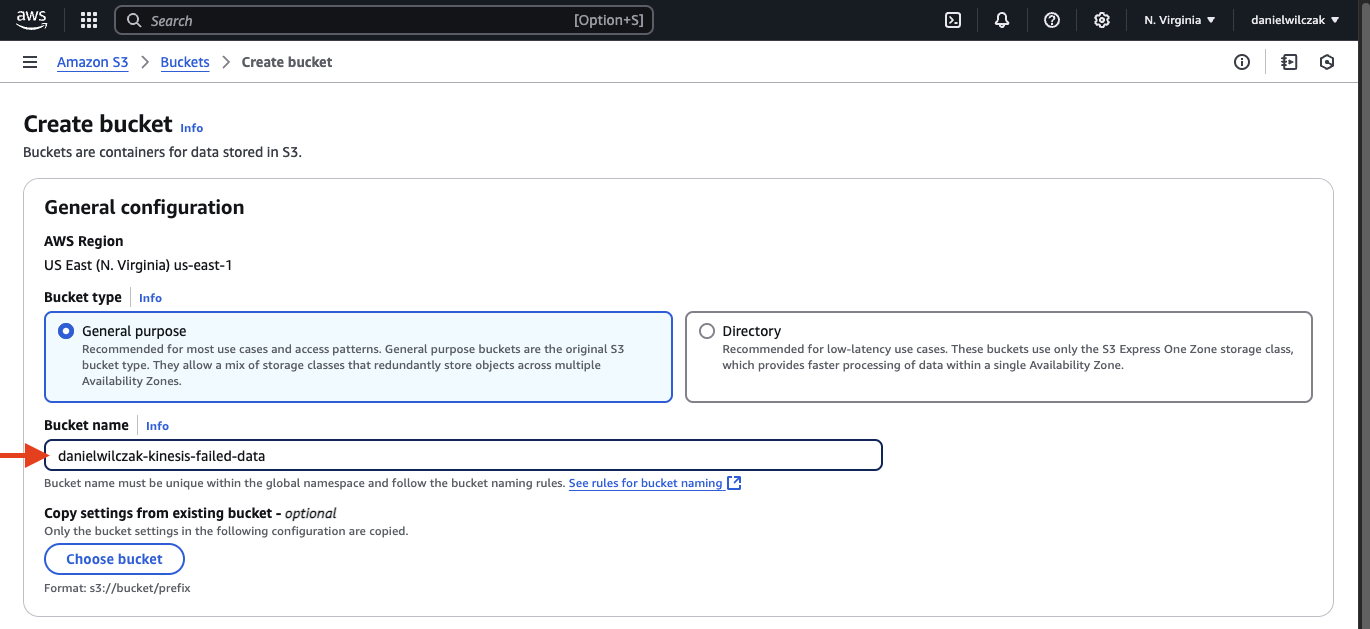

We'll give the bucket a name and then scroll down and click create. create bucket

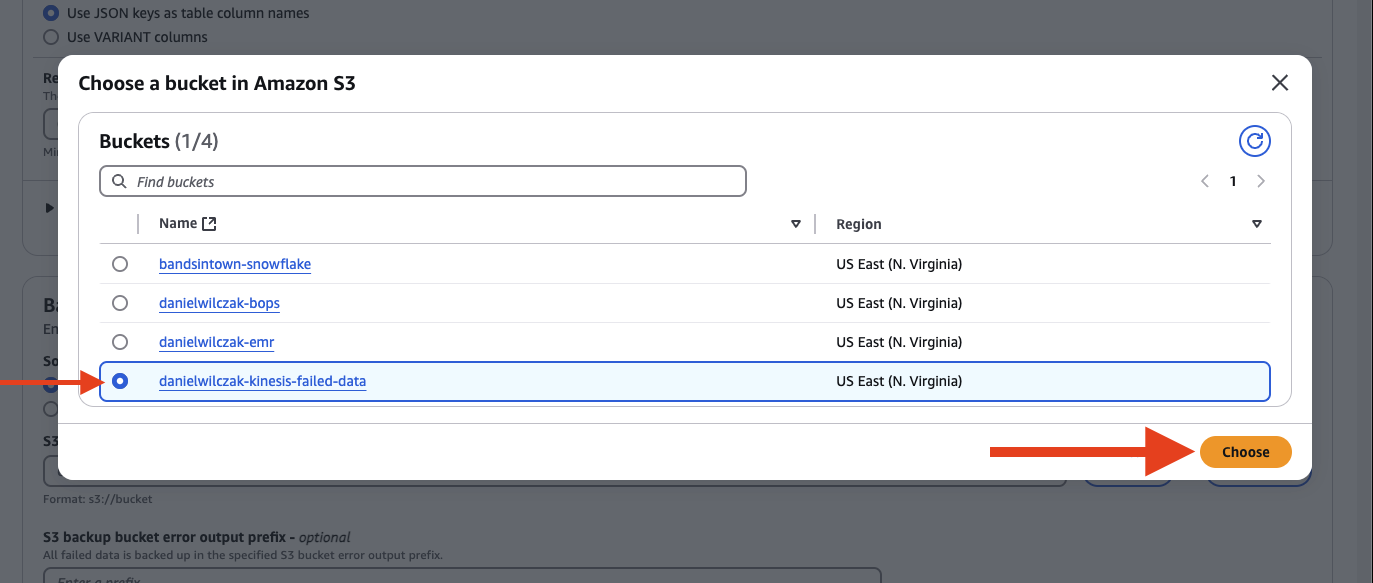

We'll go back and select our bucket we just created. If it does not show up right away, try clicking the refresh button in the top right. select bucket

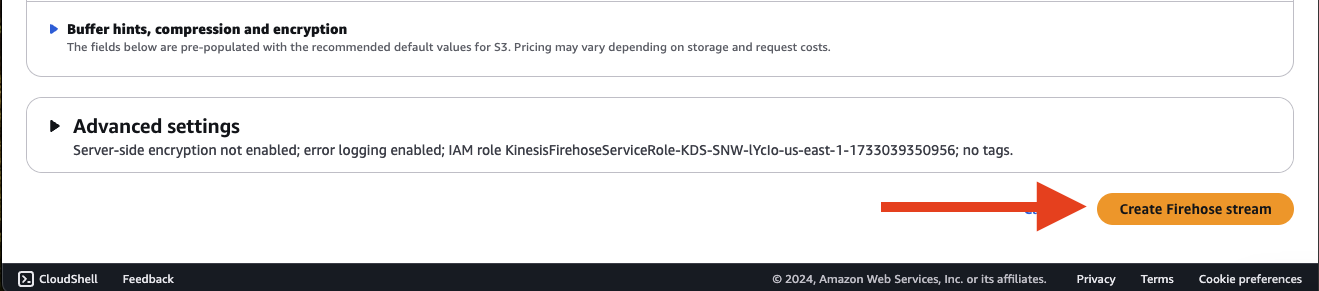

Finish by clicking create firehose. click create

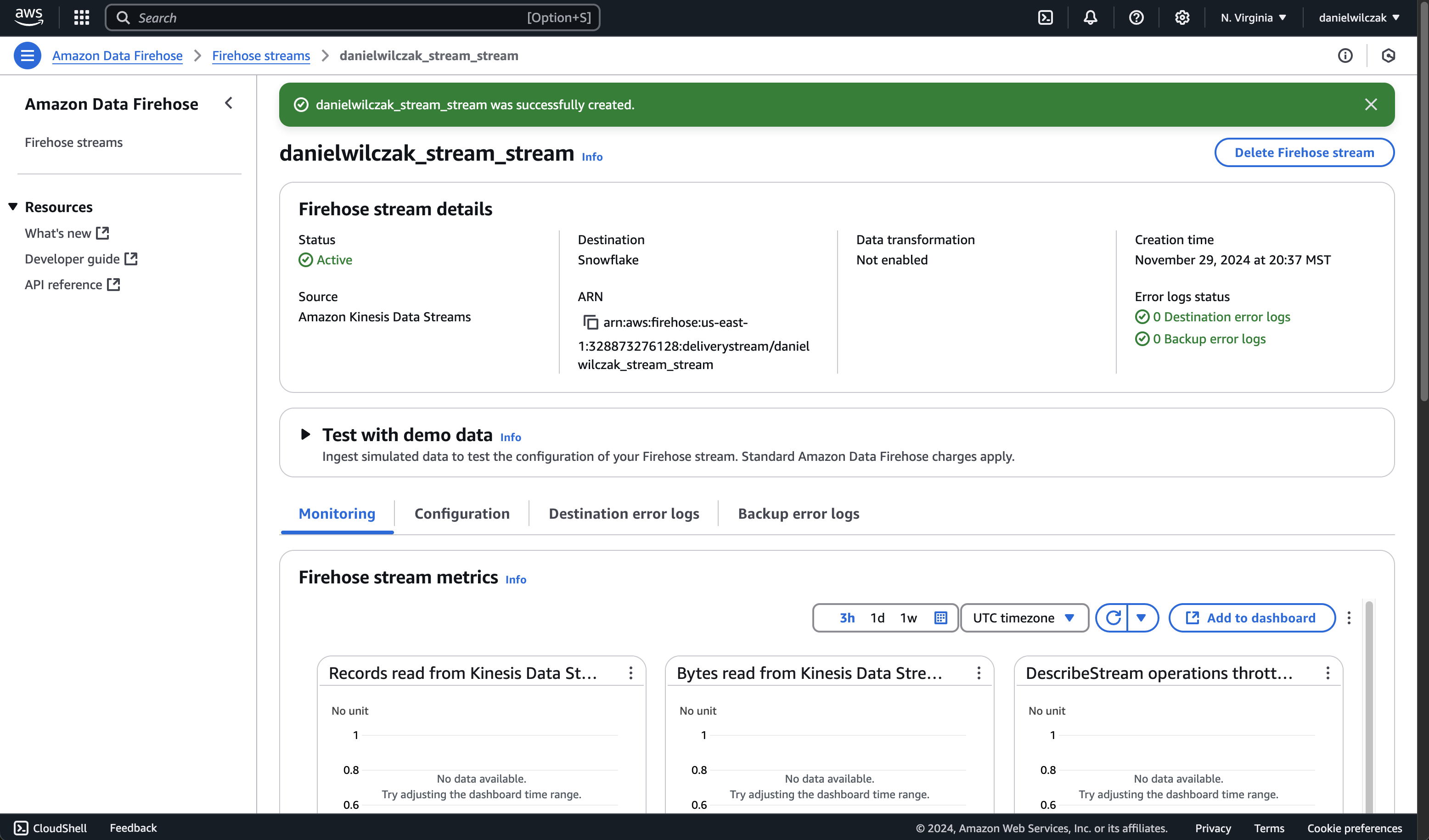

Finished our firehouse setup and ready to have data moved to Snowflake. finished firehose setup

AWS User / Access Key

Now for our data generator to be able to connect we'll need a AWS user, credentials to work with kinesis and an access key/secret. In this setup we will set that up.

User

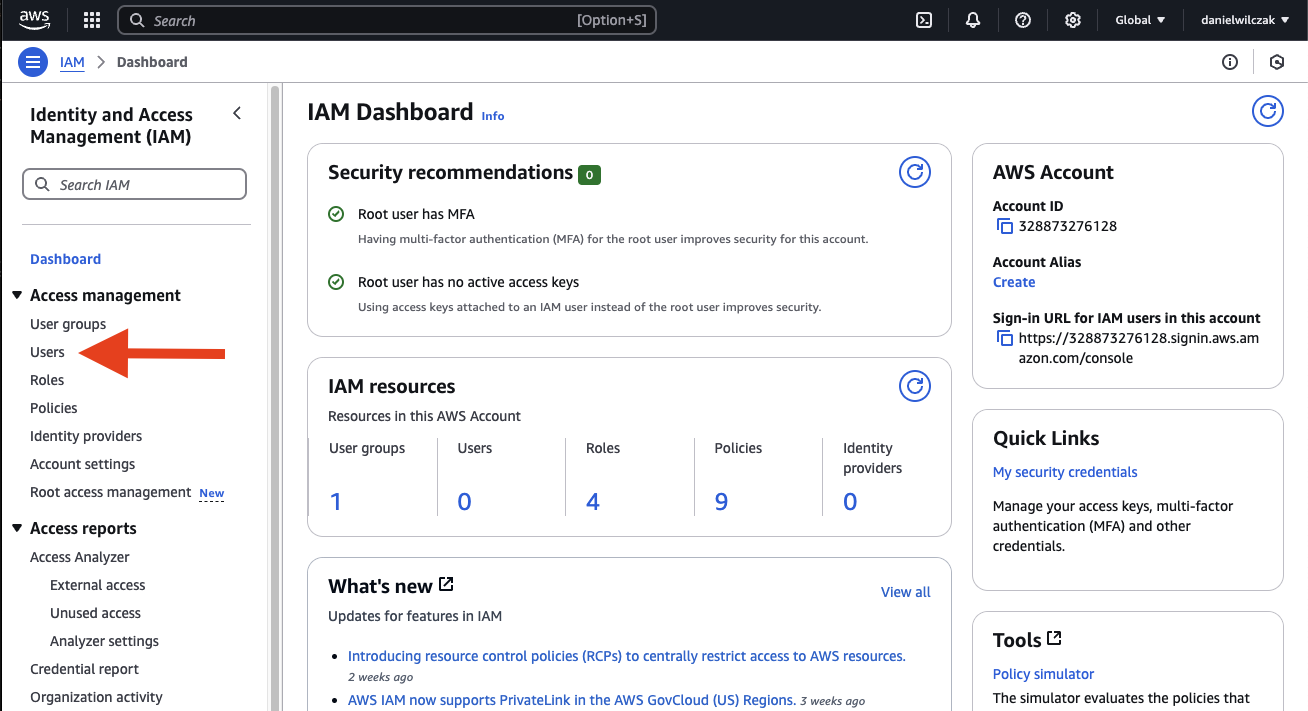

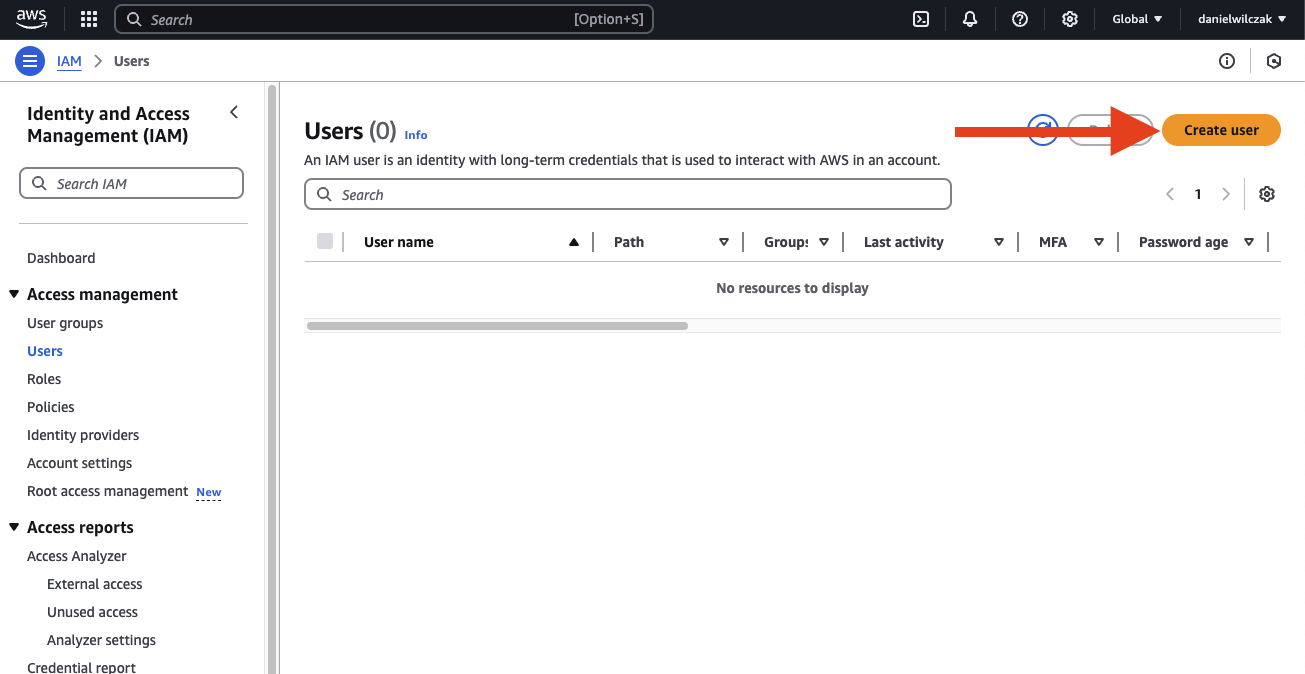

Lets start by searching IAM and the going to users. Users

Click create a new user. create user

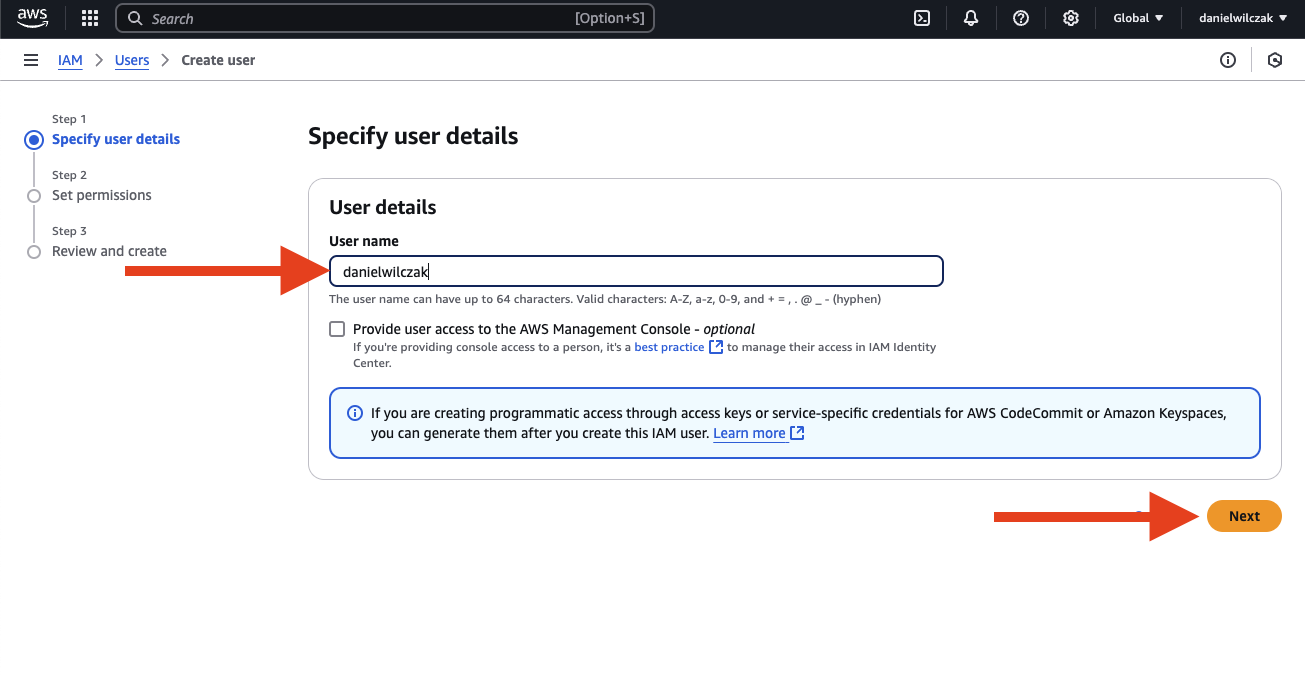

Give your user a name and click next. name

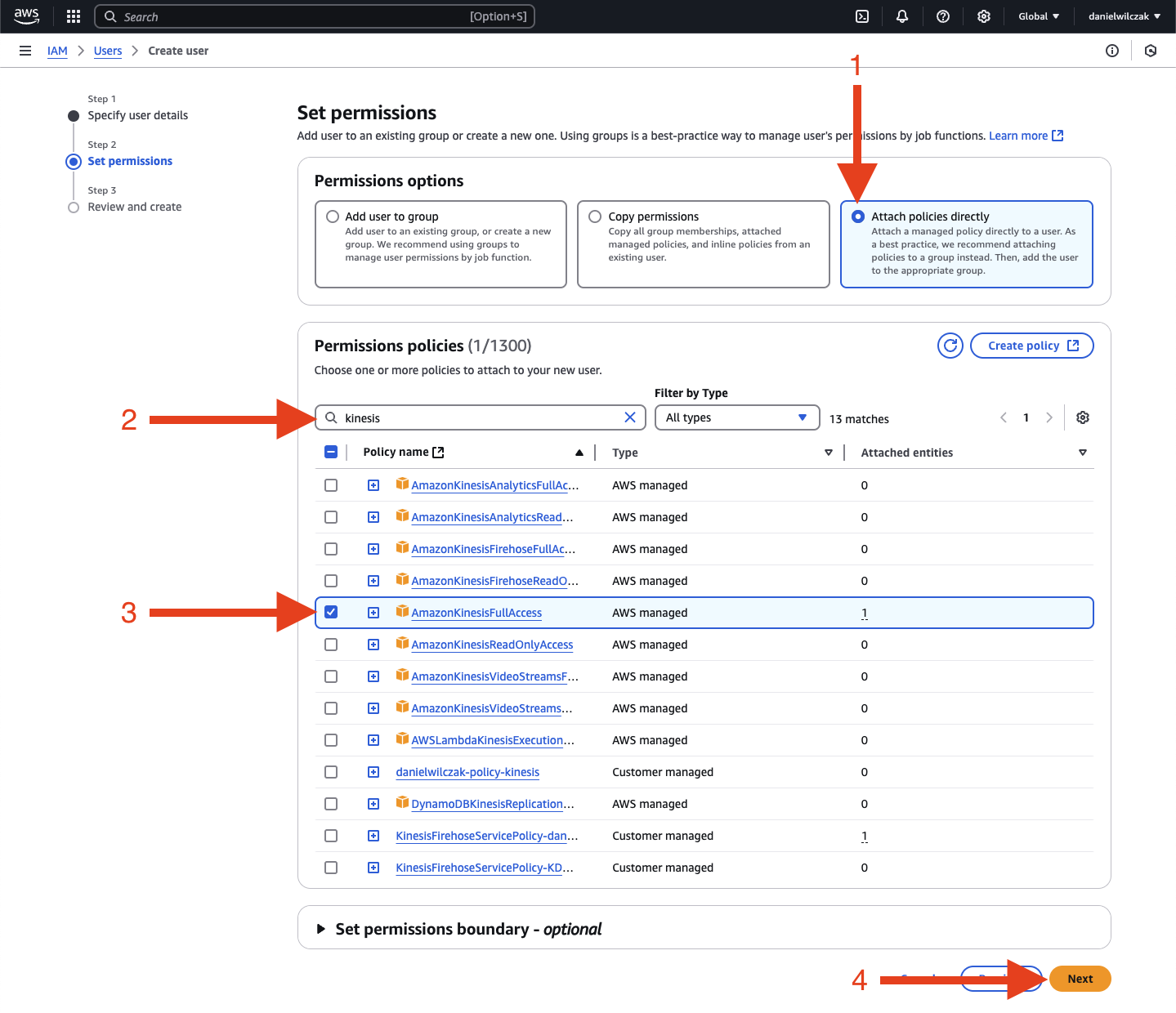

We need to attach a policy directly. Search for "Kinesis" and select AmazonKinesisFullAccess. This policy grants the permissions needed to push data to the stream. Once selected, click Next to proceed. policy

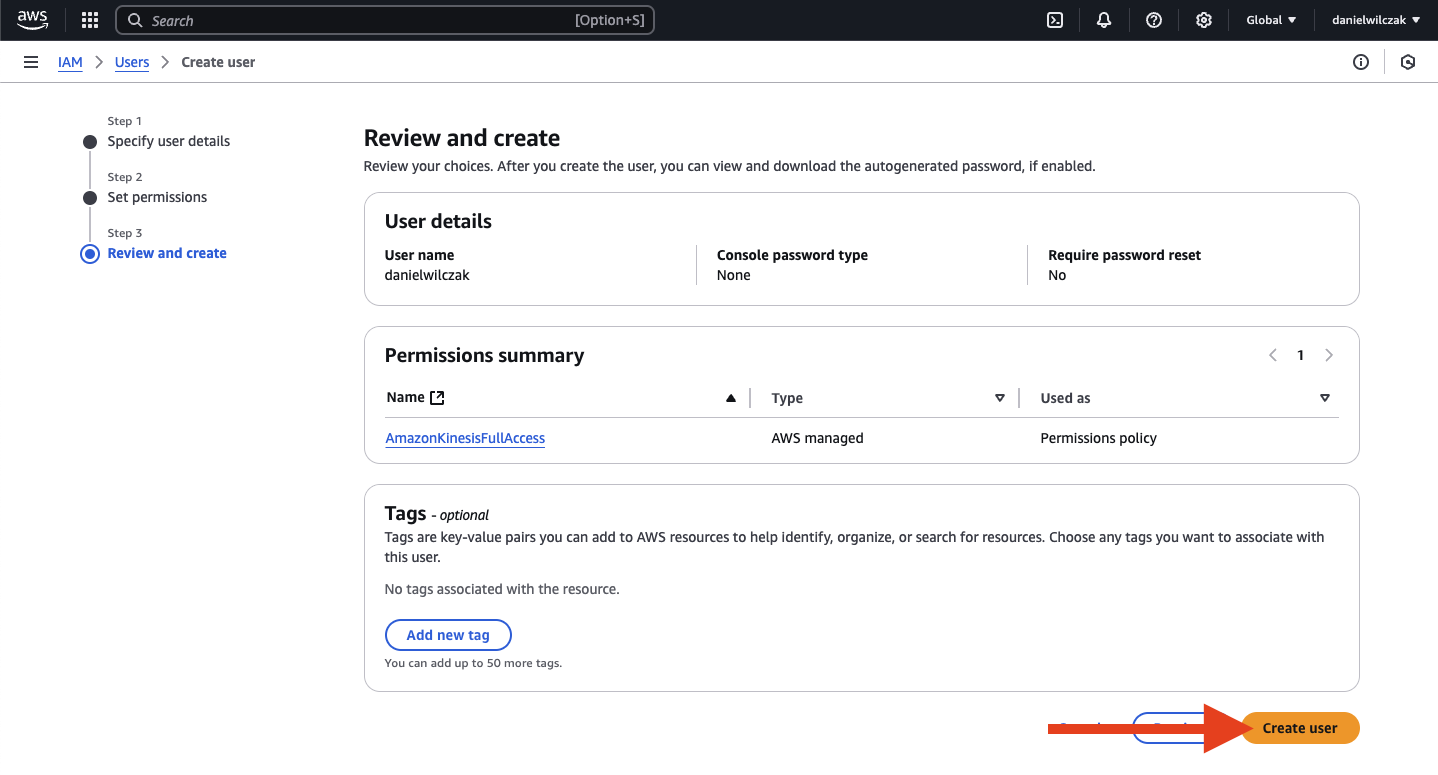

Click create user. create

Access Key

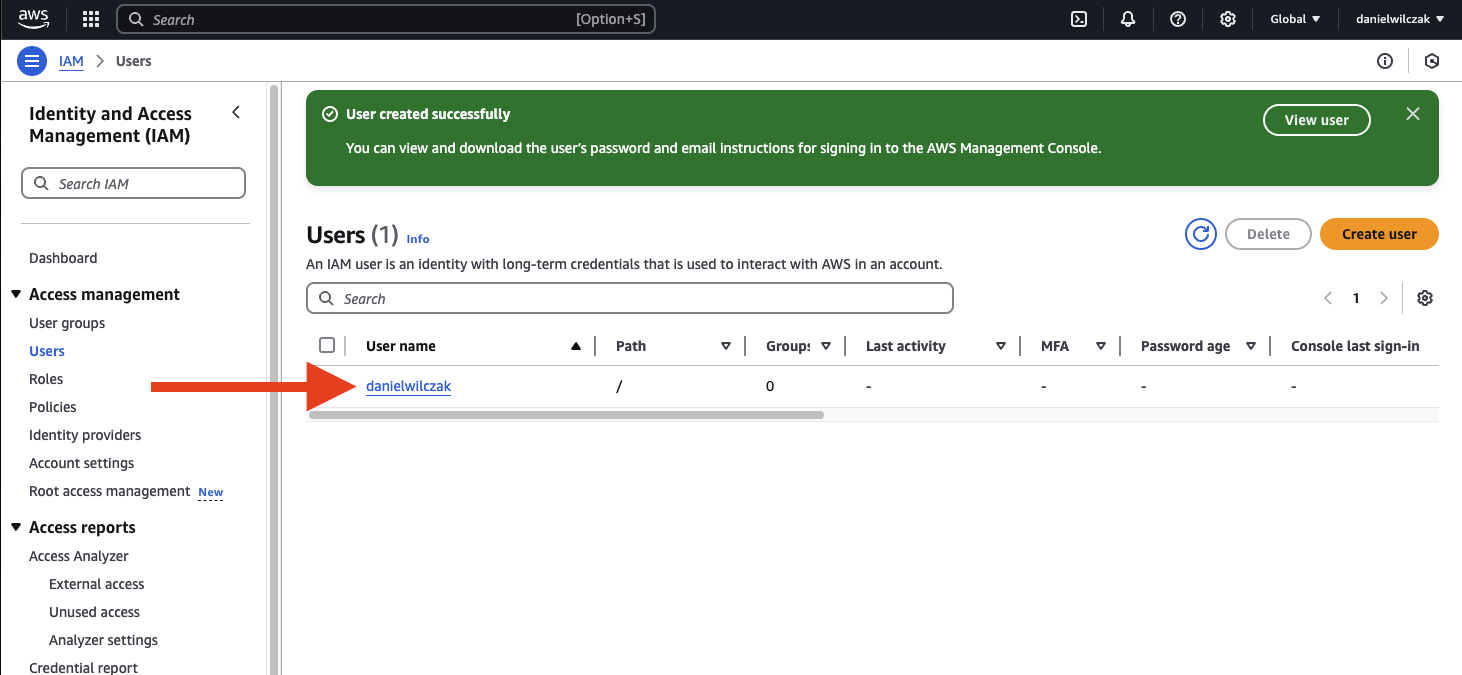

After the user is created we'll select it by clicking on it's name. select user

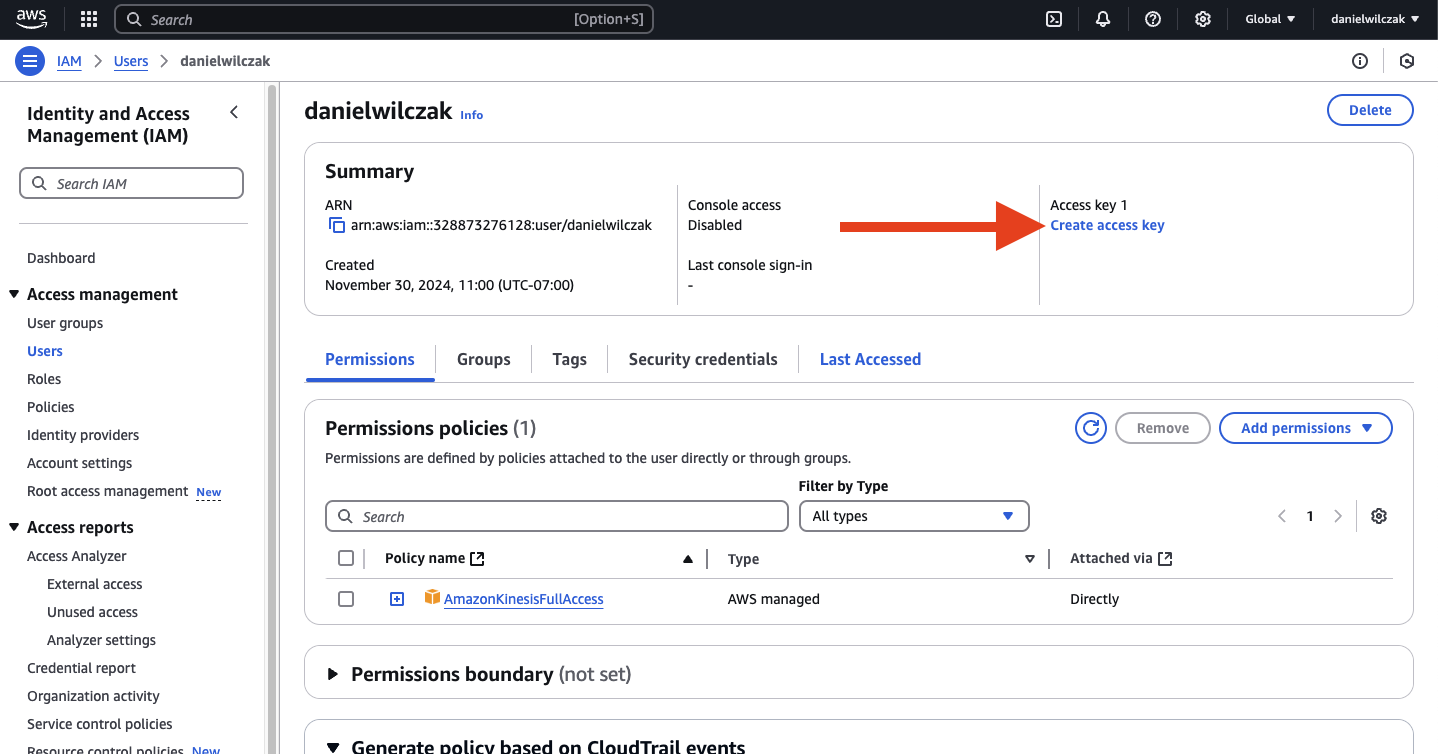

We'll want to create a access key by clicking "Create access key". select create key

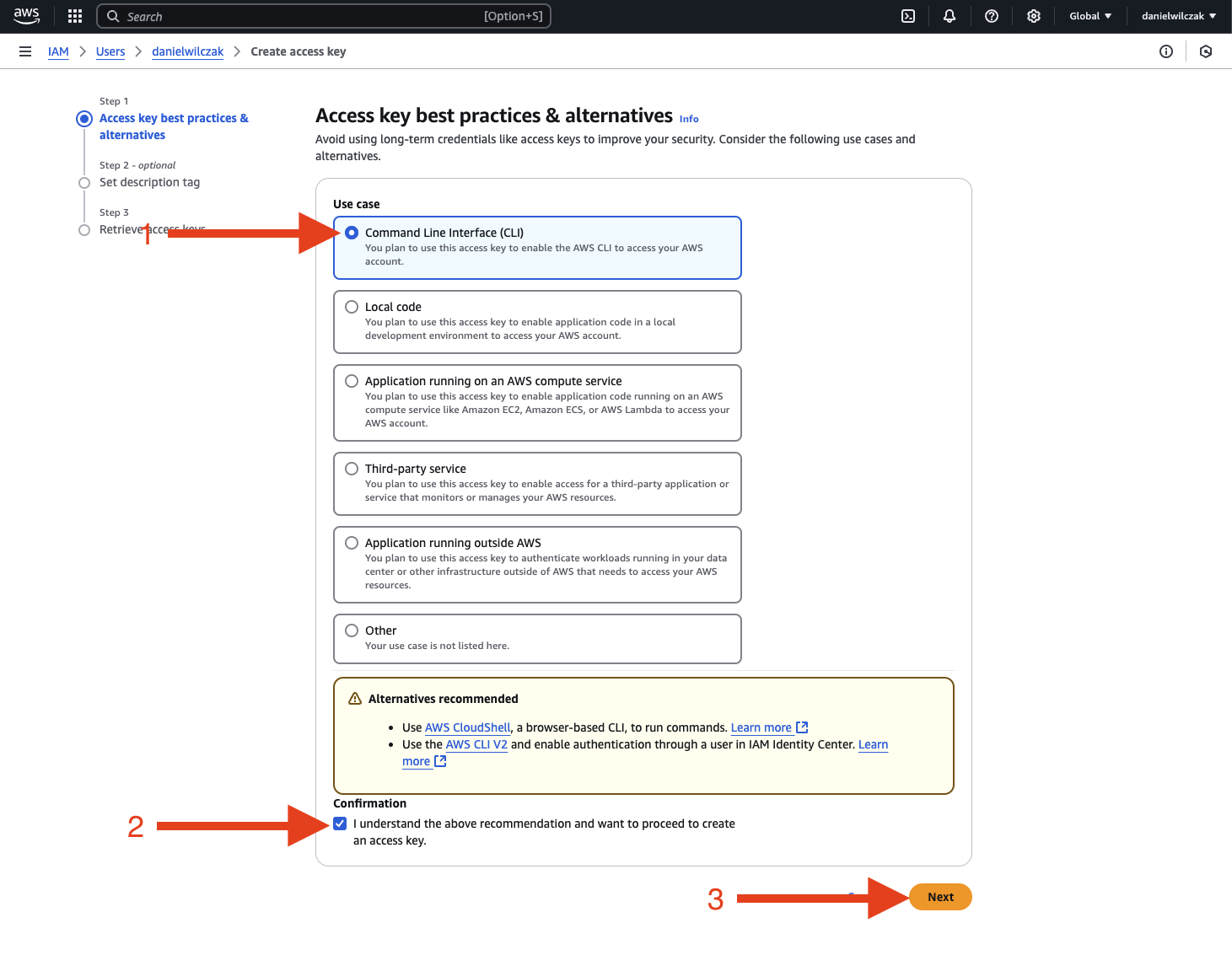

The key will be used for the CLI. CLI

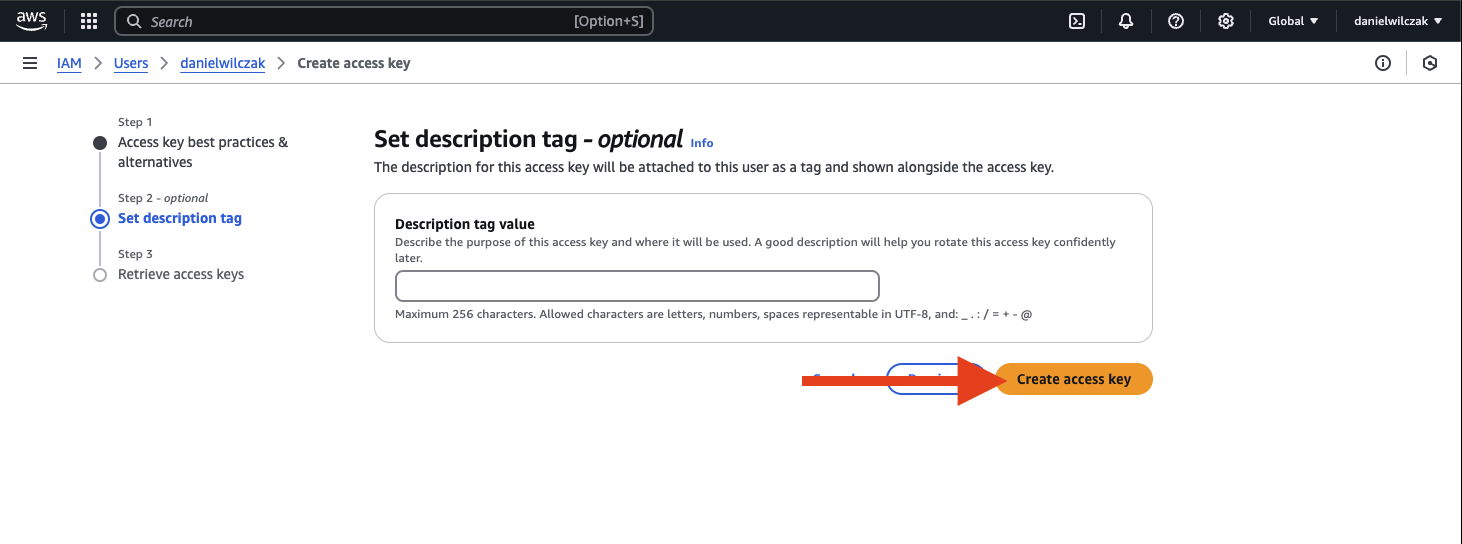

Click create access key. click access key

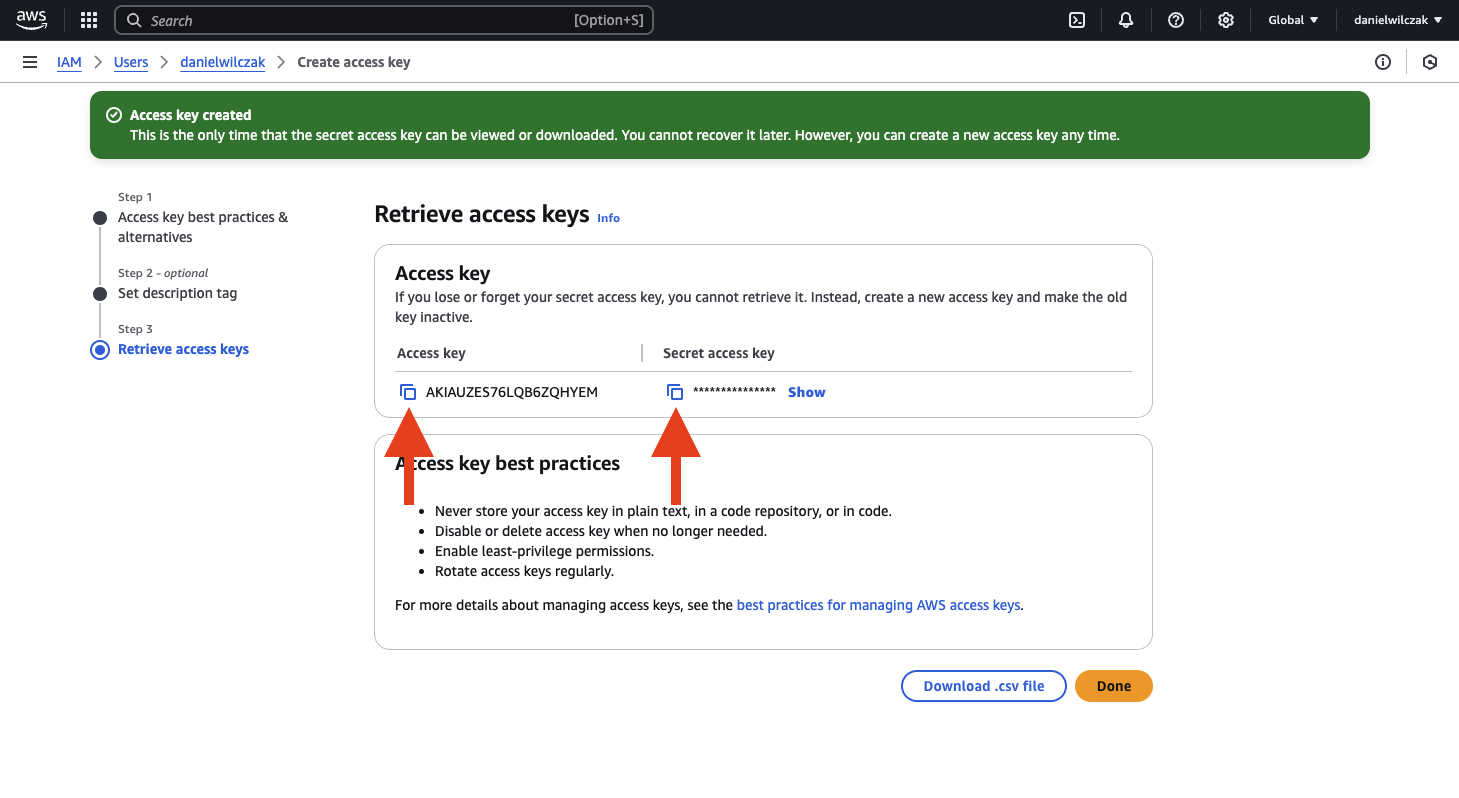

Now we'll want to copy our access key and secret access key, so we can put it into our CLI configuration in the next step. start

AWS CLI Setup

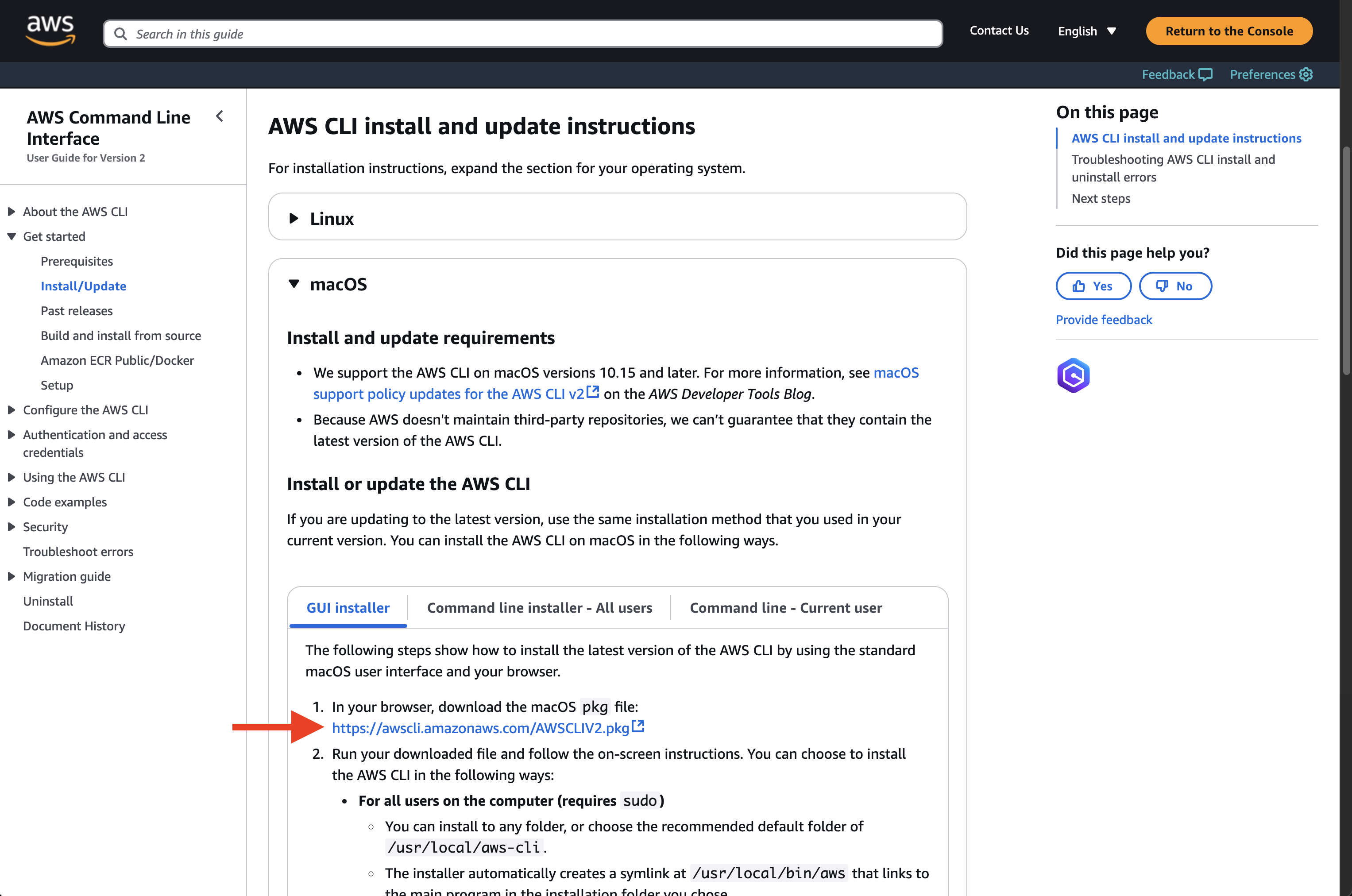

In this section we'll setup the AWS SLI to be able to connect to our stream via python. I suggest using the GUI installer for this example.

https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

Click, download the cli and install it. It's pretty straight forward. Two keys

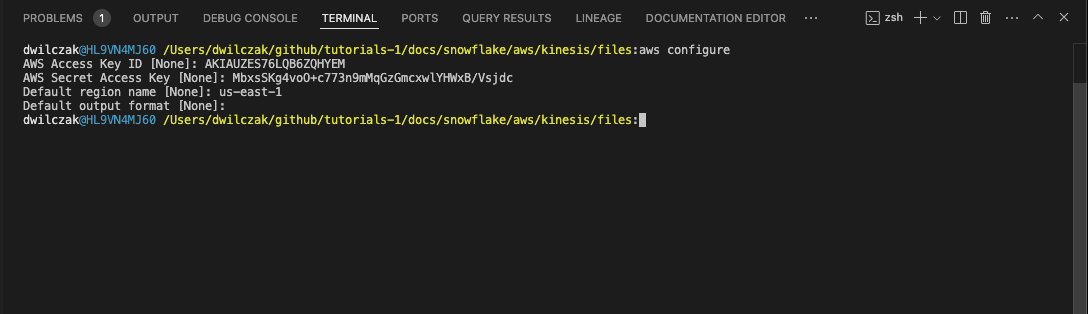

Once installed well want to call and fill in the questions:

1
aws configure

1
2
3
4
5
dwilczak /snowflake/aws/kinesis/files:aws configure
    AWS Access Key ID [None]: AKIAUZES76LQB6ZQHYEM
    AWS Secret Access Key [None]: MbxsSKg4voO+c773.....cxwlYHWxB/Vsjdc
    Default region name [None]: us-east-1
    Default output format [None]:

Two keys

Python data generator

Now we are ready to start generating the data that will be passed to kinesis and then loaded into our Snowflake table. We'll want to open the folder of the files we downloaded at the start of the tutorial.

Lets start by updating our code to use the stream we setup at the beginning. Inside our main.py we'll update:

1
StreamName="<YOUR KINESIS STREAM NAME>",  # Name of the Kinesis stream

1
StreamName="danielwilczak_stream",  # Name of the Kinesis stream

Next we'll want to run that code to start generating the data which will be moved to Snowflake.

1
2
3
4
python -m venv venv
source venv/bin/activate
pip install -r requirements.txt
python main.py

1
2
3
4
5

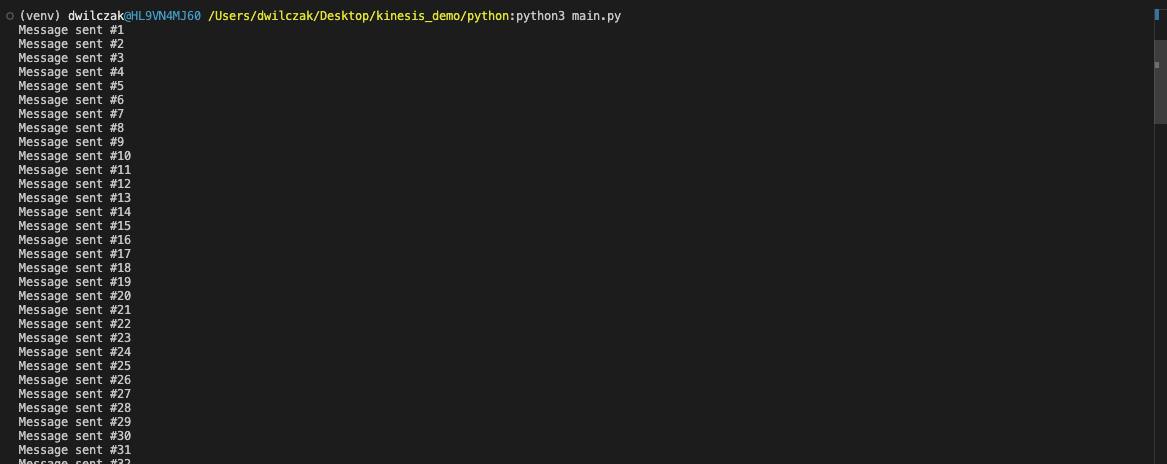

Message sent #1
Message sent #2
Message sent #3
Message sent #4
...

We will be able to see the messages being sent to kinesis. Now we should start seeing our data being move to Snowflake. If you don't check your firehose logs. You might have a connection issue. Two keys

Result

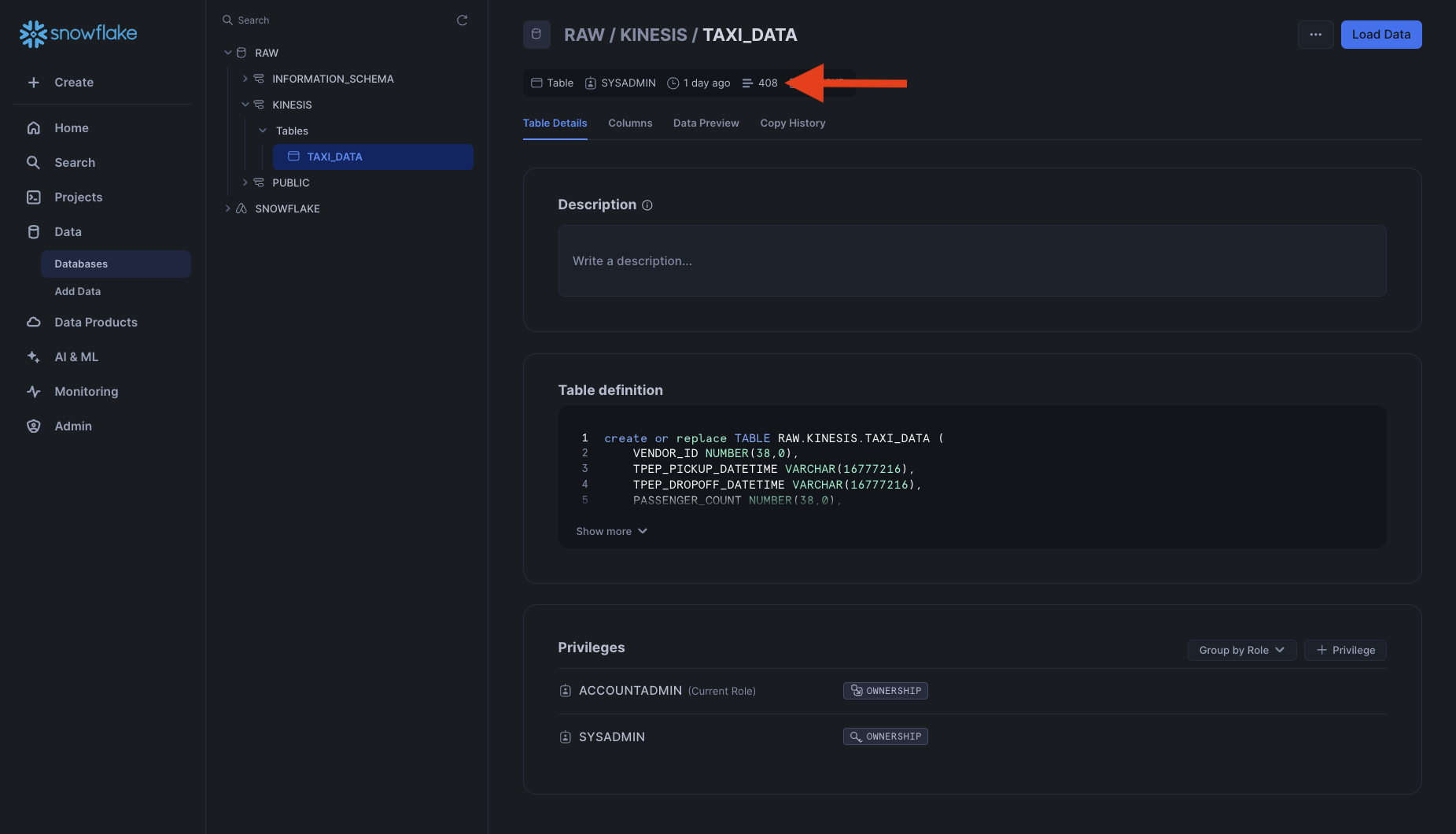

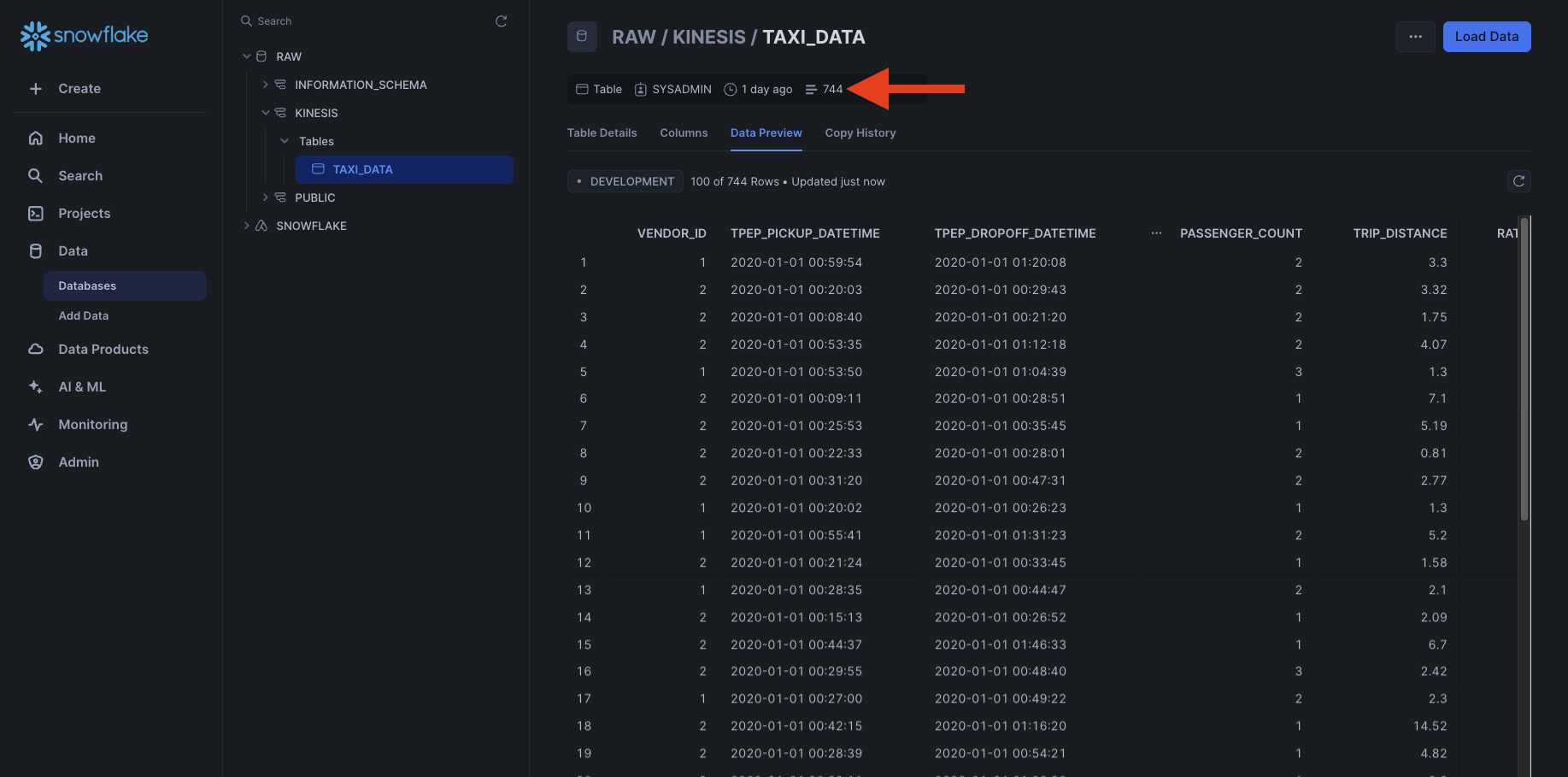

Now we should see our data being loaded into Snowflake. Two keys

If we refresh our page we'll see new records being streamed into our table. Two keys
