Azure (SSO) to Snowflake

In this tutorial we will show how to setup authentication to Snowflake using SSO with Azure Microsoft Entra ID Identity Provider which used to called Azure Active Directory.

Video

Azure

Lets start in azure by setting up the SSO and then adding the users to the approved list.

Setup

Lets start in azure by logging into our azure and navigate to Microsoft Entra ID. Microsoft entra ID

Next lets click on Enterprise Applications on the left navbar. Microsoft entra ID

Click on new application. New application

In the Browse Azure AD Gallery search bar, search for Snowflake, and choose Snowflake for Microsoft Entra ID application. Snowflake application

Give your Snowflake application a name, then click the Create button at the bottom. Name application

Once the application is created, on the left side choose Single sign-on, then choose SAML in the middle panel. SAML

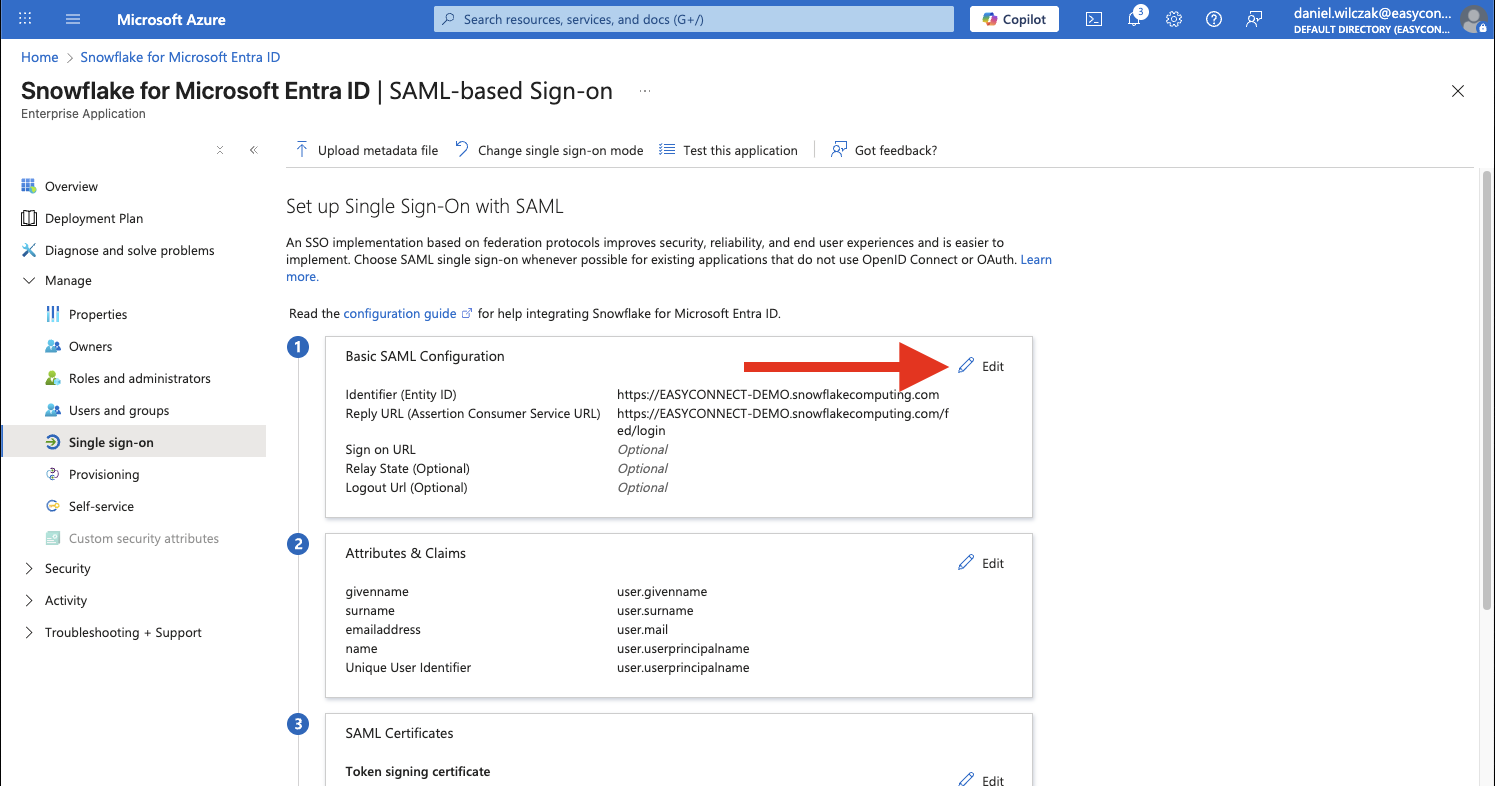

In the middle pane under the Basic SAML configuration section, click the Edit button. Edit SAML config

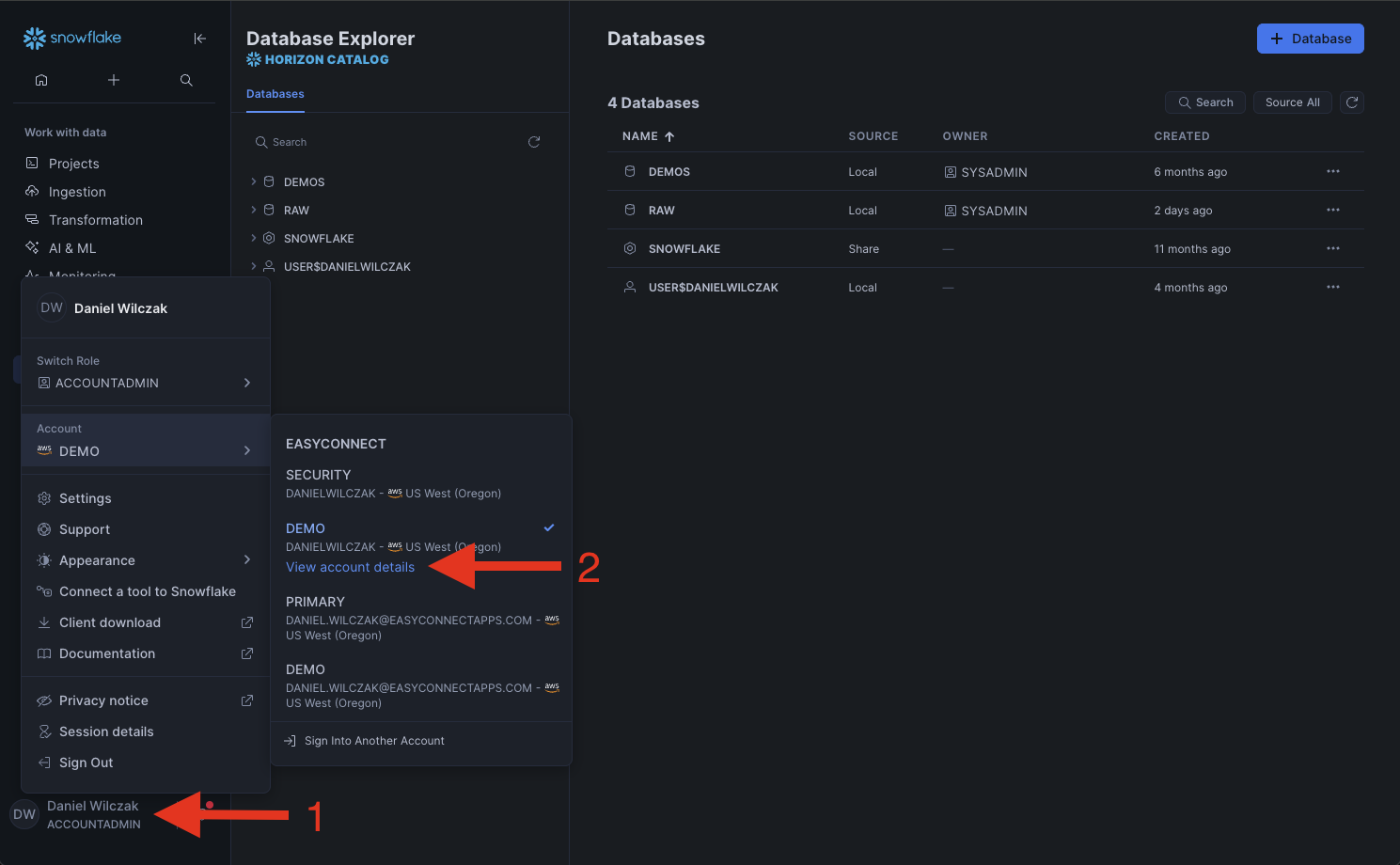

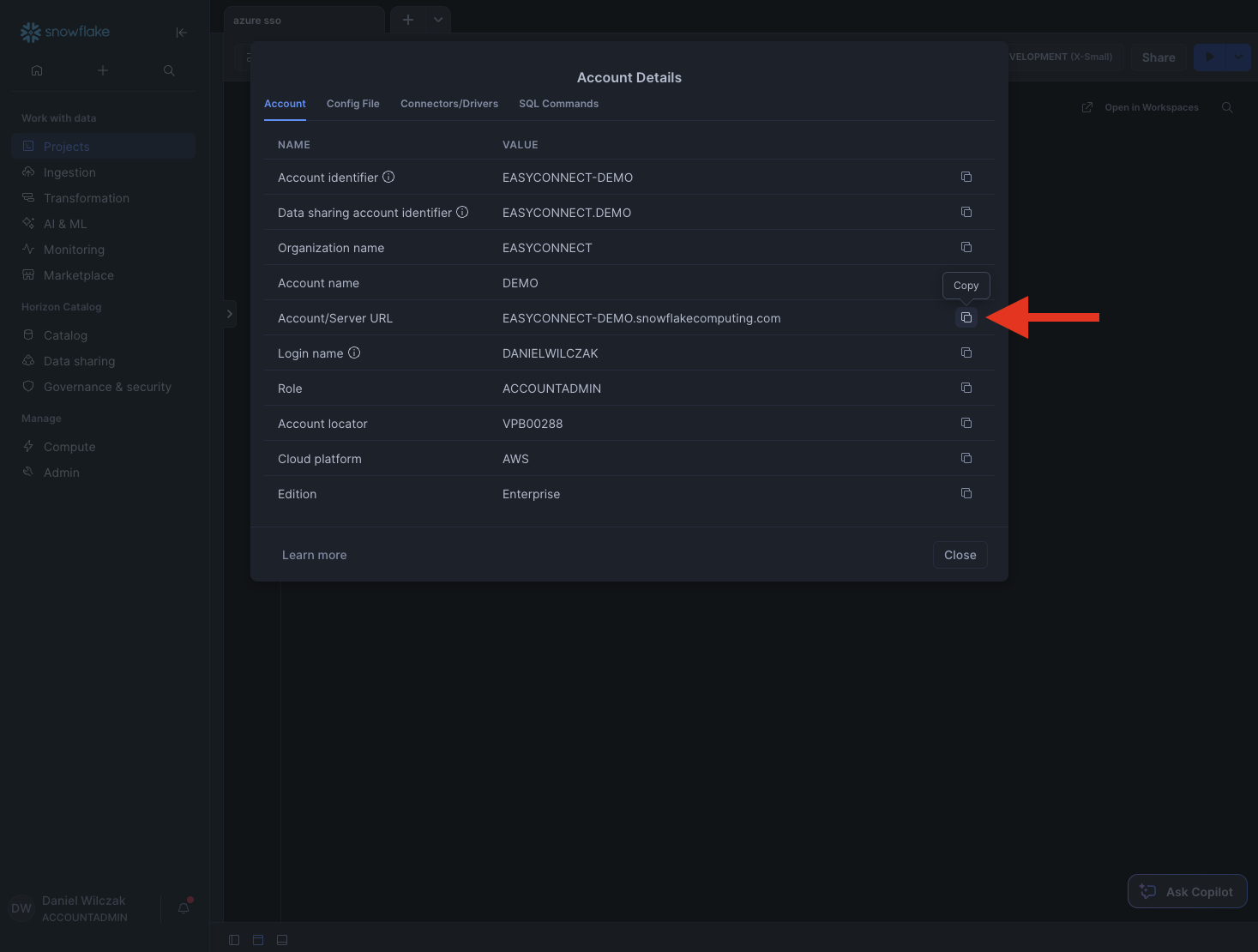

Next we'll want to get our Snowflake account identifier url. An example can be seen below that comes from AWS US West (Oregon) or you can use this chart (1).

  1. URL type URL format
    Regional https://locator.region.snowflakecomputing.com
    Organization https://organization-name.snowflakecomputing.com
    Connection https://organization-connection.snowflakecomputing.com
    Regional Privatelink https://locator.region.privatelink.snowflakecomputing.com
    Organization Privatelink https://organization-name.privatelink.snowflakecomputing.com
    Connection Privatelink https://organization-connection.privatelink.snowflakecomputing.com

Snowflake URL

Warning

If you format your URL incorrectly the SSO login will not work. Please read the Account Identifiers documentation to learn how to format your URL based on your snowflake service provider and server location.

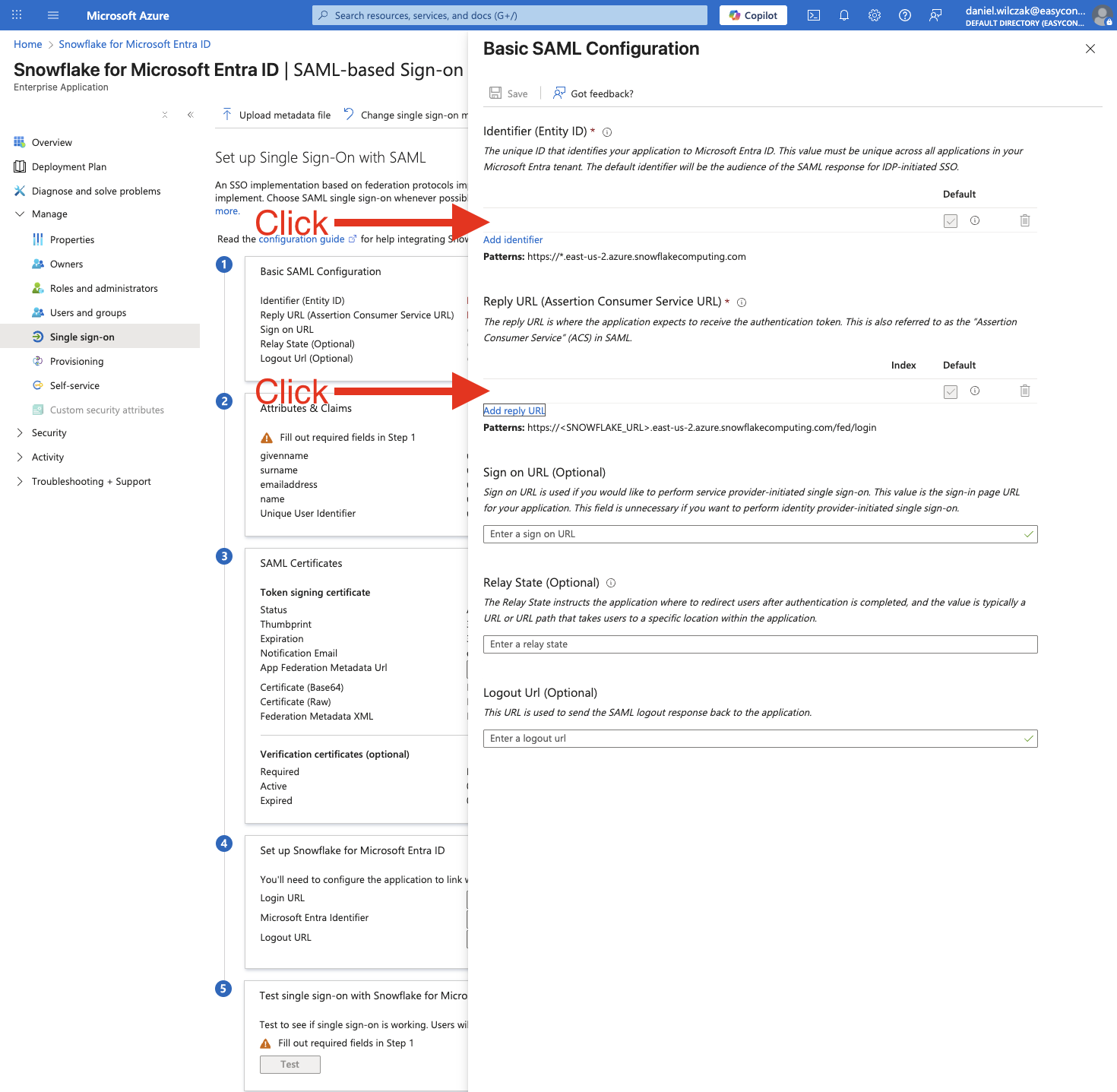

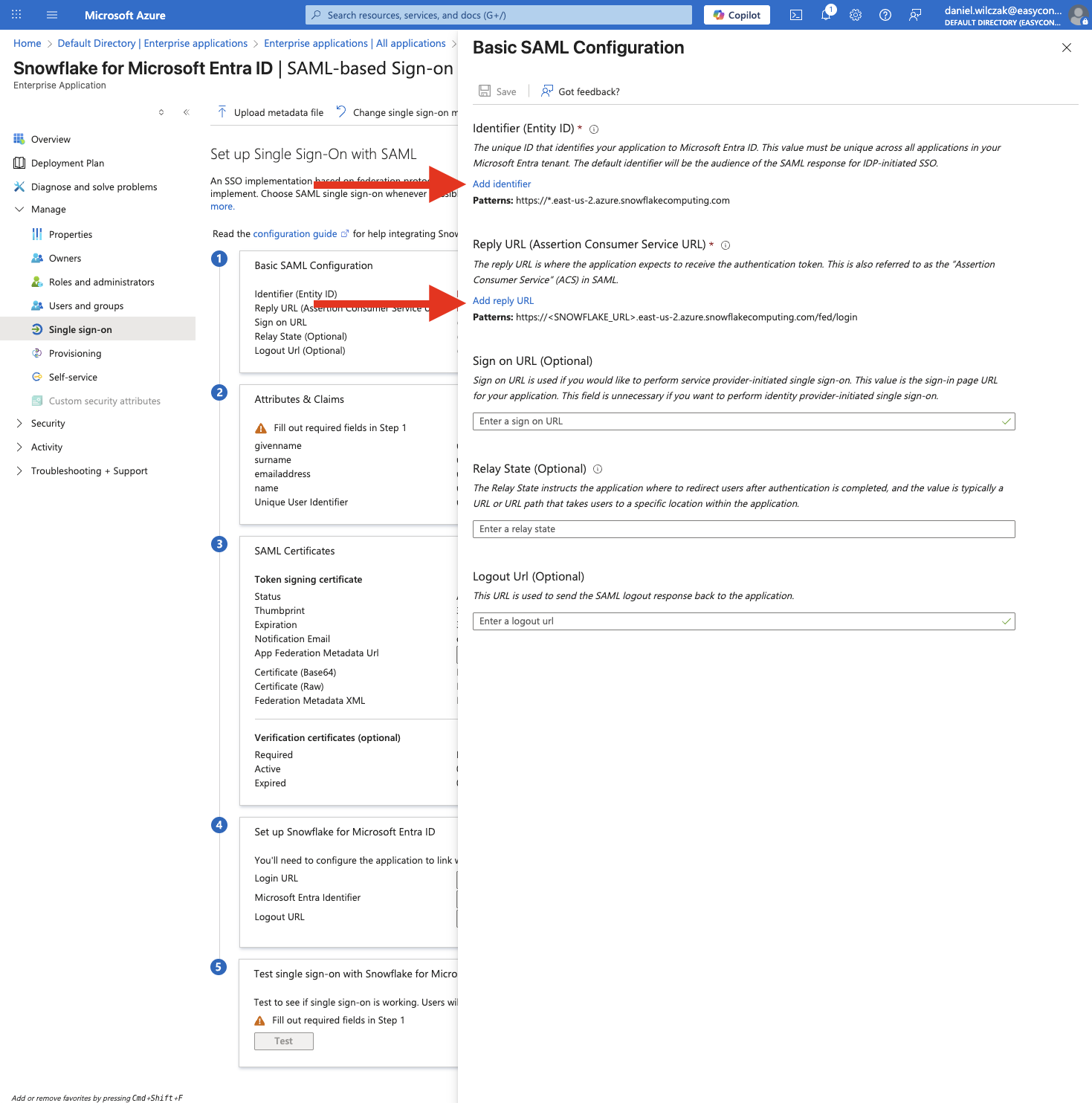

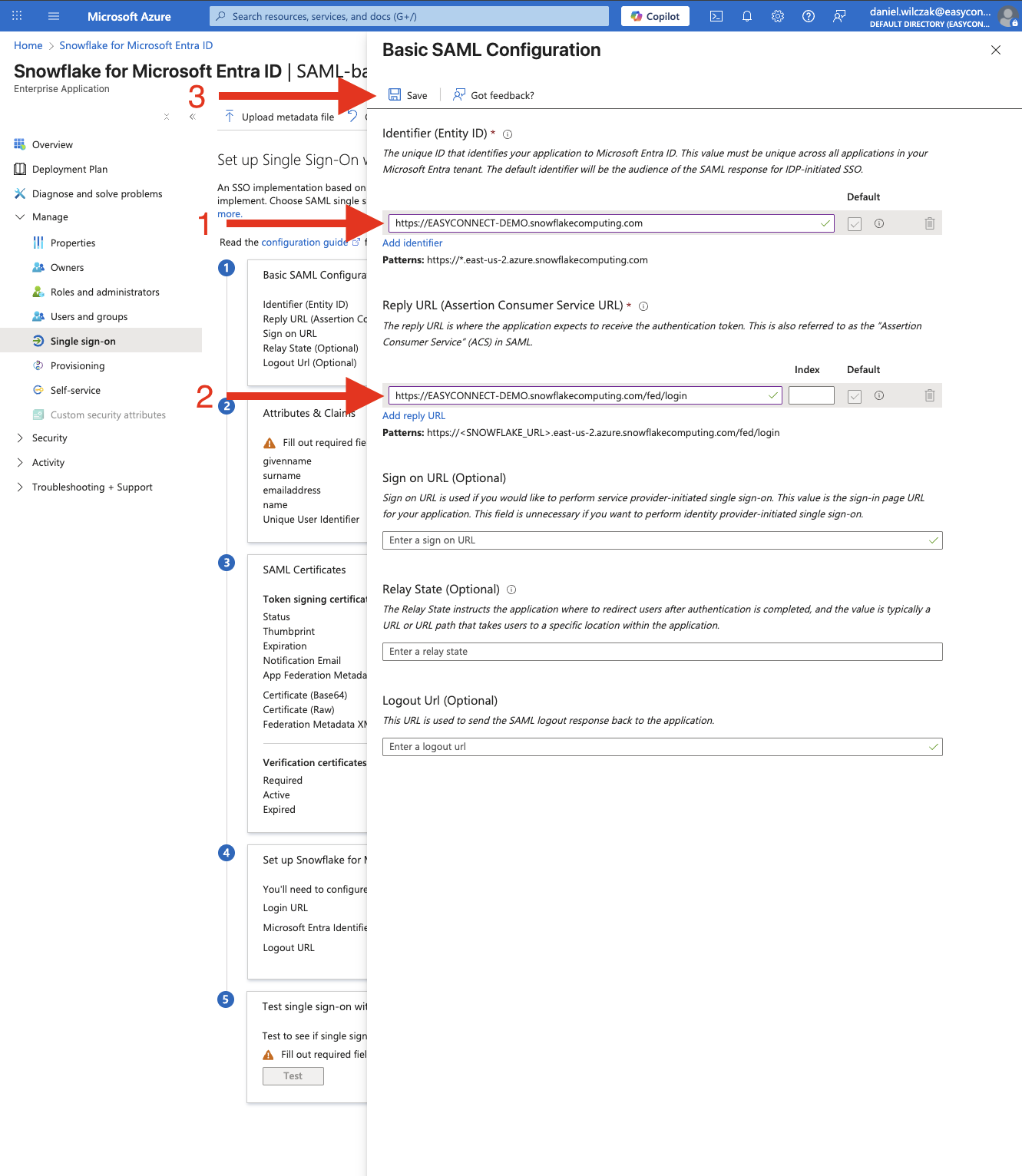

In the Basic SAML Configuration section, configure your Identifier (Entity ID) with your snowflake account identifier URL and also again for your Reply URL (Assertion consumer service URL) but follow it with /fed/login and click save. Edit SAML config

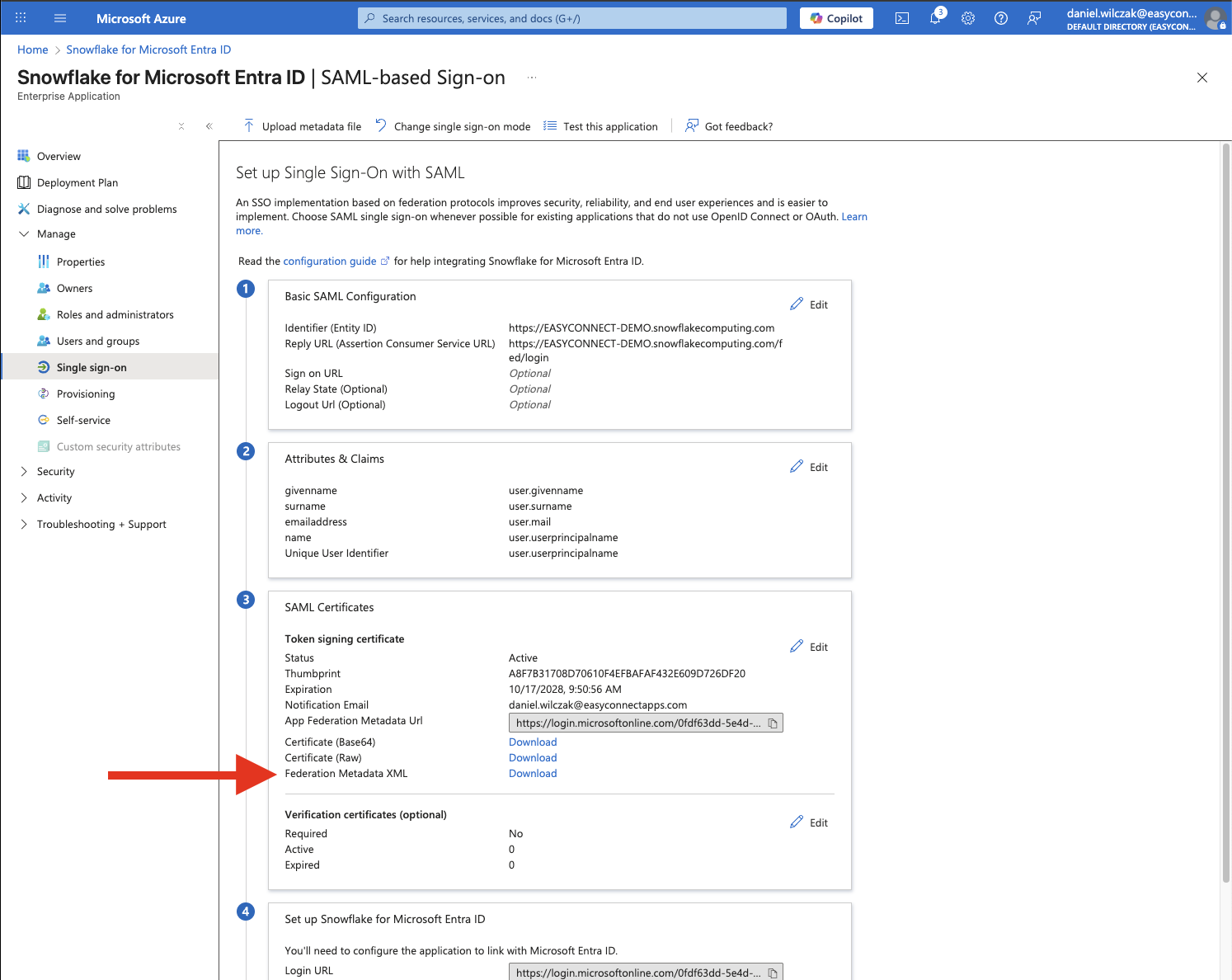

Go back to the application's SAML-based Sign-on page, scroll down to the SAML Certificates section. Download the Federation Metadata XML. We will use this file in our Snowflake steps. Download federation metadata XML

Add users

Warning

If you don't add the user in the Azure AD group they will not be able to use the SSO login on Snowflake.

Lets add users into the azure AD group for the application. First click on "Users and groups" on the left side navbar and then "add user/group". Navigate to users and groups

Select Users and groups. Select users and groups

Select the user or groups you want to add. The search bar can be very helpful when you have alot of users/groups. Select

Finally click assign. Click assign

Snowflake

Next we will setup Snowflake with the information we got from our federation metadata xml file. To make this process easier I suggest formatting your XML file so it's easier to look through. I used VS code and an xml formatter to accomplish this. Once you have the file open in vs code and the xml extension installed, select all the code and right clicl -> "Format Document".

Setup

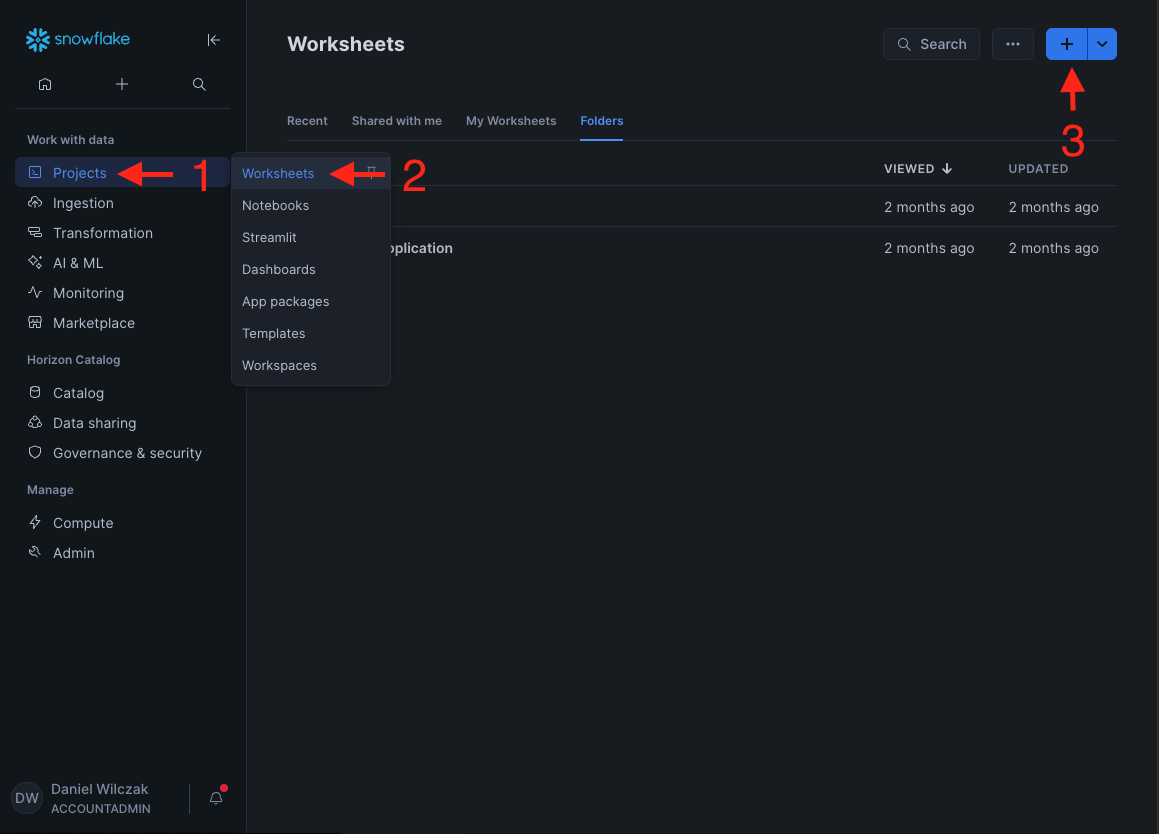

Lets open a worksheet in snowflake and enter the code below by entering in the necessary areas from our federation metadata xml file..

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
use role accountadmin;
create security integration azureadintegration
    type = saml2
    enabled = true
    saml2_issuer = 'https://sts.windows.net/[...]]/'  /* (1)! */
    saml2_sso_url = 'https://login.microsoftonline.com/[...]/saml2' /* (2)! */
    saml2_provider = 'CUSTOM'
    saml2_x509_cert = '<idp certificate>'  /* (3)! */
    saml2_sp_initiated_login_page_label = 'AzureADSSO'
    saml2_enable_sp_initiated = true;

  1. <EntityDescriptor ID="_8416250f-50fb-...8bcd335e92" entityID="https://sts.windows.net/9a2d78cb-73...fc1ac5ef57a7/" xmlns="urn:oasis:names:tc:SAML:2.0:metadata">

  2. <SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="https://login.microsoftonline.com/9a2d78c...-fc1ac5ef57a7/saml2" />

  3. <X509Certificate> MIIC8DCCAdigAwIBAgIQQH4r9rnBiKlPEFVEjpdNhTANBgkqhkiG9w0BAQ ....... Y9B1uSBpb4OmtWZ/LRNzHBDcDNbR oQ6PiPd2yWhtUfbYClOoNcMFOkk8E </X509Certificate>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
use role accountadmin;
create security integration azureadintegration
    type = saml2
    enabled = true
    saml2_issuer = 'https://sts.windows.net/9a2d78cb-73e9-40ee-a55...1ac5ef57a7/'
    saml2_sso_url = 'https://login.microsoftonline.com/9a2d78cb-73e...ac5ef57a7/saml2'
    saml2_provider = 'CUSTOM'
    saml2_x509_cert = 'miic8dccadigawibagiqqh4r9rnbiklpefvejpdnhtanbgkqhkig9w0baqsfada0mtiwmaydvqqdeylnawnyb3nvznqgqxp1
    ......
    oq6pipd2ywhtufbyclooncmfokk8e6n48t33kivtvurwwta52olbt2eorzbvwaglt8dlkfhpzzd0szfystjyvd5k2tezsqy8hqlfh33m6+sa2e74x1yj'
    saml2_sp_initiated_login_page_label = 'AzureADSSO'
    saml2_enable_sp_initiated = true;
status
Integration AZUREADINTEGRATION successfully created.

Success

If you configured the Basic SAML configuration in the azure section using the Regional Locator Snowflake URL (1), you can move on to the next step by adding users and testing your login.

  1. This is an example of a regional locator URL: https://mbb41651.snowflakecomputing.com/
If you've chosen to use a different URL format then regional locator

If you've chosen to use a different URL format such as Organization, Connection or one of the Privatelink URLs, follow the steps below.

Review the current integration configuration. Confirm the values of the SAML2_SNOWFLAKE_ACS_URL and SAML_SNOWFLAKE_ISSUER_URL parameters are using the Regional Locator URL (1).

  1. This is an example of a regional locator URL: https://mbb41651.snowflakecomputing.com/
1
desc security integration azureadintegration;

If they are not, alter the security integration by using the code below.

1
2
3
4
5
6
7
8
9
use role accountadmin;

alter security integration azureadintegration
    set SAML2_SNOWFLAKE_ACS_URL = 'https://<organization name>-<account name>.snowflakecomputing.com/fed/login';

-- OR

alter security integration azureadintegration
    set SAML2_SNOWFLAKE_ISSUER_URL = 'https://<organization name>-<account name>.snowflakecomputing.com';

Notes:
- The above statement uses the Organization URL as an example. You should use the URL format the Azure Single sign on application was configured with.
- The value for the parameter SAML2_SNOWFLAKE_ACS_URL ends with /fed/login.
- The value for the parameter SAML2_SNOWFLAKE_ISSUER_URL is only the Snowflake account URL, in the format matching the Azure application configuration.

Add or modify users.

Warning

Your users must use their email for logging into Snowflake that matches in Azure AD or it will not work.

Note

If you already have users in Snowflake and they already are using their email for logging in then you can skip this section.

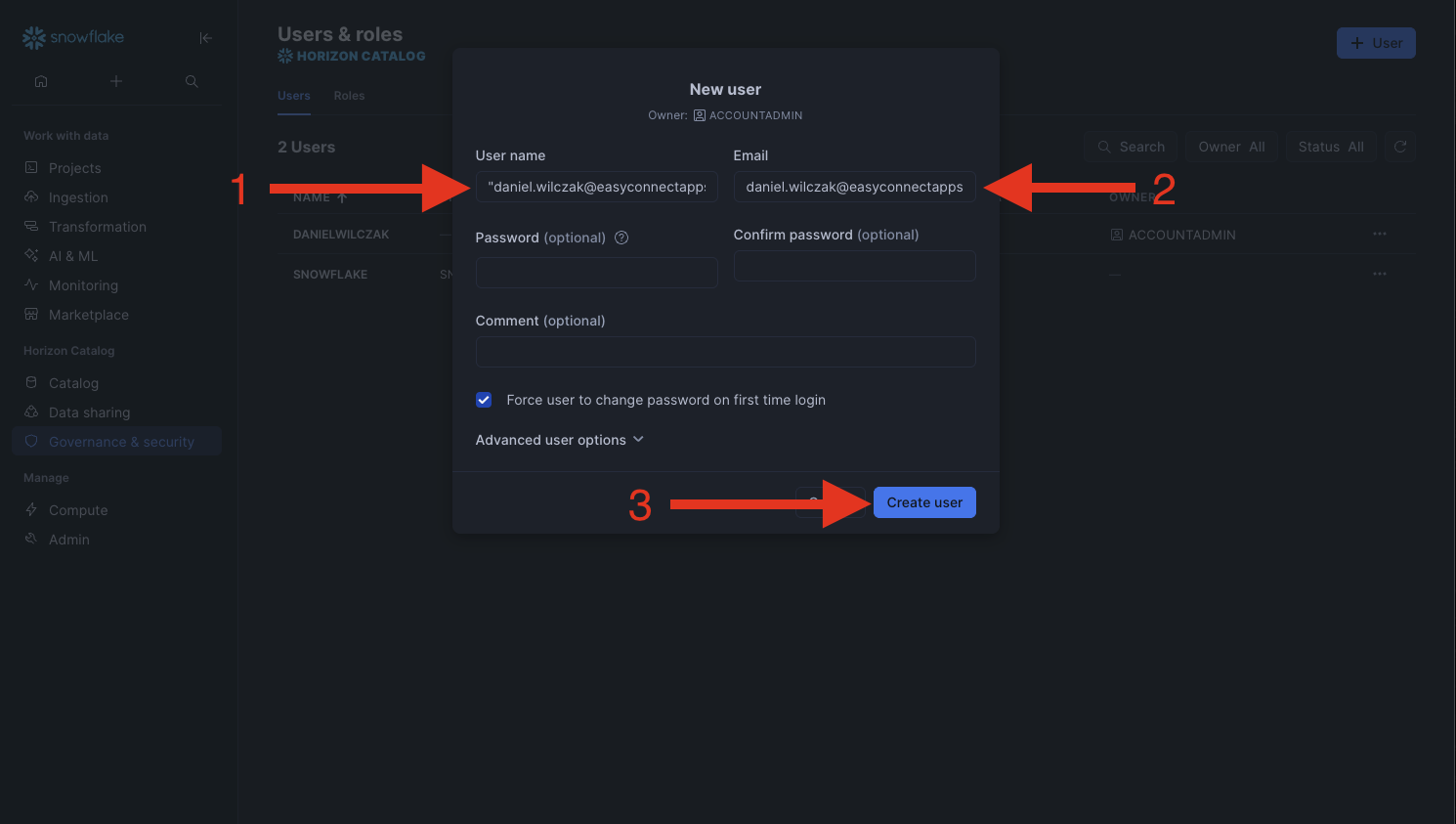

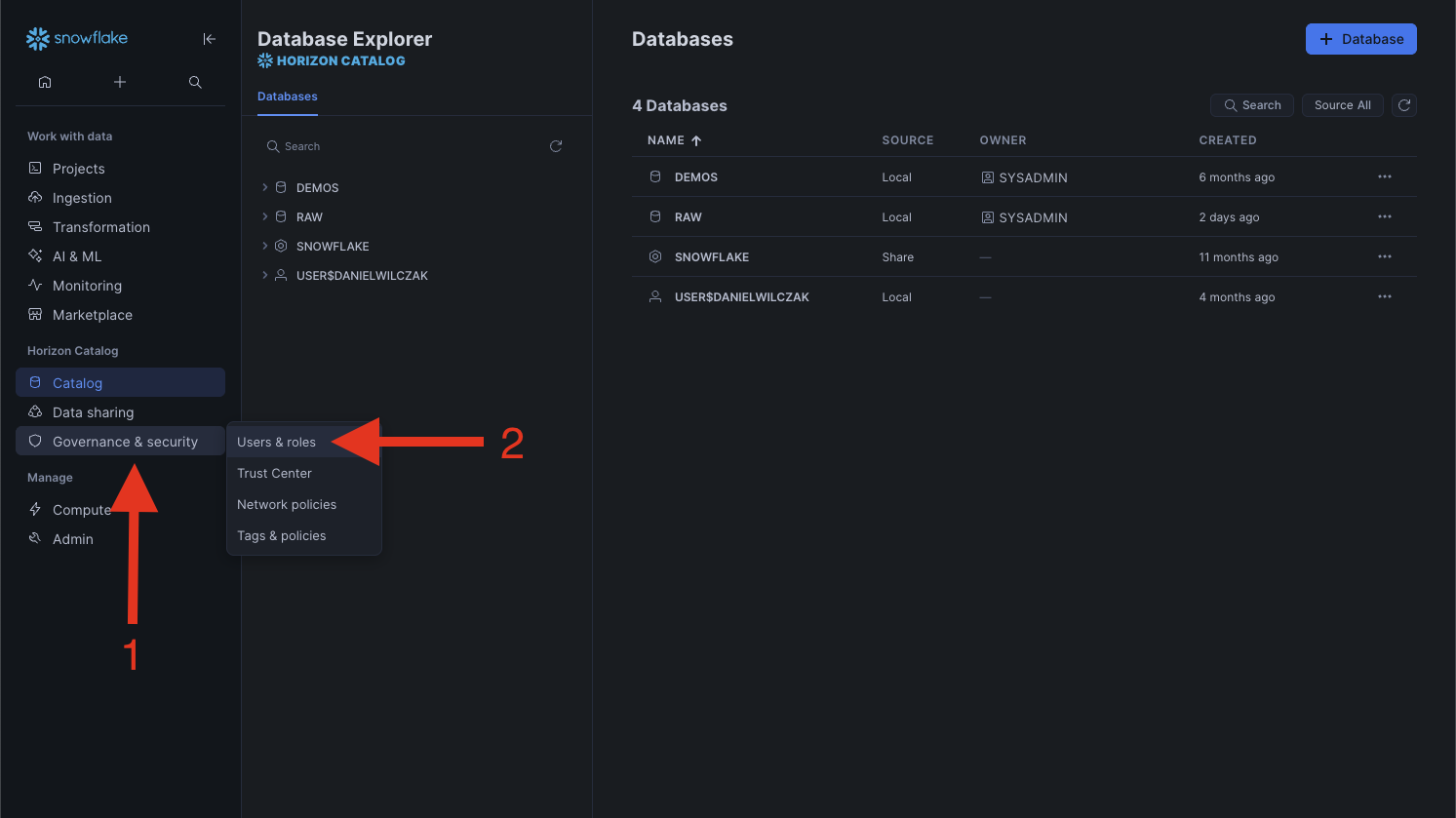

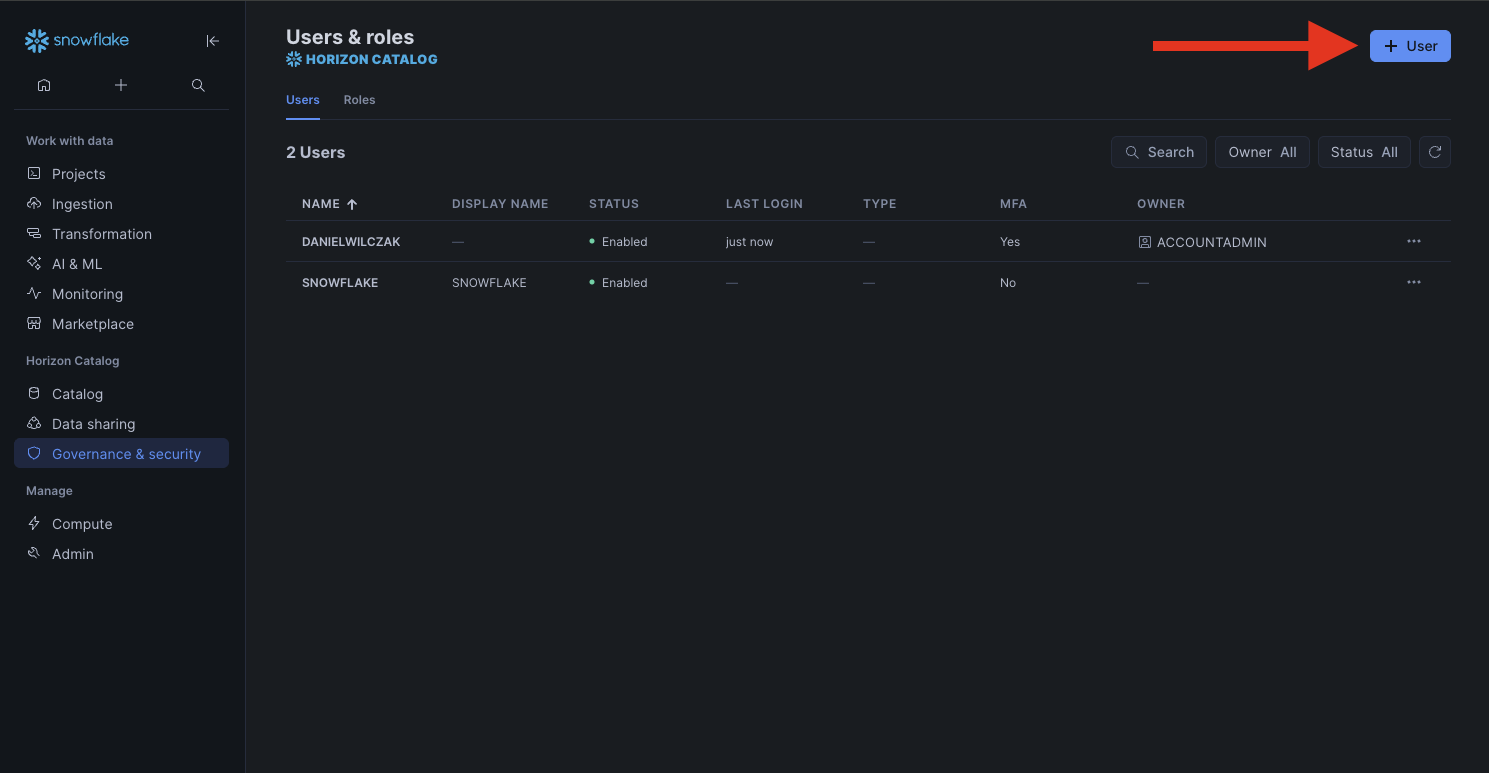

Lets add the user to snowflake using the users email. It is also suggested to give that user a role at this point.

1
2
3
use role accountadmin;

create user "<USER EMAIL>";

1
2
3
use role accountadmin;

create user "daniel.wilczak@snowflake.com";
status
User daniel.wilczak@snowflake.com successfully created.

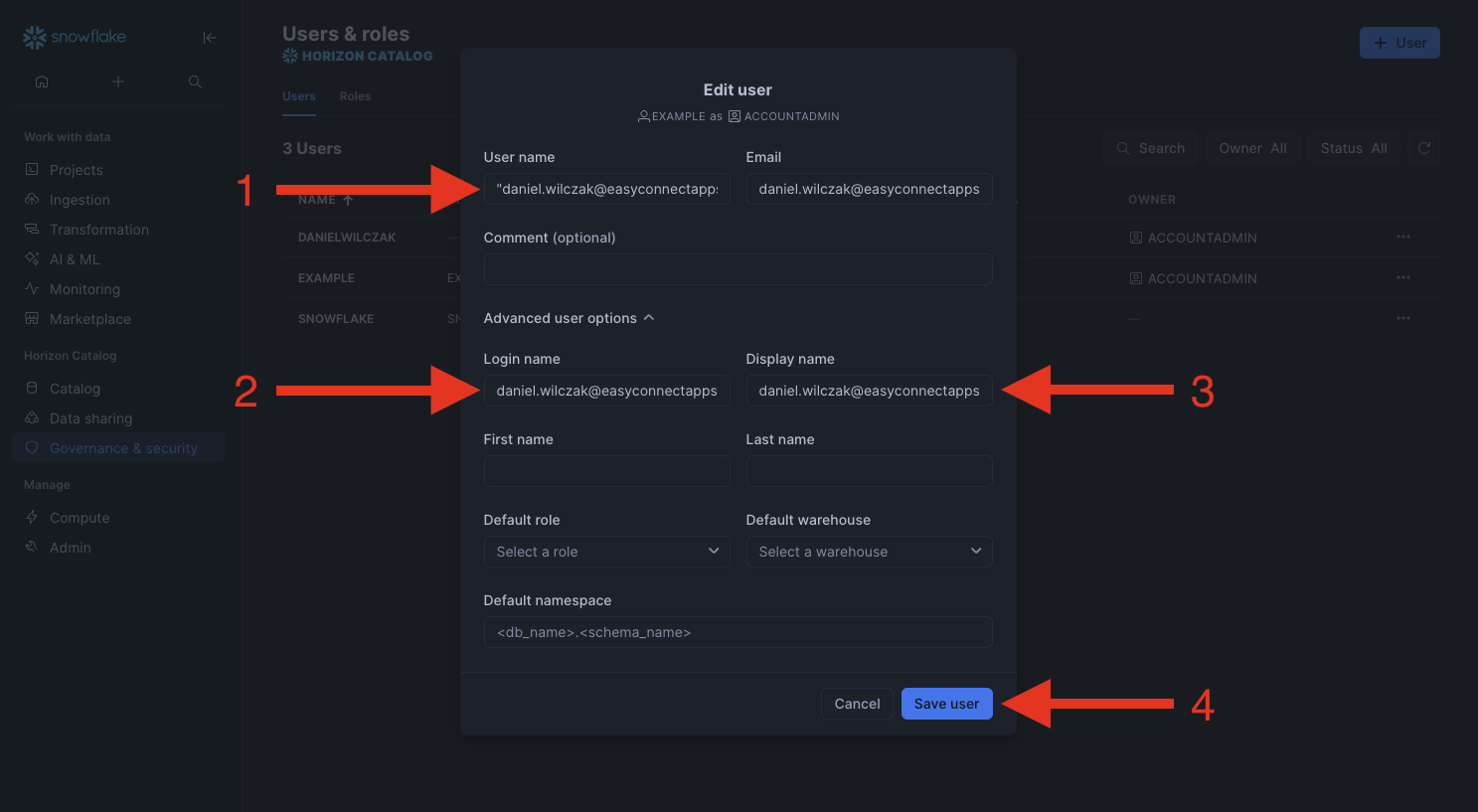

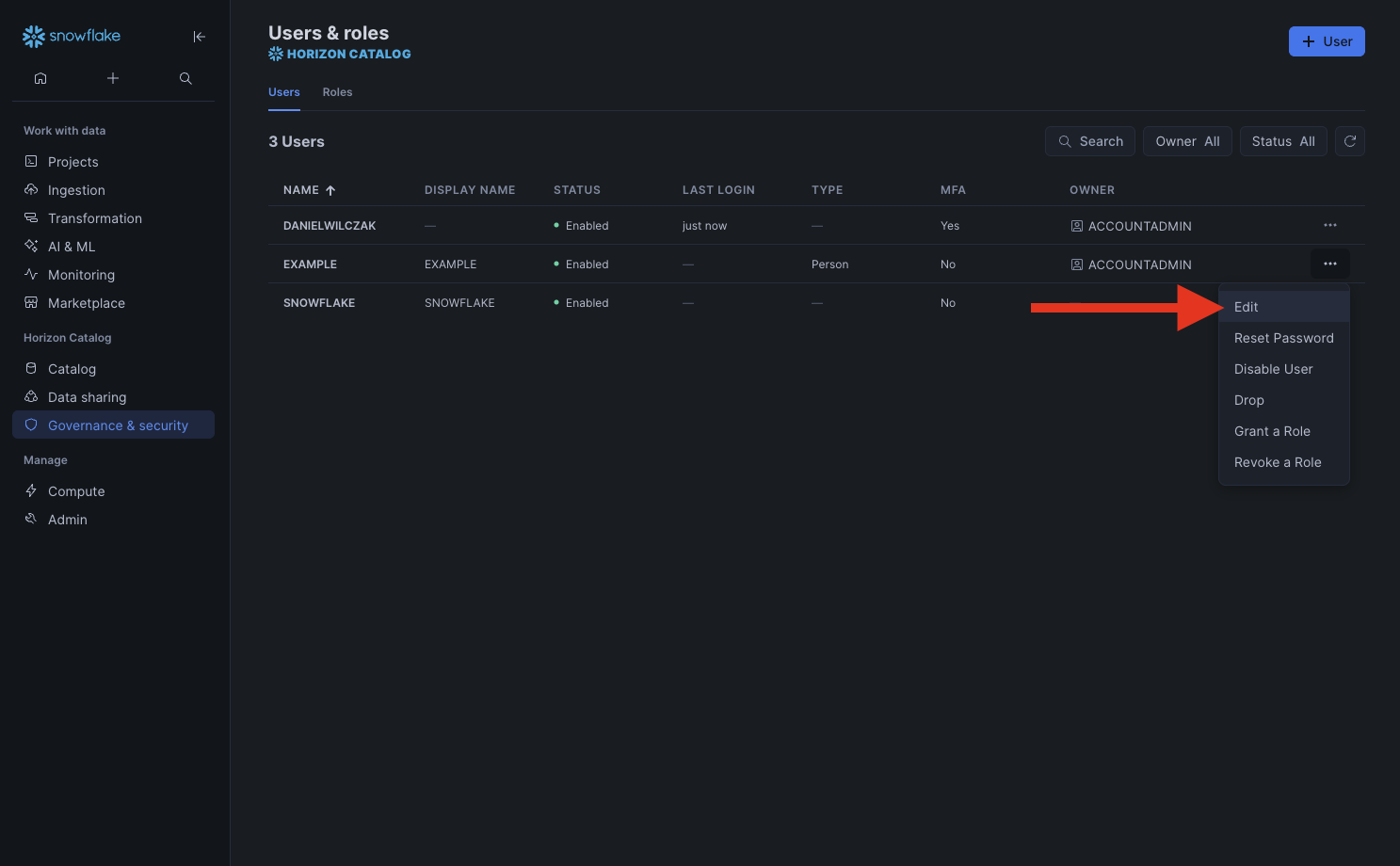

If you already have users in snowflake but when they were created they didn't use their email.

1
2
3
use role accountadmin;

alter user <USERNAME> rename to "<USER EMAIL>";

1
2
3
use role accountadmin;

alter user danielw rename to "hi@hi.com";
status
Statement executed successfully.

Test login

Note

If you get an error stating the user doesnt exist, you either forgot to add the user in Azure or Snowflake.

Lets make sure your Azure AD is working. Logout of your Snowflake account and you should now see the Azure AD login button. Login
