GCP / Fivetran - Lata Lake

Goal of this tutorial is to setup and integration with Fivetran, GCP and Snowflake to allow fivetran to load iceberg data into a GCP datalake and then integrate Snowflake to be the query engine on that data.

Video

Video still in development.

Requirements

  • Snowflake account, you can use a free trial. We also assume no complex security needs.
  • Google cloud account, you can setup a free account to get started.
  • Fivetran account by signing up for a free trial.

Setup

Warning

Your GCP bucket and Snowflake acount have to be in the same region to be able to manage iceberg tables.

Lets start by setting up our Google Cloud Storage bucket. After that we'll connect fivetran to it and finish it off with the Snowflake integration to the Fivtran hosted Polaris Catalog.

Google Cloud

Sign into your google account.

Create project

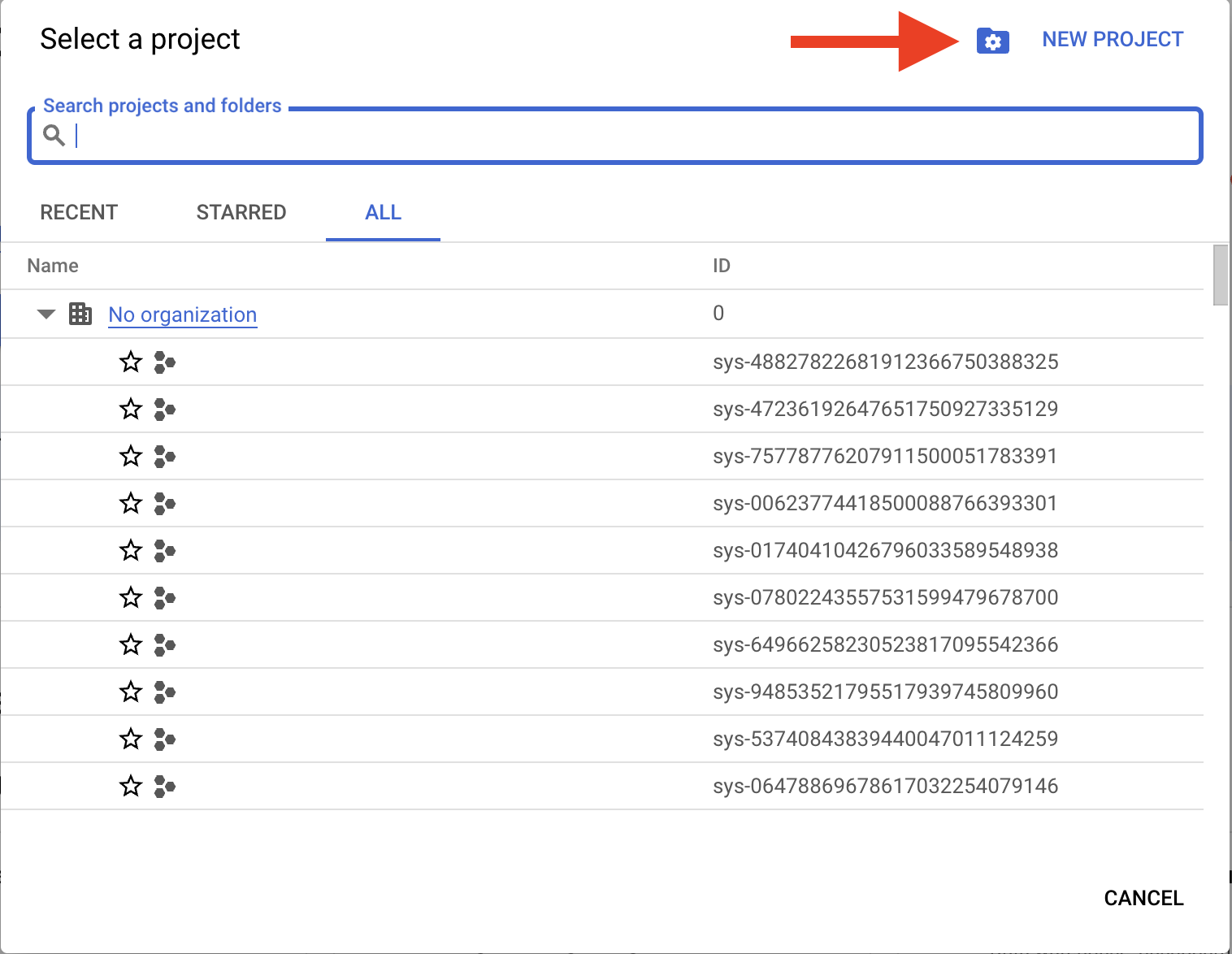

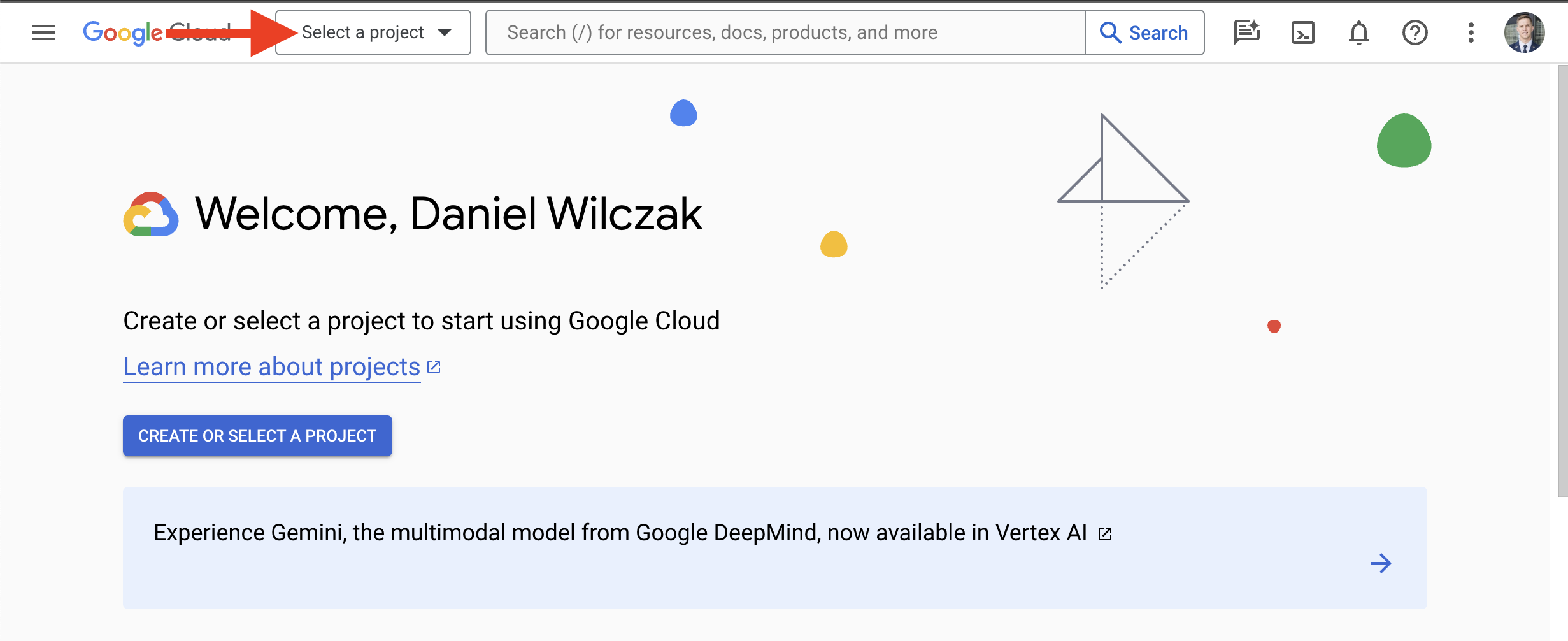

If you don't have a project, start by selecting/creating a project. Project

Click create project. Create project

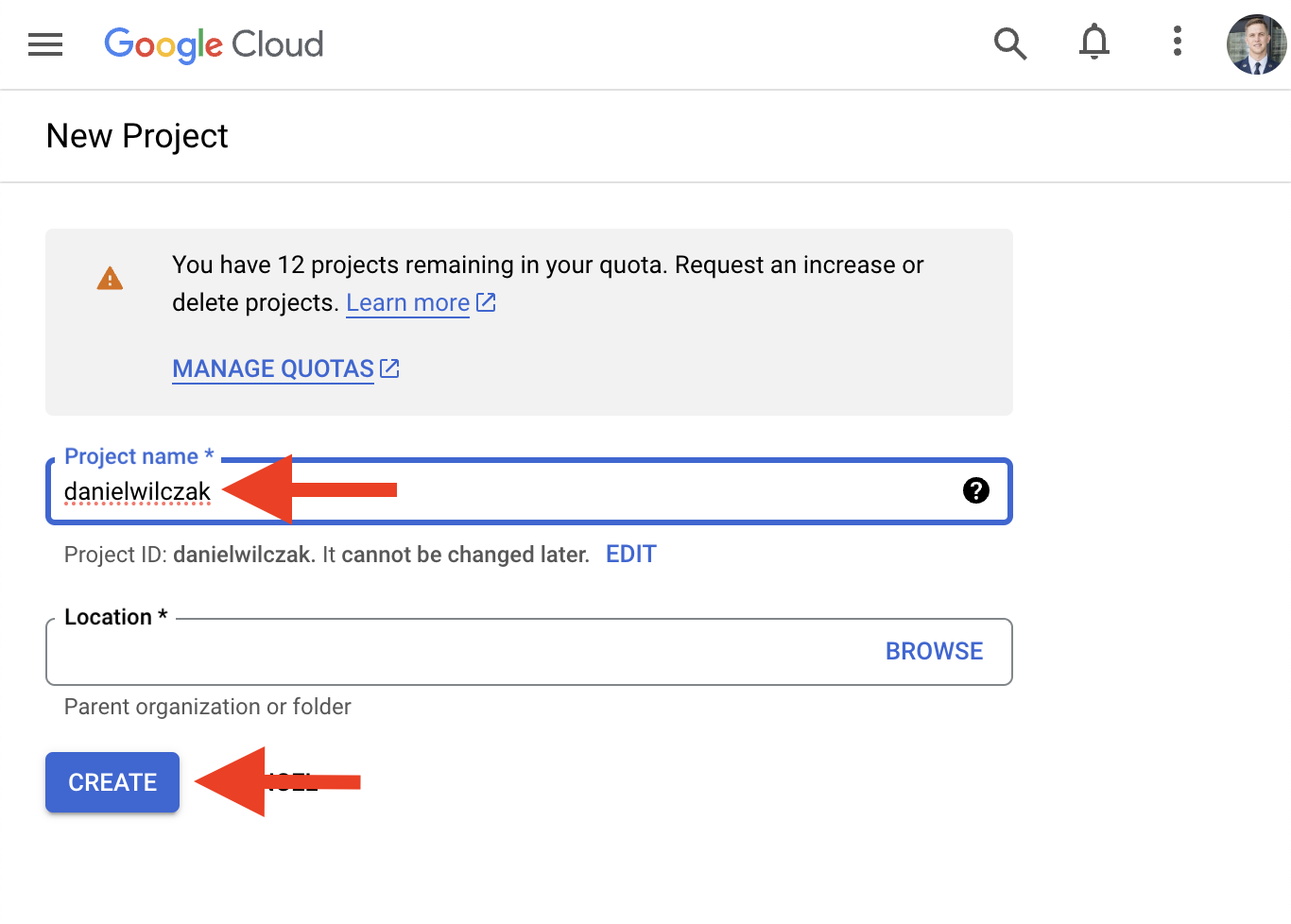

In our case we'll call the project danielwilczak and select the default no organization for the location. Name project

Create storage bucket

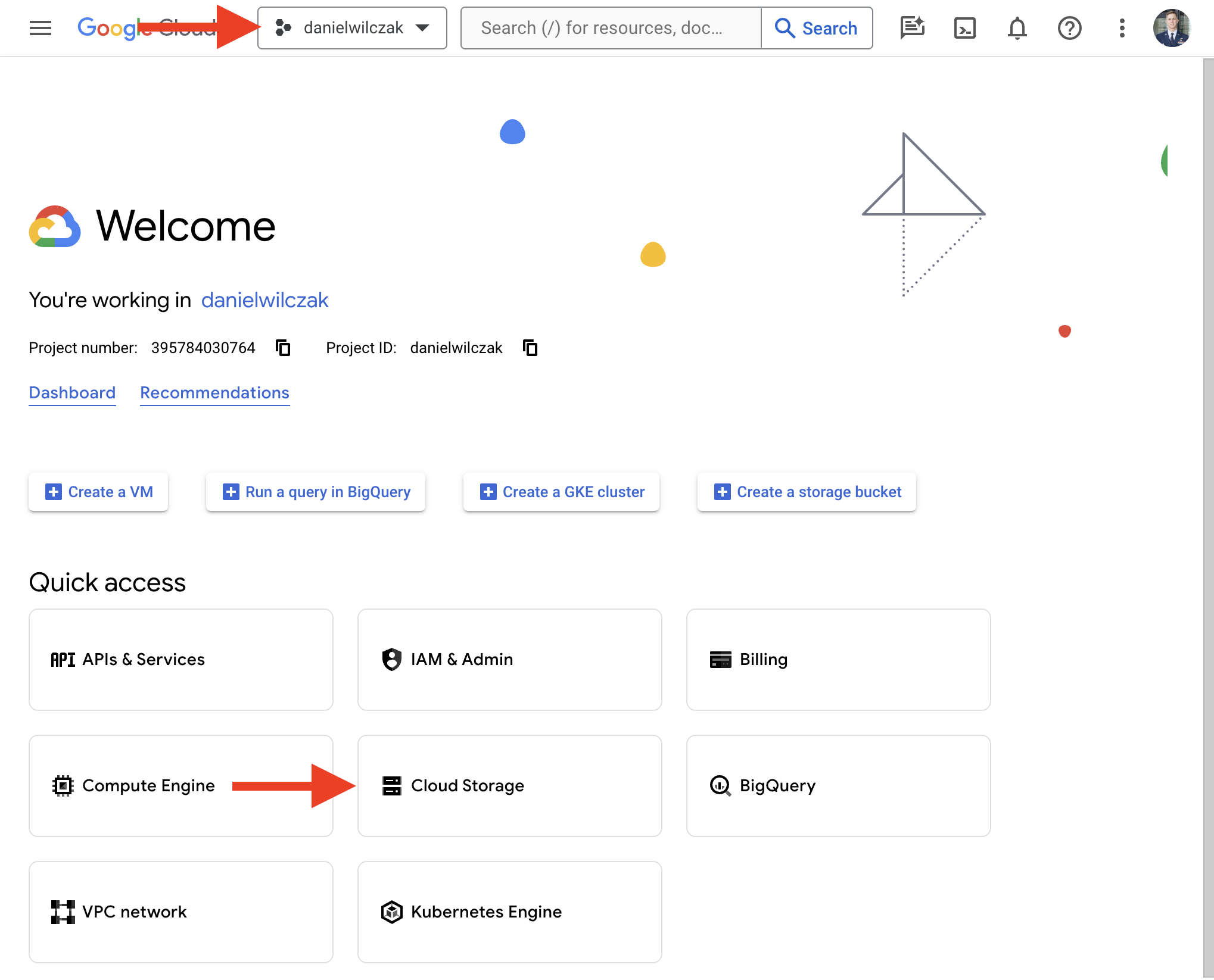

We will select our new project and click cloud storage to create a storage bucket. Select project and cloud storage

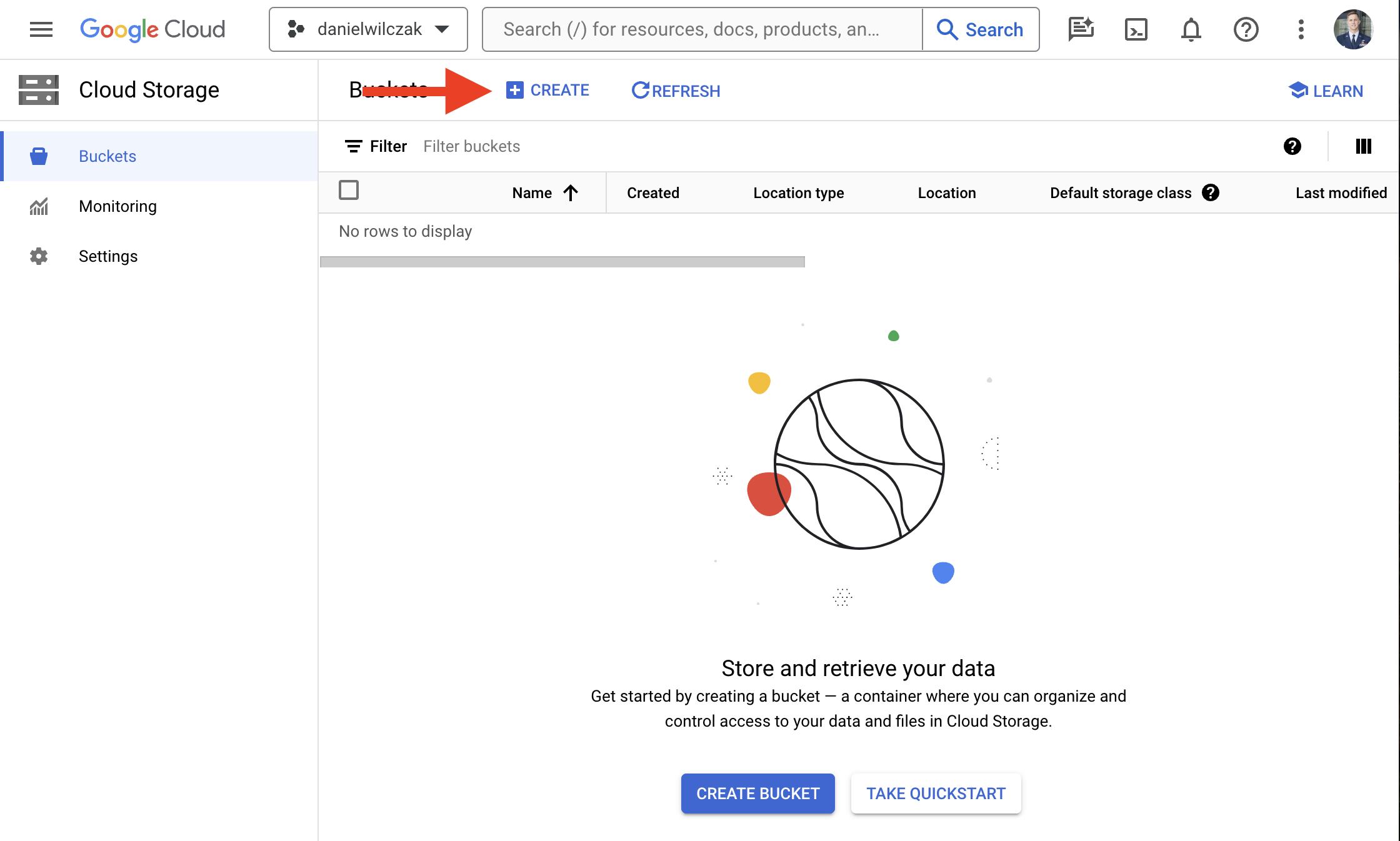

Click create or create bucket. Click create bucket

Warning

Your GCP bucket and Snowflake acount have to be in the same region to be able to manage iceberg tables.

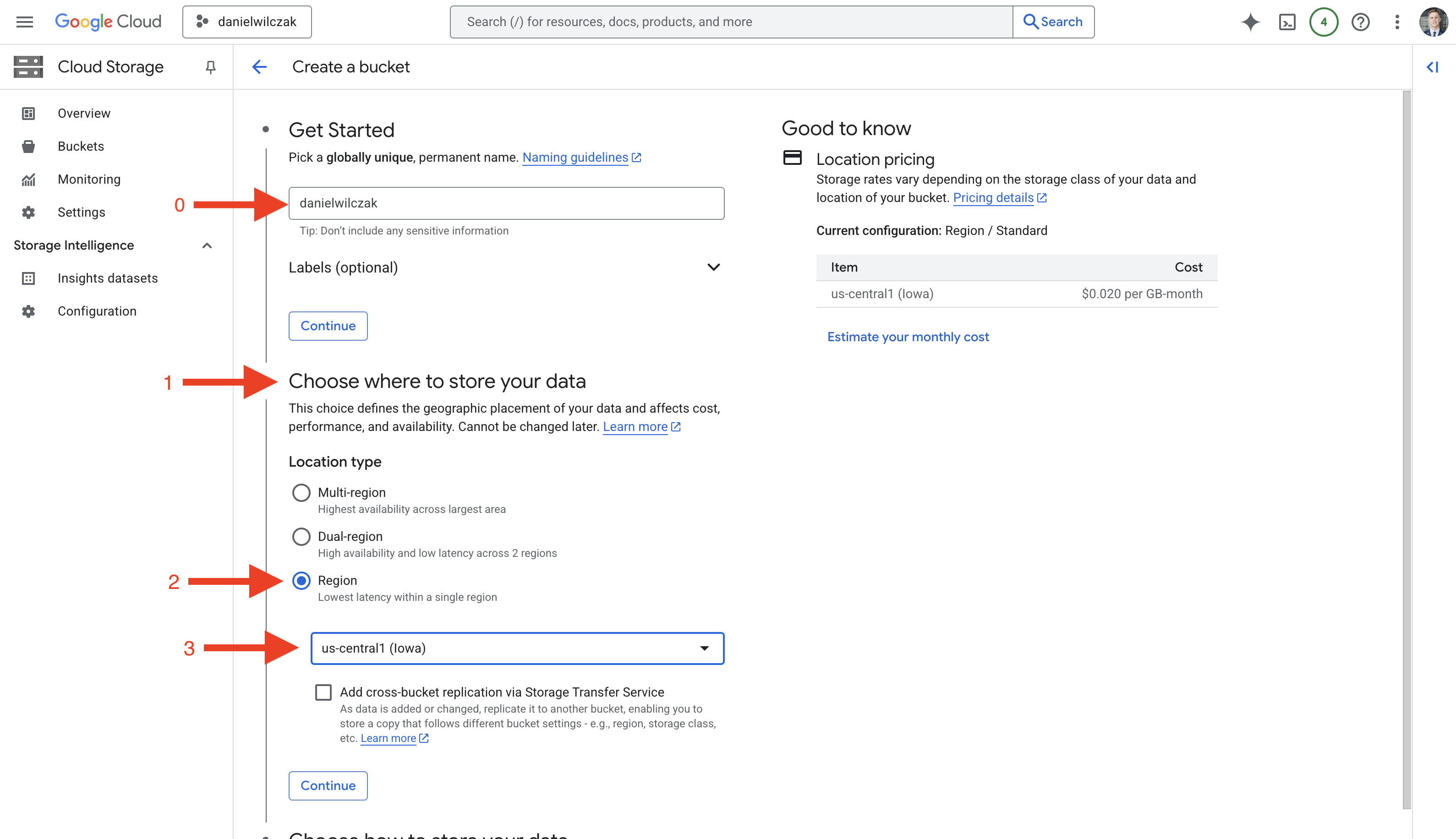

I'm going to name the bucket danielwilczak as well. Copy this name, we will use it later. We'll also want to make sure the region is the same as our Snowflake account. UPDATE

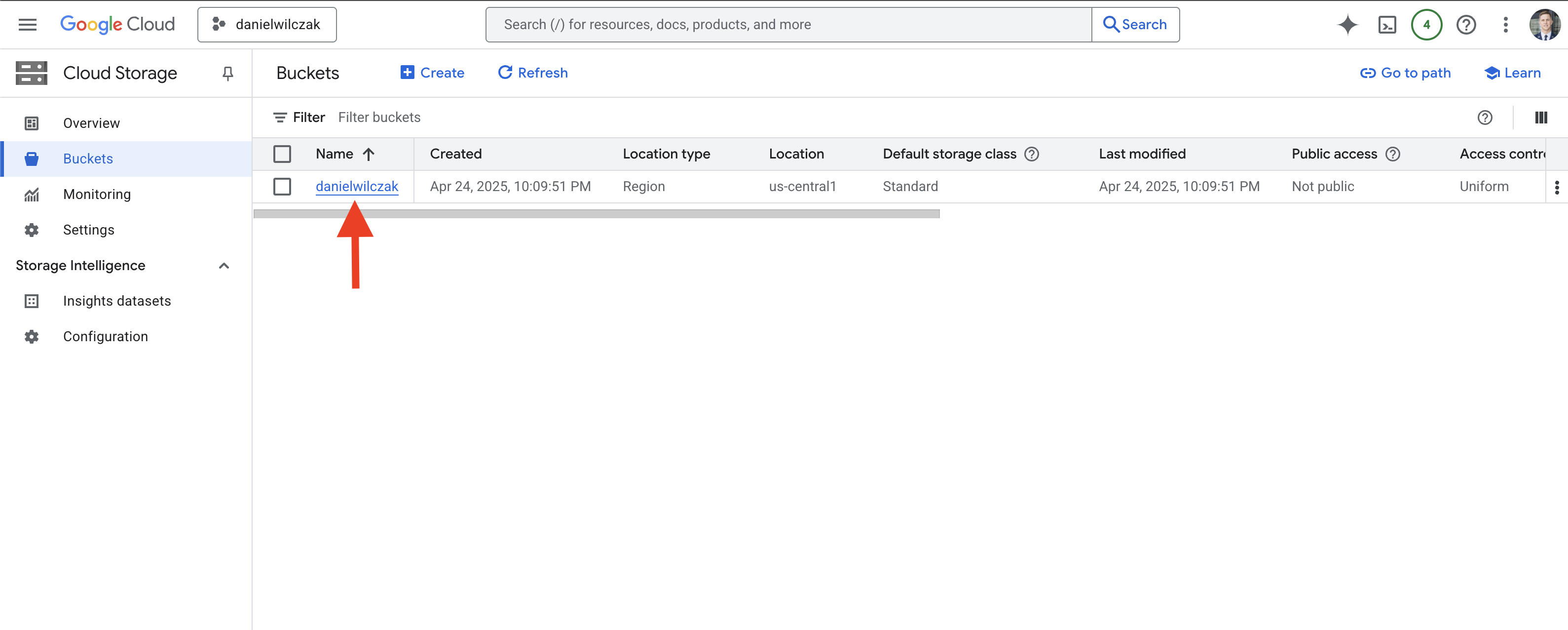

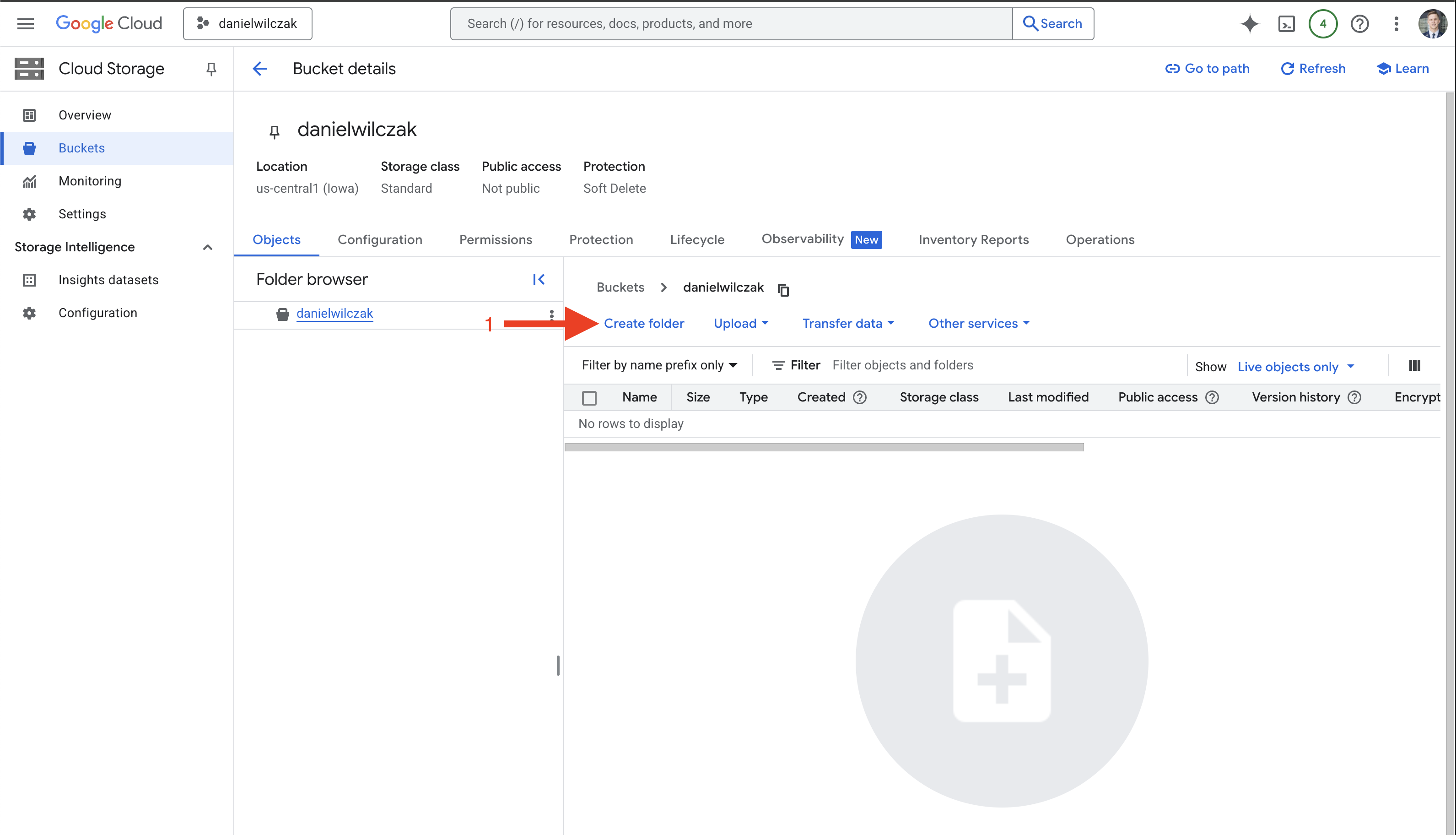

Lets now select our new bucket and add a folder. UPDATE

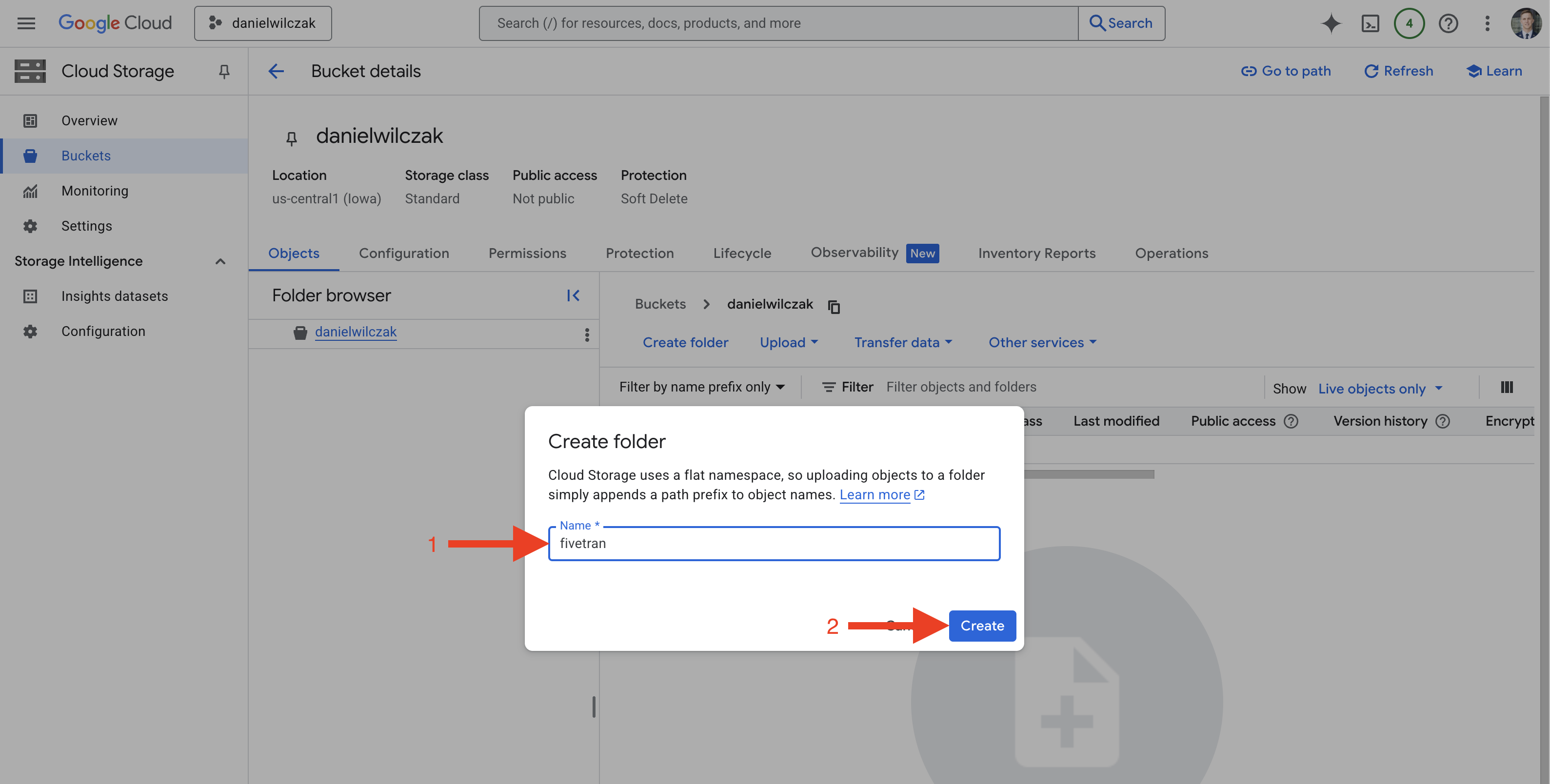

Click create folder. UPDATE

Give it a name, I've named mine fivetran because that is who is loading the data. UPDATE

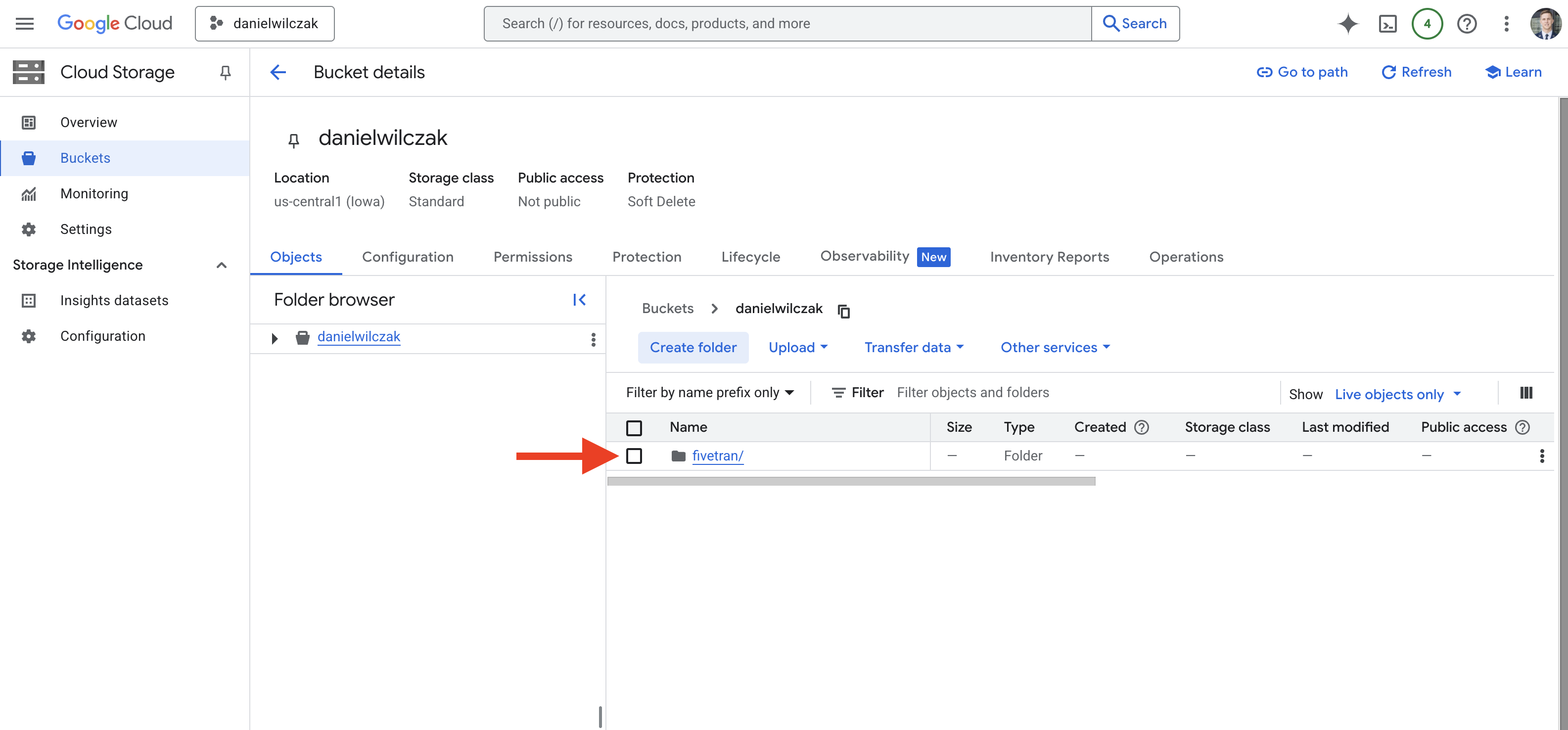

You can now see we have our folder. Let's move to setting up Fivetran to load data into our folder. UPDATE

Fivetran

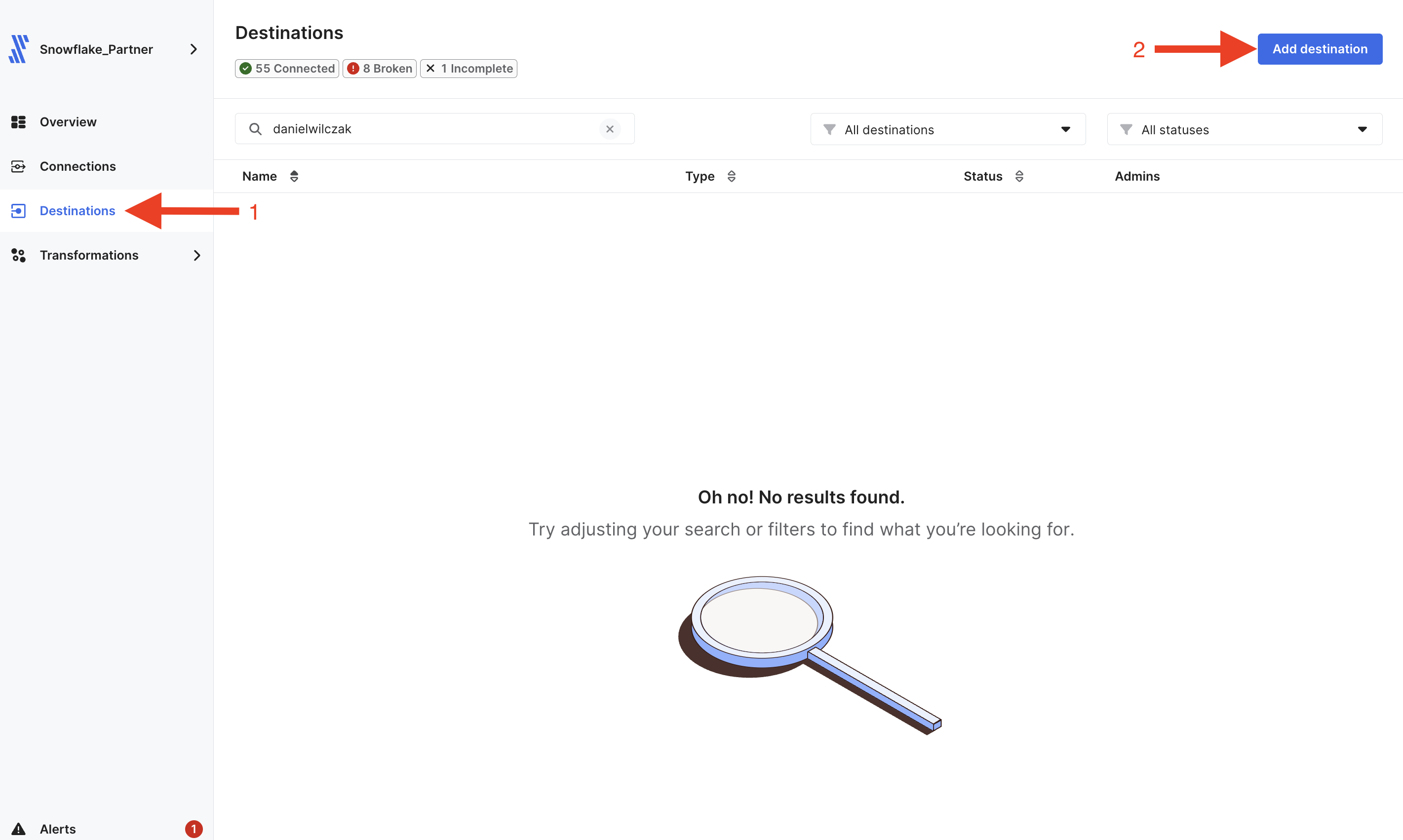

Let's now move to connecting fivetran to our bucket. To start let's add our bucket as a destination. Click destination in fivetran. UPDATE

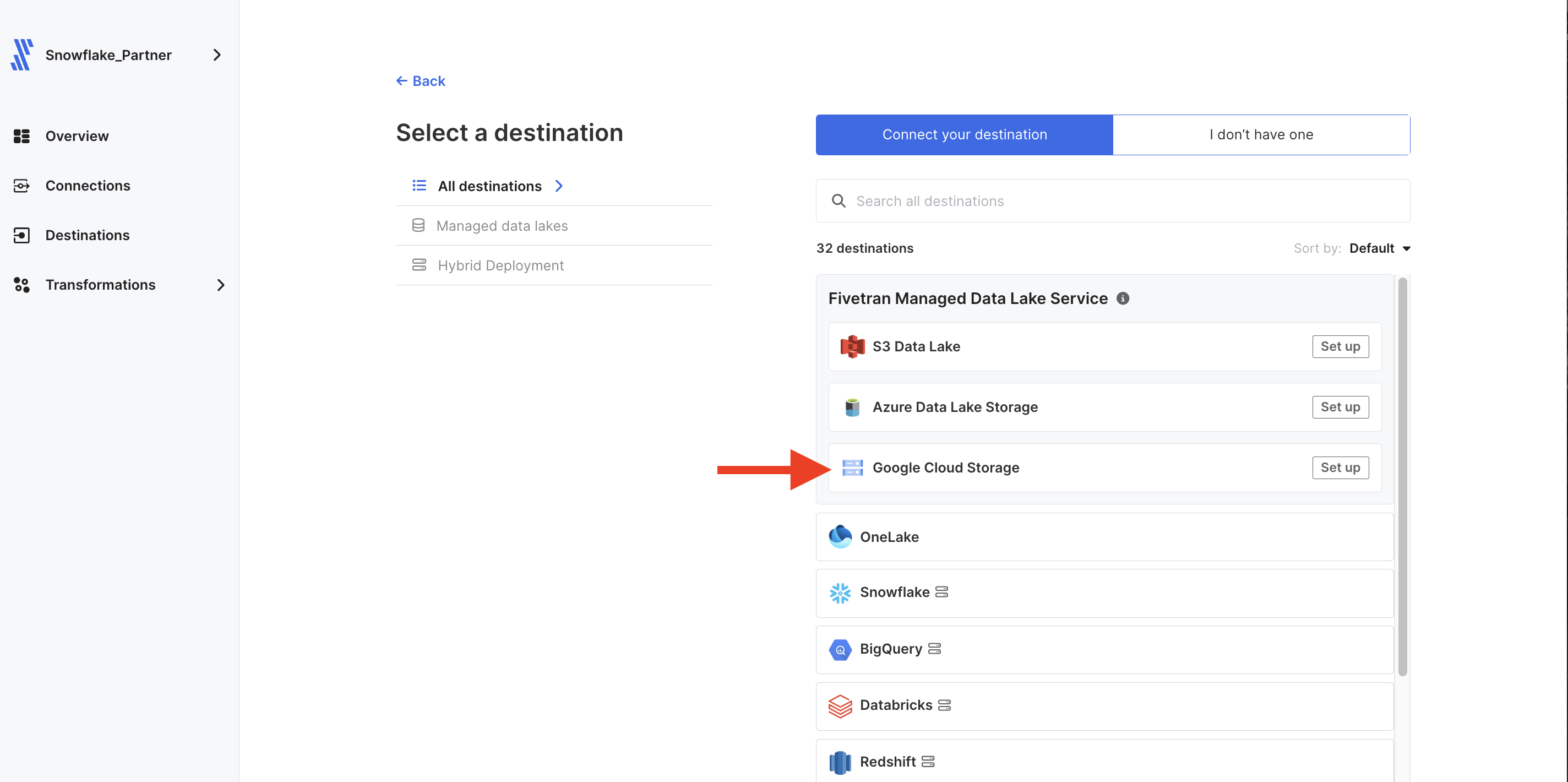

Select GCP cloud storage as the location. UPDATE

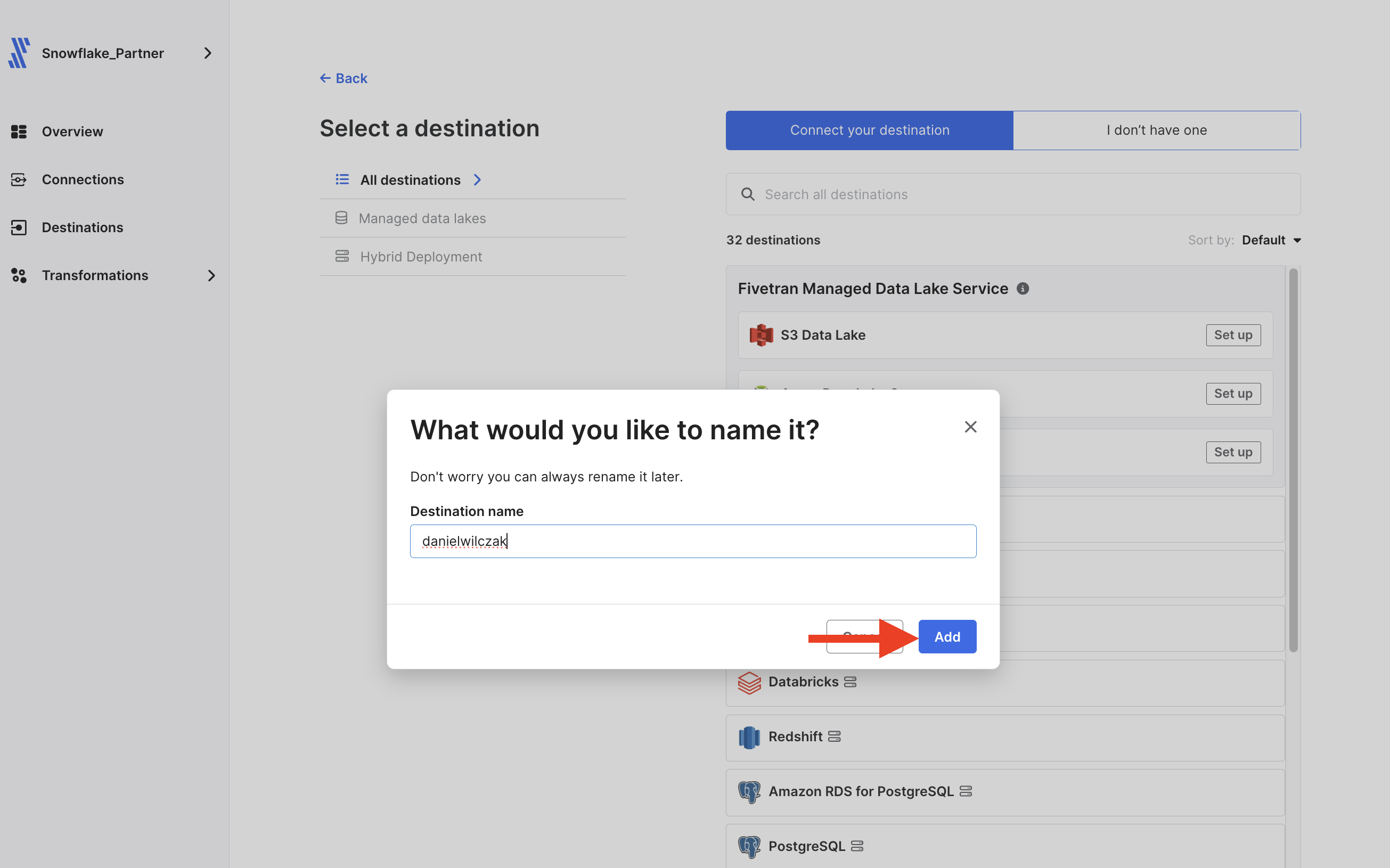

Give the destination a name. UPDATE

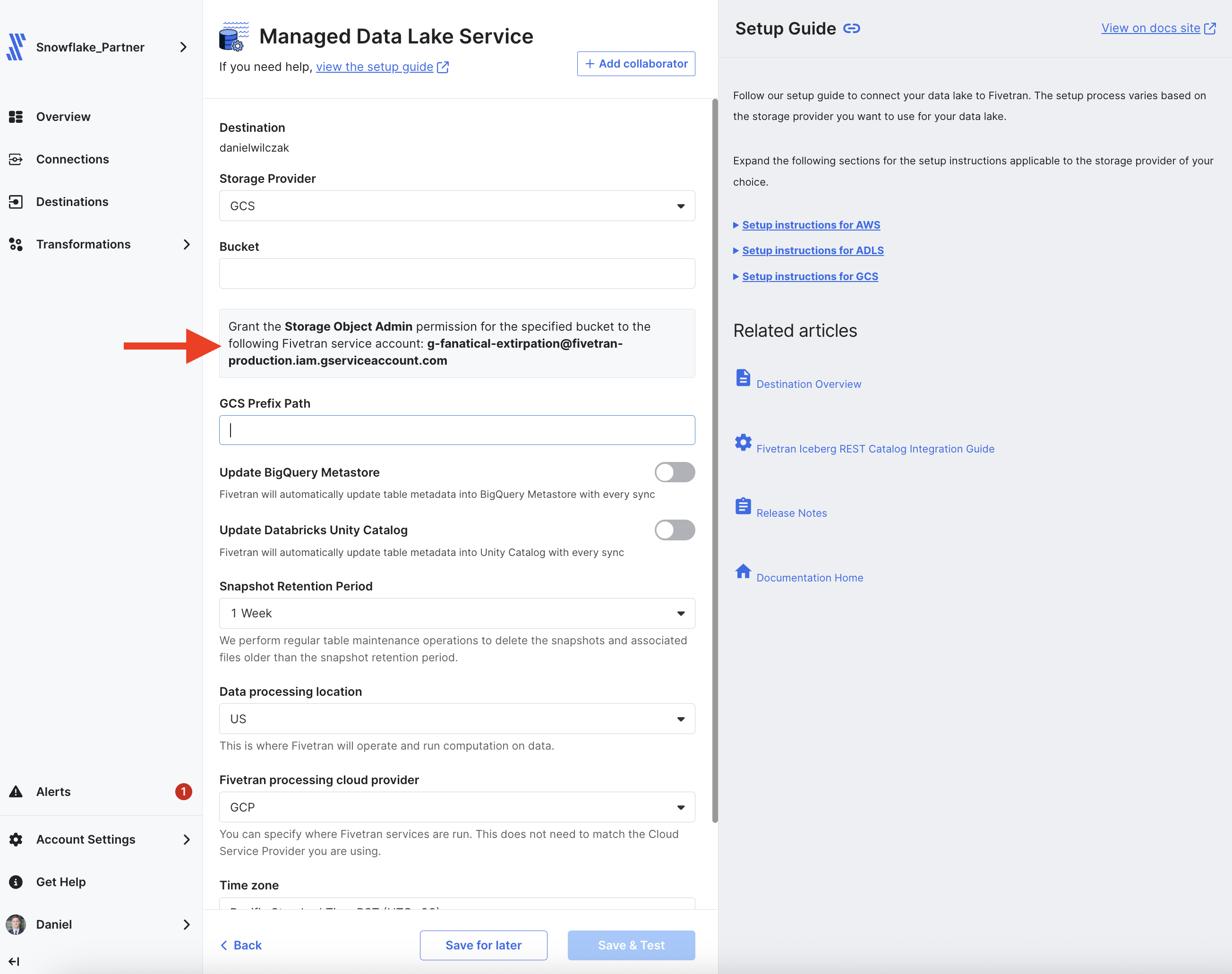

We'll first want to copy our service account URL to give Fivetran permission to use the bucket. UPDATE

Authorize Fivetran in GCP

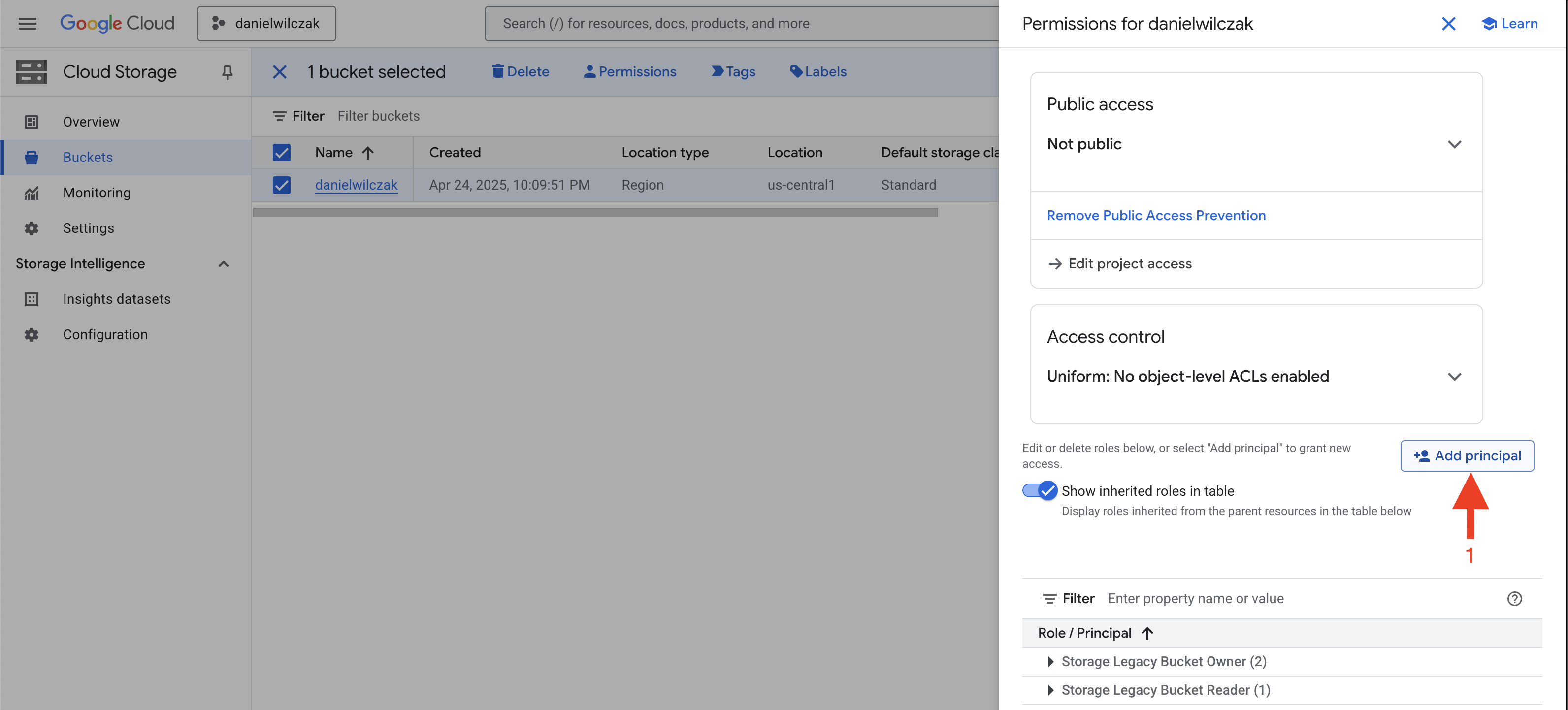

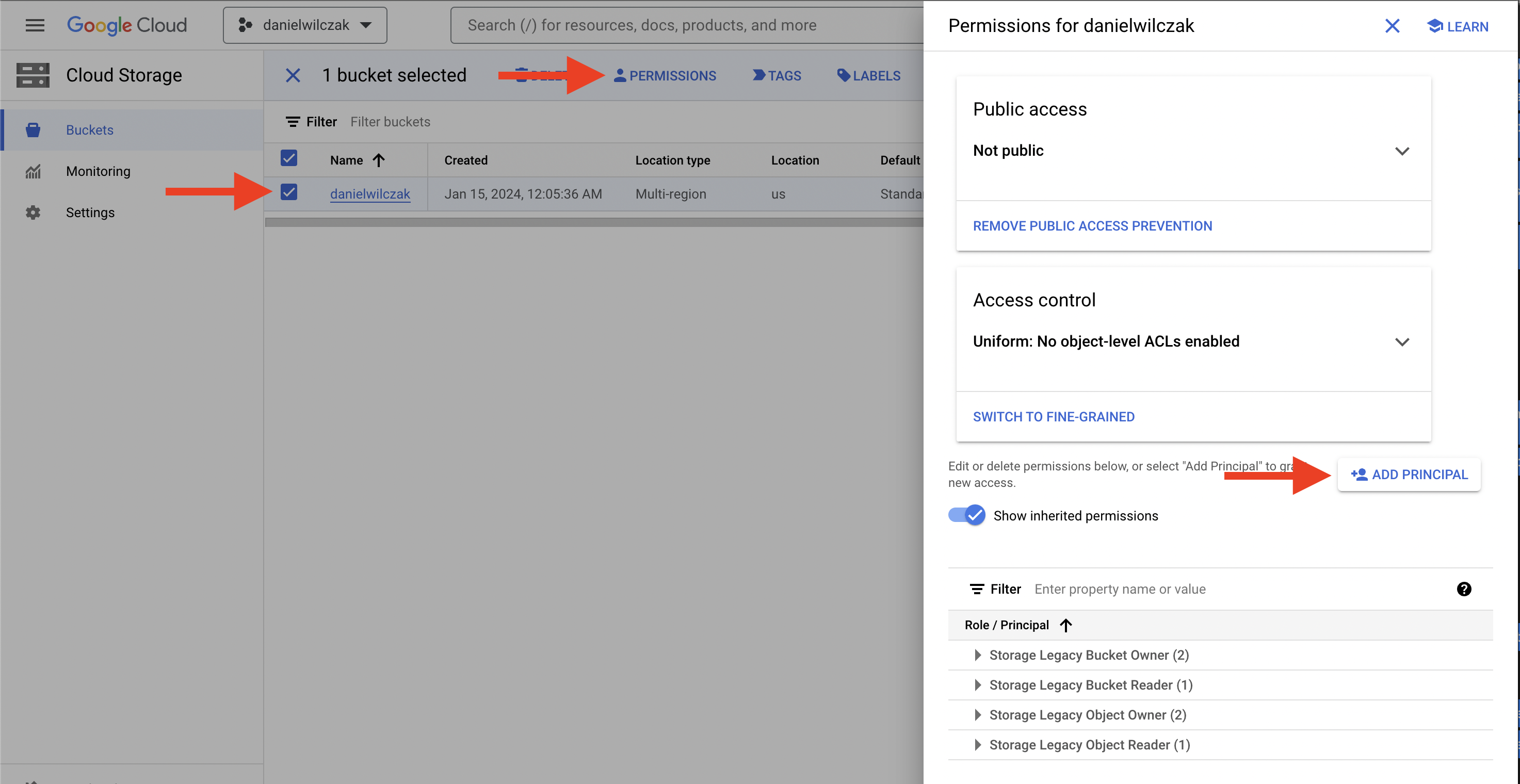

Let's head back to our bucket and click the check box followed by the permissions button. UPDATE

Click add principle. UPDATE

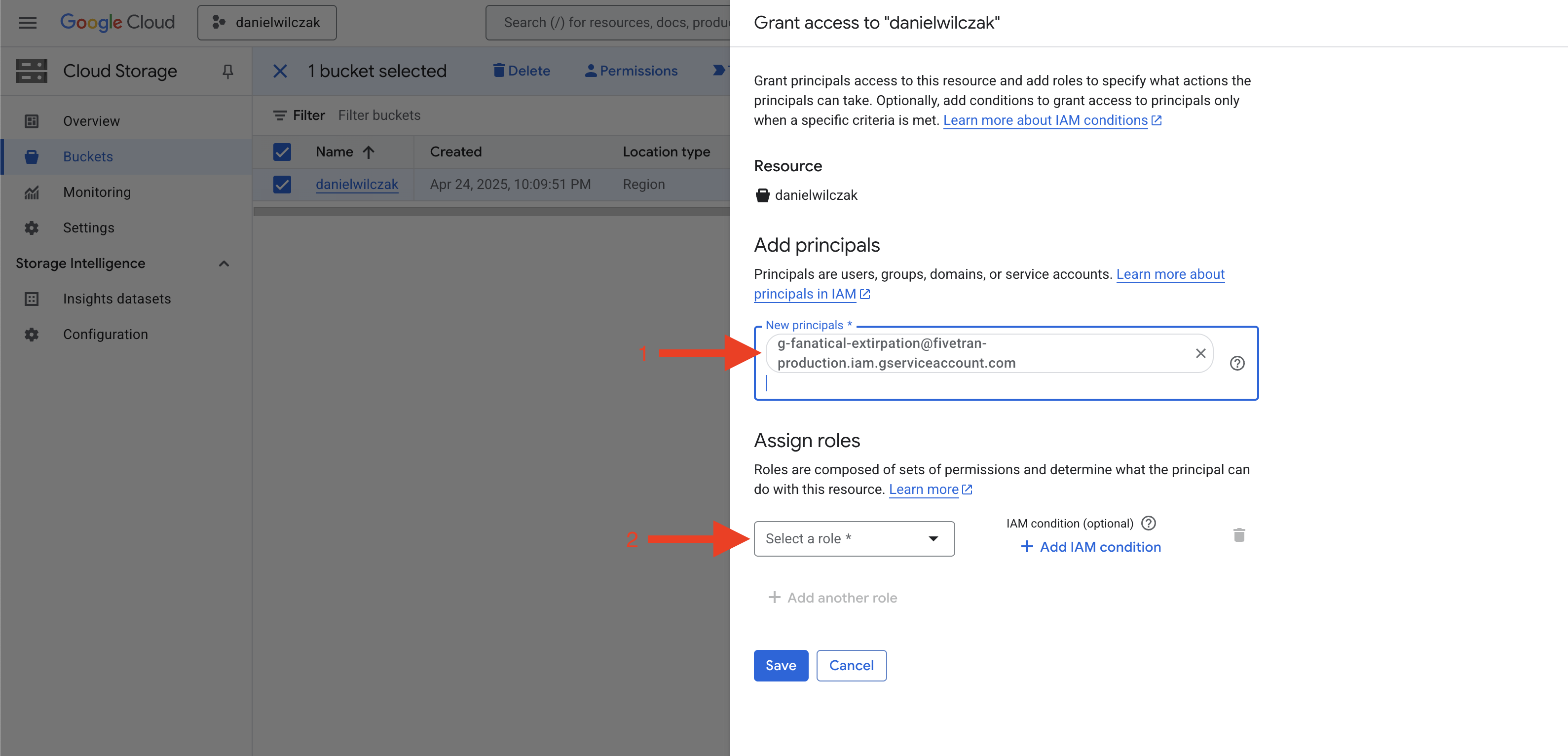

Paste our service account URL given by Fivetran and then click select role. UPDATE

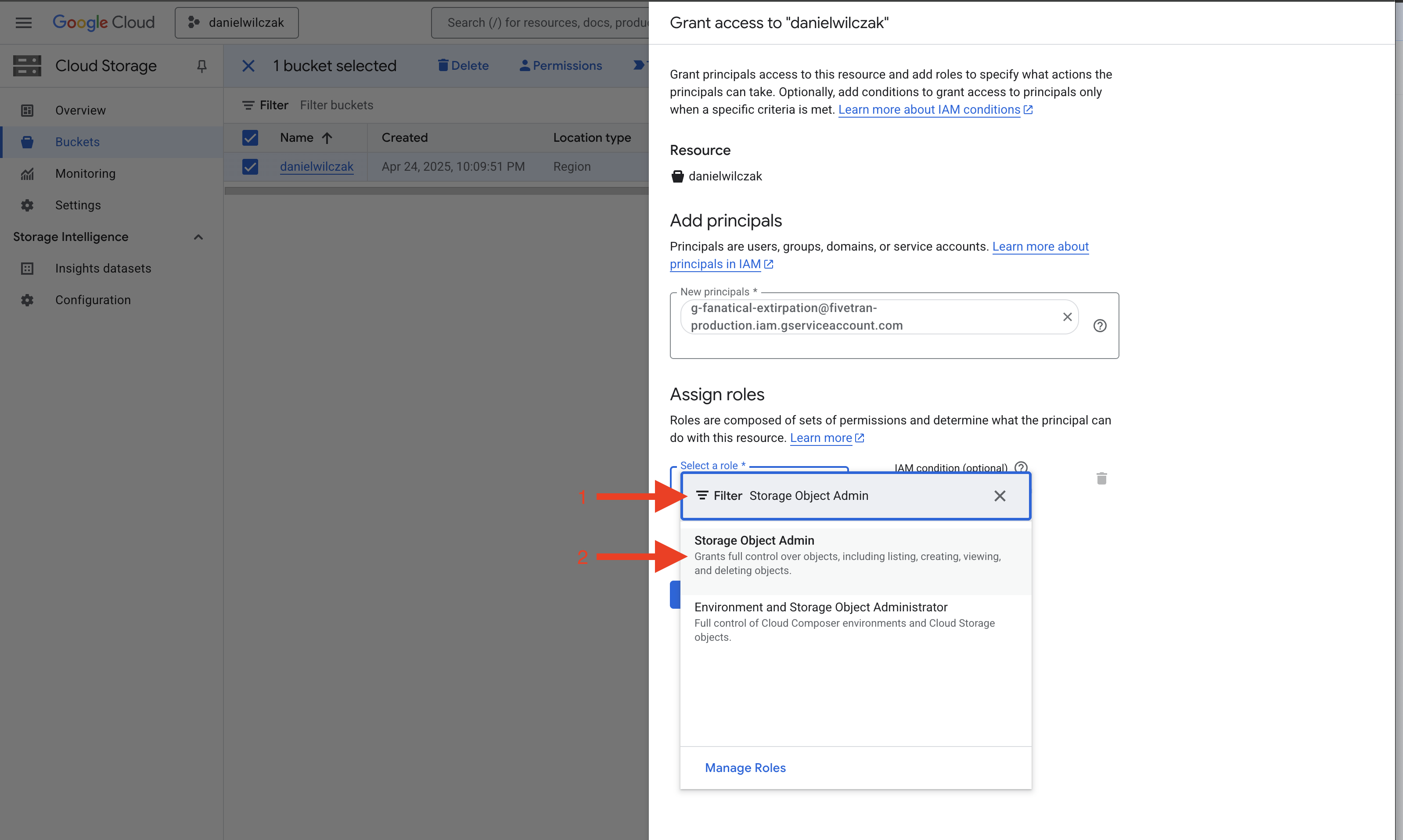

We'll want to search for "Storage Object Admin" and then click on it in the dropdown. UPDATE

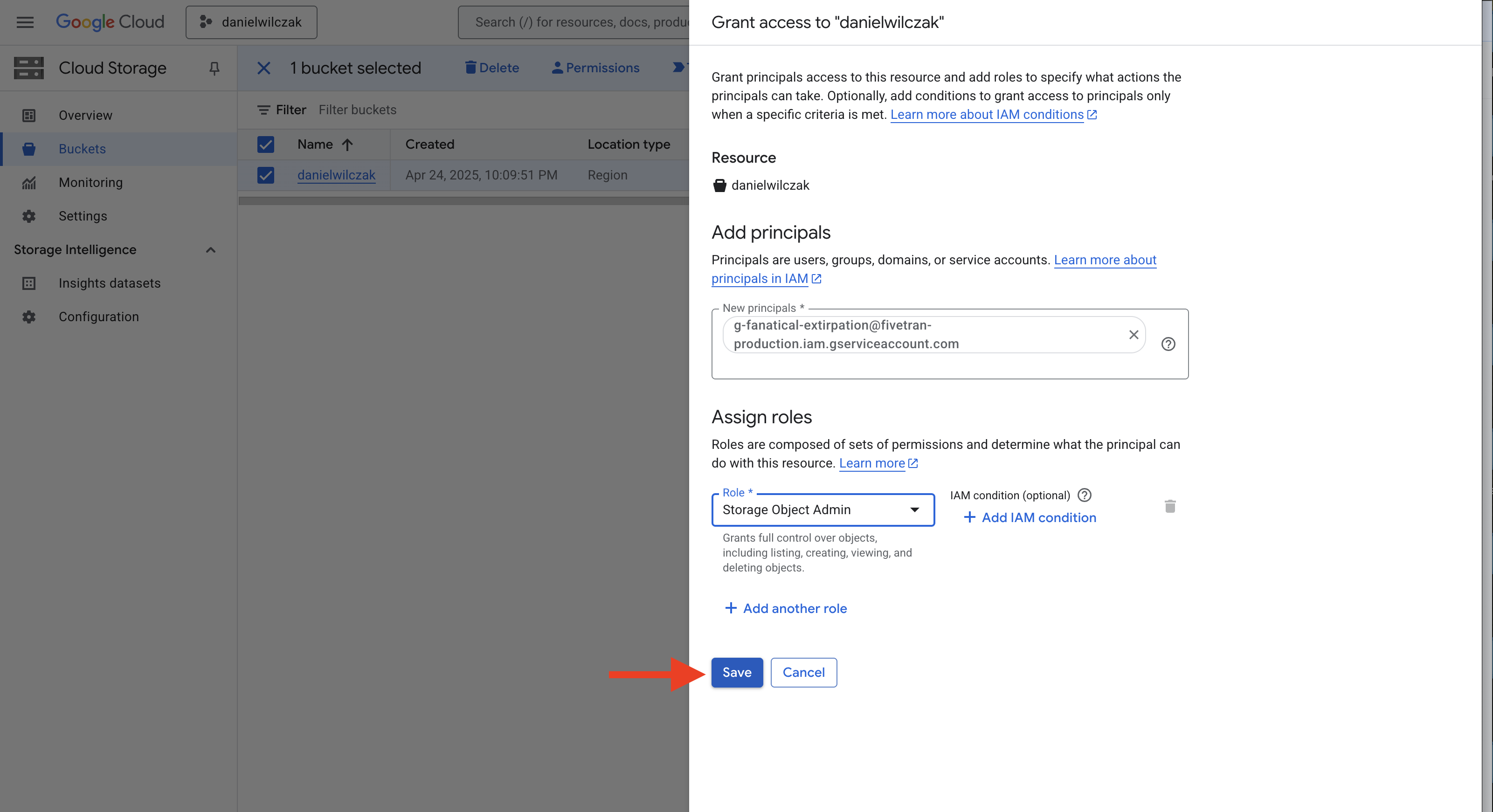

Once both are added click "Save". UPDATE

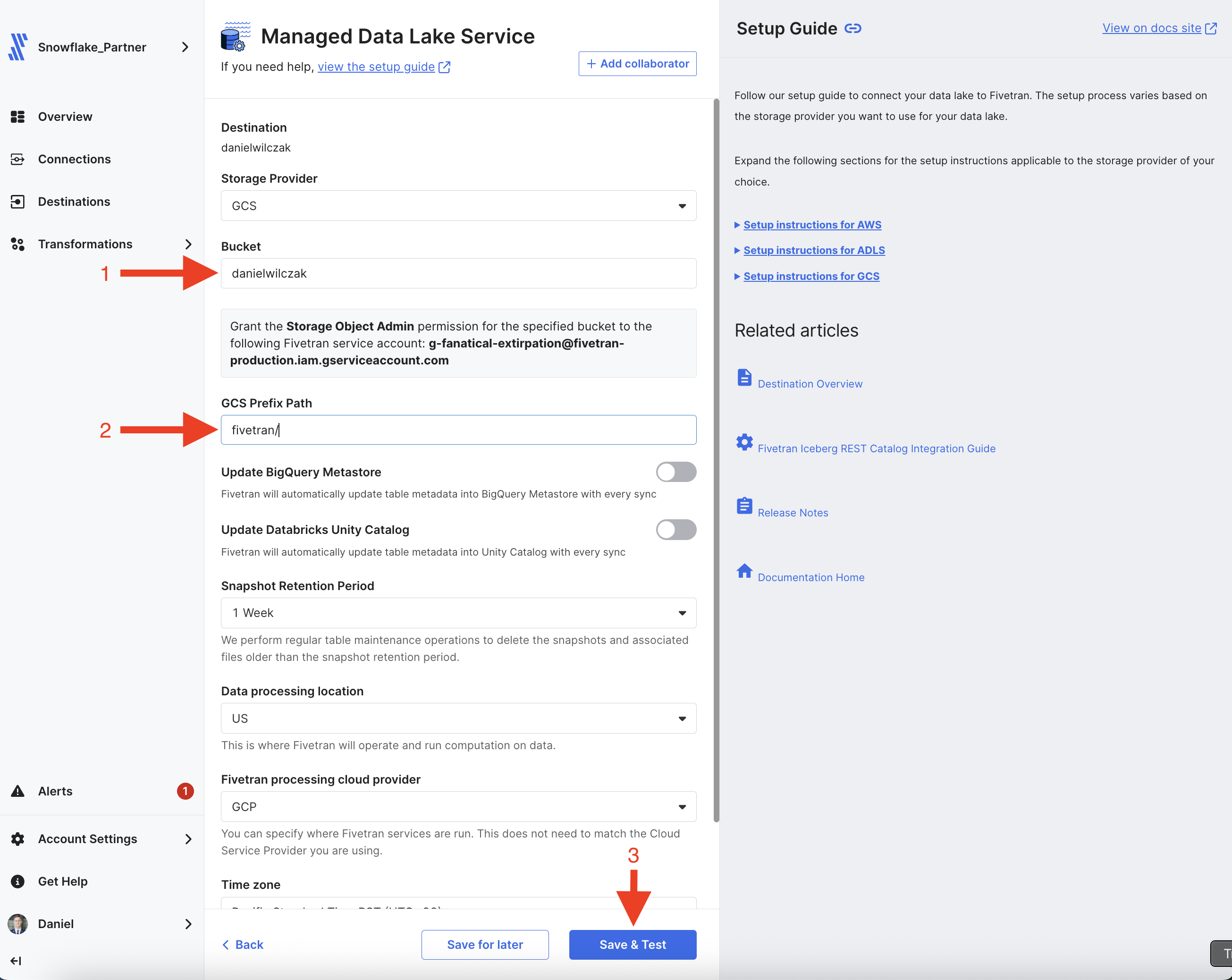

Now we can added our bucket name, folder and click save and test. UPDATE

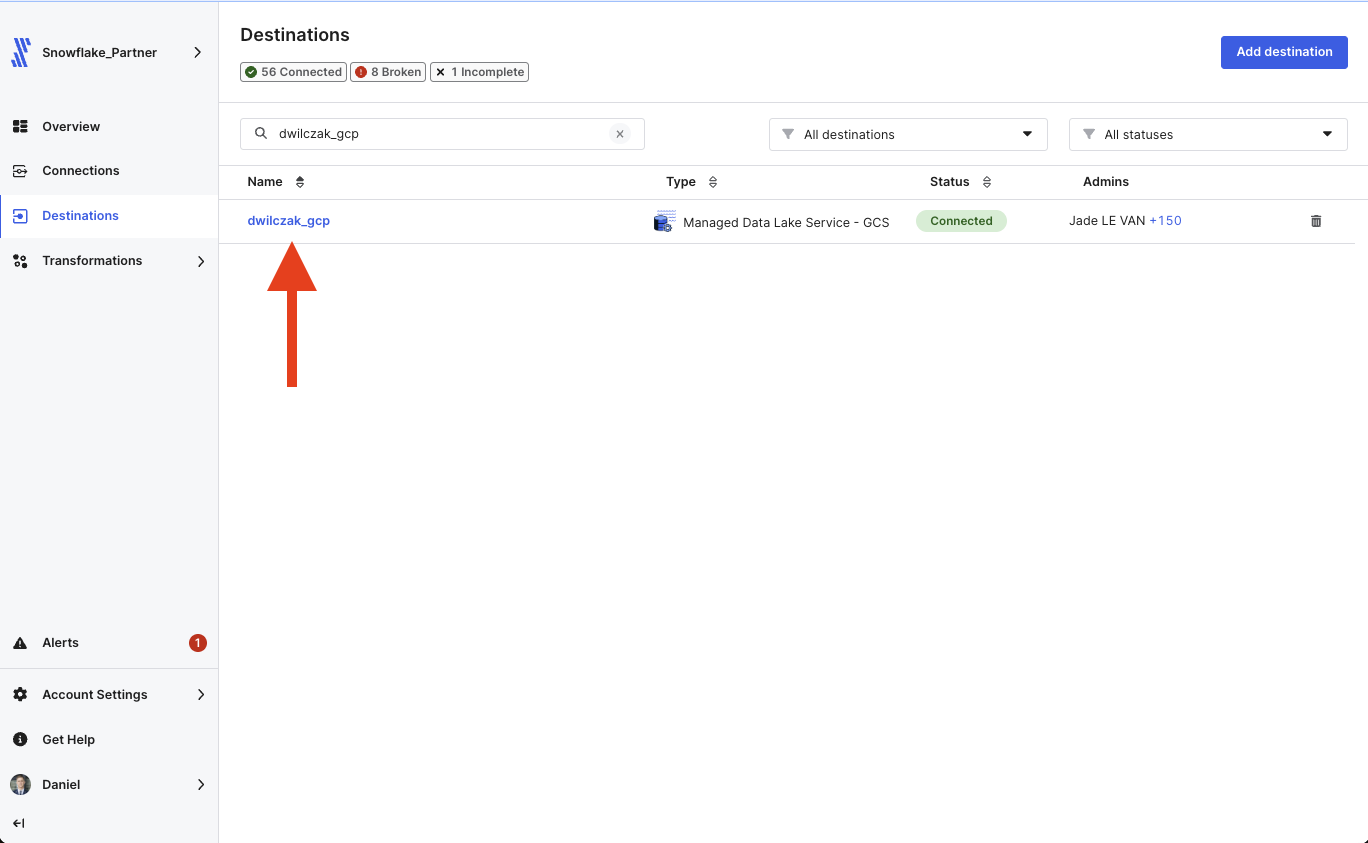

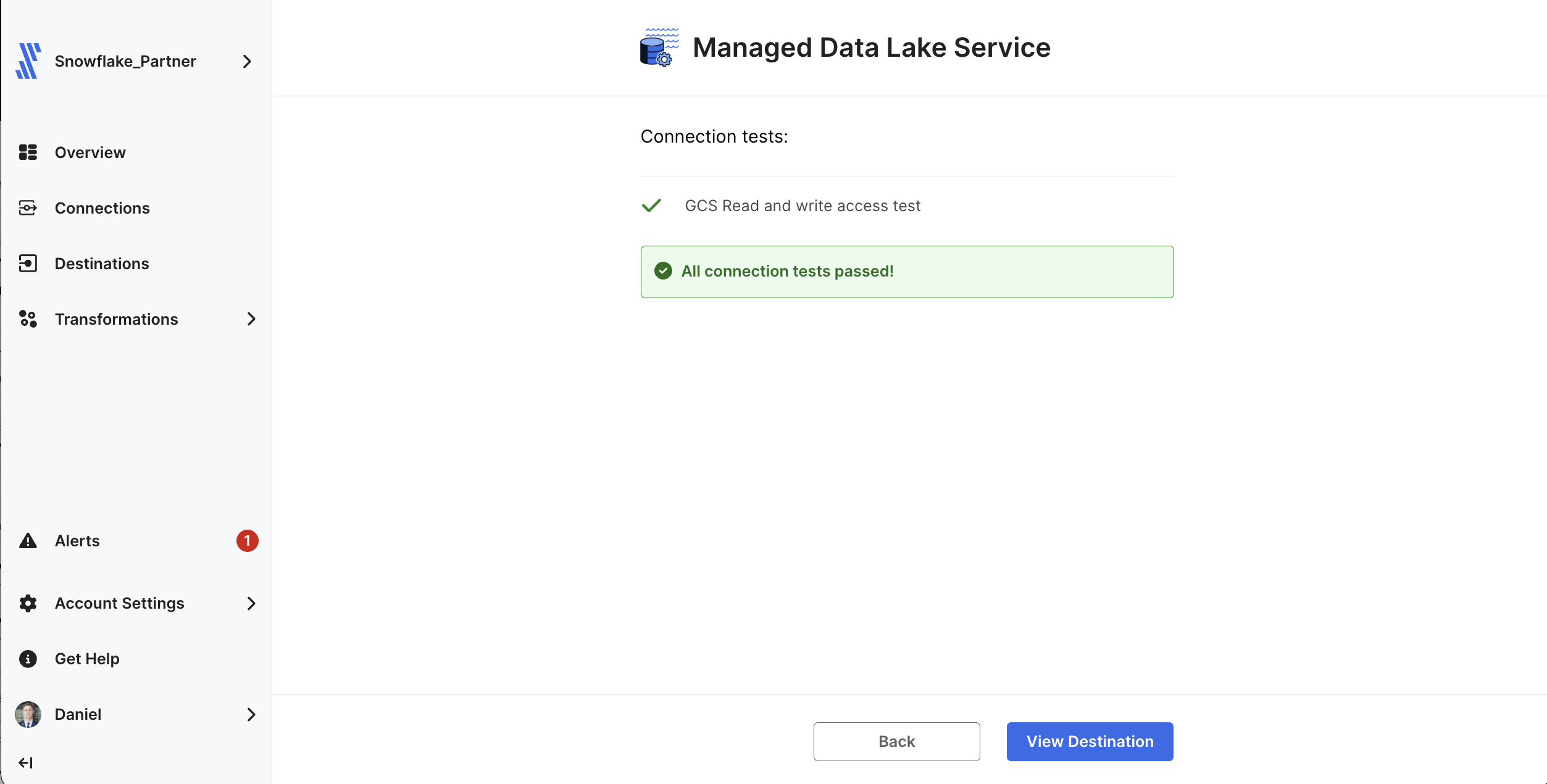

Once tested your destination is ready to use. Let's view the destination. UPDATE

Snowflake

Warning

Currently you must grab the catalog code when the destination is created otherwise the key will be hidden '*'. Fivetran is working on fixing this issue.

Now that our data is loaded into our GCP bucket let's connect Snowflake to it using Fivetrans hosted Polaris catalog. Let's start by going back into our GCP destination in Fivetran to copy some Snowflake code. UPDATE

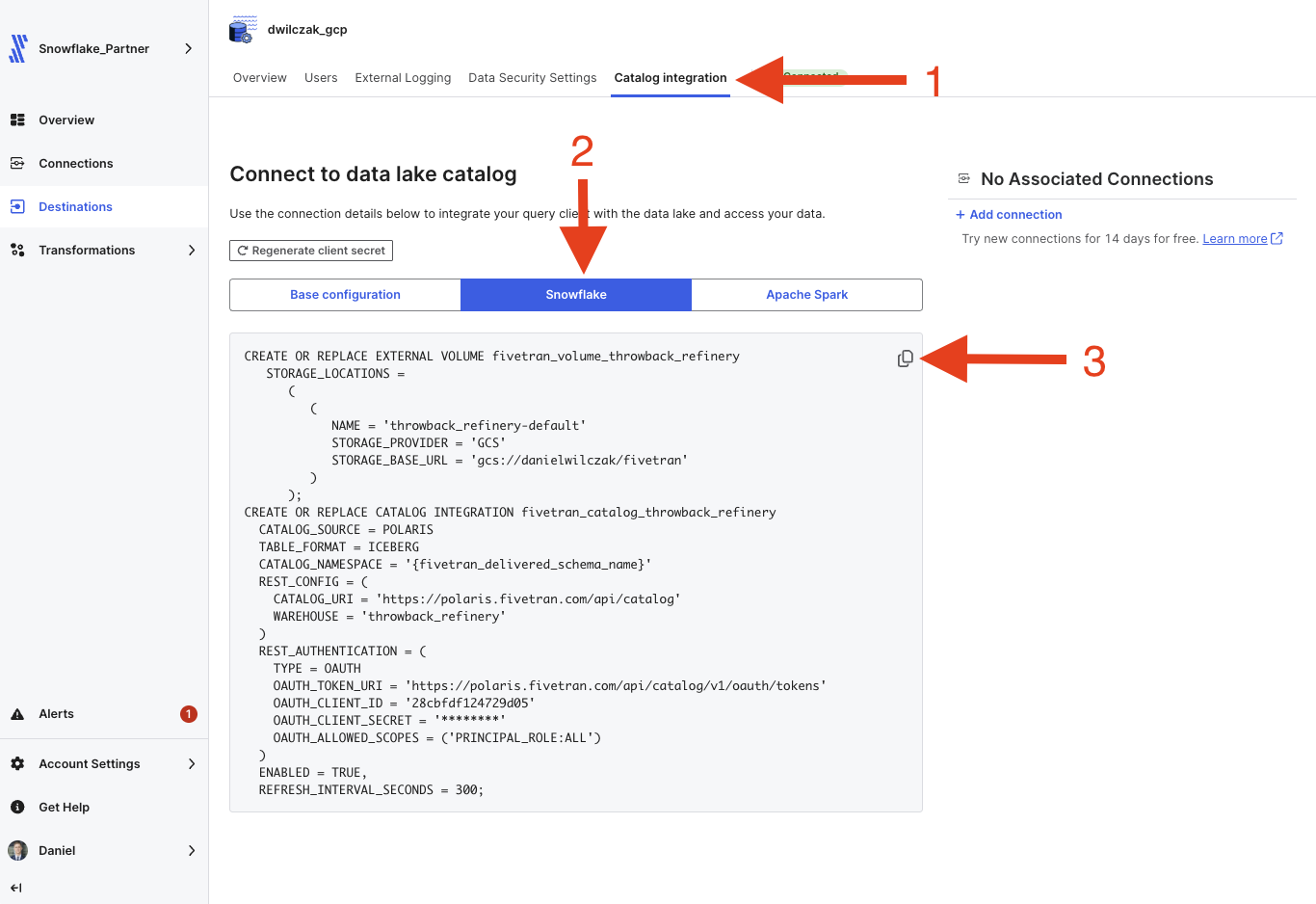

Once in the destination, on the top navigation bar, select "Catalog Integration", select Snowflake and then copy the sql code. We will use this in Snowflake next. UPDATE

Let's head into Snowflake and add the code from fivetran and the line below. This will allow us to see the tables that are managed by the catalog.

1
2
-- To see the tables in the catalog
select system$list_iceberg_tables_from_catalog('<Catalog Name>', '', 0);

1
2
-- To see the tables in the catalog
select system$list_iceberg_tables_from_catalog('fivetran_catalog_throwback_refinery', '', 0);

1
2
3
4
5
6
7
8
9
[
    {"namespace":"google_analytics","name":"conversion_events"},
    {"namespace":"google_analytics","name":"events_report"},
    {"namespace":"google_analytics","name":"accounts"},
    {"namespace":"google_analytics","name":"content_group_report"},
    {"namespace":"google_analytics","name":"audiences_report"},
    {"namespace":"google_analytics","name":"properties"},
    {"namespace":"google_analytics","name":"conversions_report"}
]
Grant access in GCP

We'll now need to allow Snowflake to interact with with bucket via the external volume. To do so we'll

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
use role accountadmin;

-- Get our principal url to be used in GCP so we can connect to the bucket.
describe external volume <VOLUME NAME >;
select
    "property",
    REPLACE(GET_PATH(PARSE_JSON("property_value"), 'STORAGE_GCP_SERVICE_ACCOUNT')::STRING, '"', '') AS url
from
    table(result_scan(last_query_id()))
where
    "property" = 'STORAGE_LOCATION_1';

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
use role accountadmin;

-- Get our principal url to be used in GCP so we can connect to the bucket.
describe external volume fivetran_volume_throwback_refinery;
select
    "property",
    REPLACE(GET_PATH(PARSE_JSON("property_value"), 'STORAGE_GCP_SERVICE_ACCOUNT')::STRING, '"', '') AS url
from
    table(result_scan(last_query_id()))
where
    "property" = 'STORAGE_LOCATION_1';
property URL
STORAGE_LOCATION_1 kuyp12345@gcpuscentral1-1dfa.iam.gserviceaccount.com

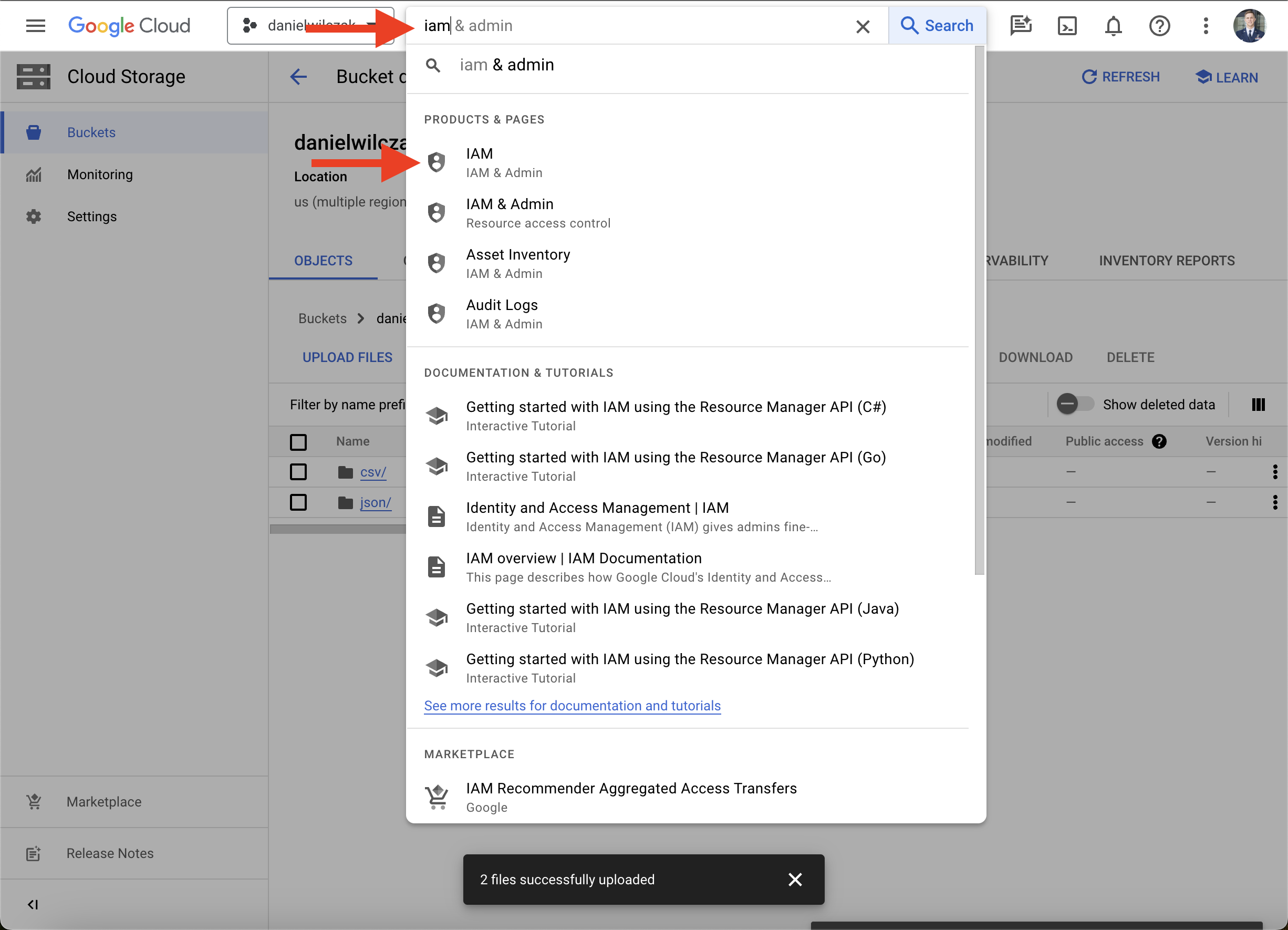

Let's navigate to IAM so that we can give snowflake access to our storage account. Navigate into IAM

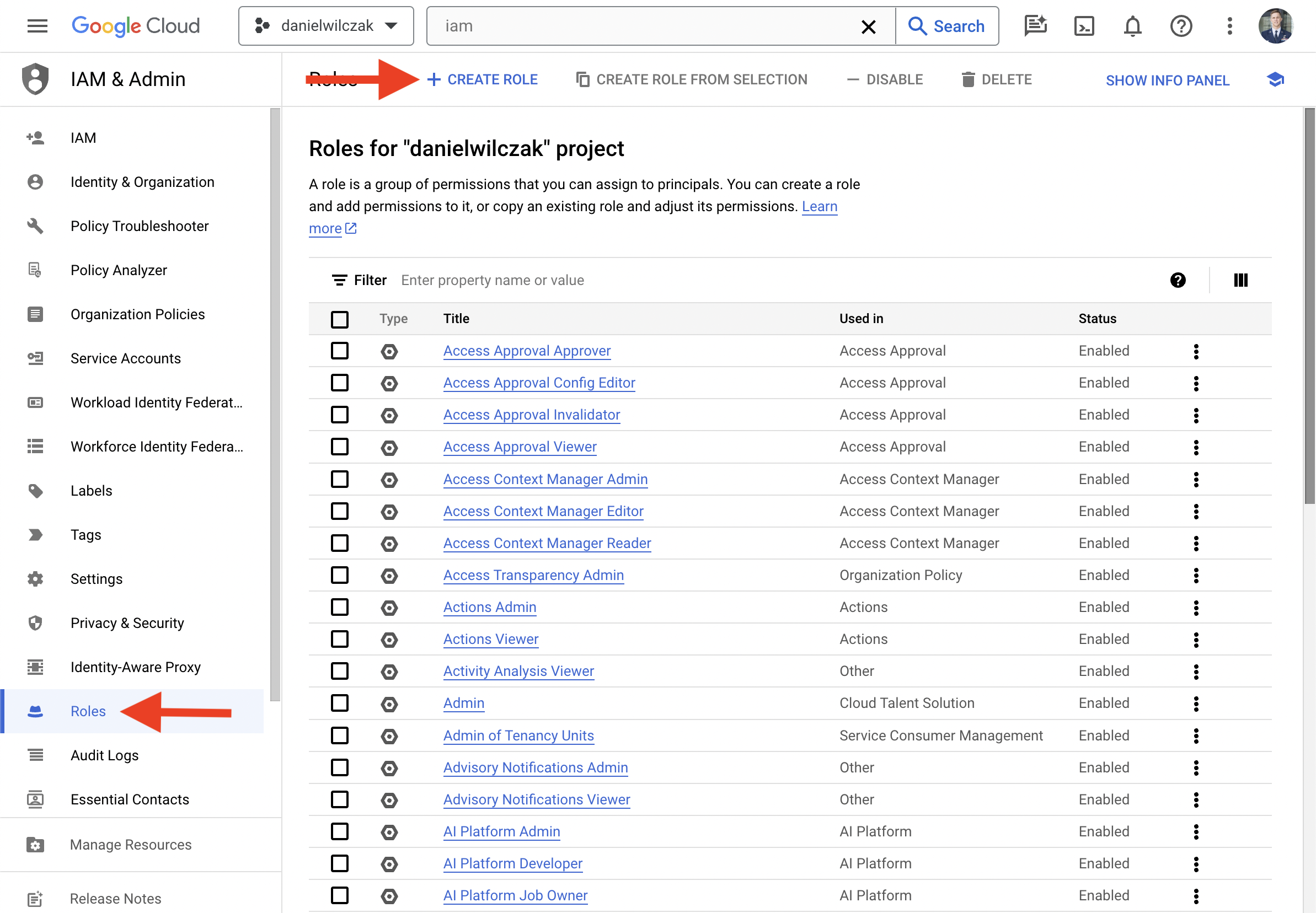

Create a new role. New Role

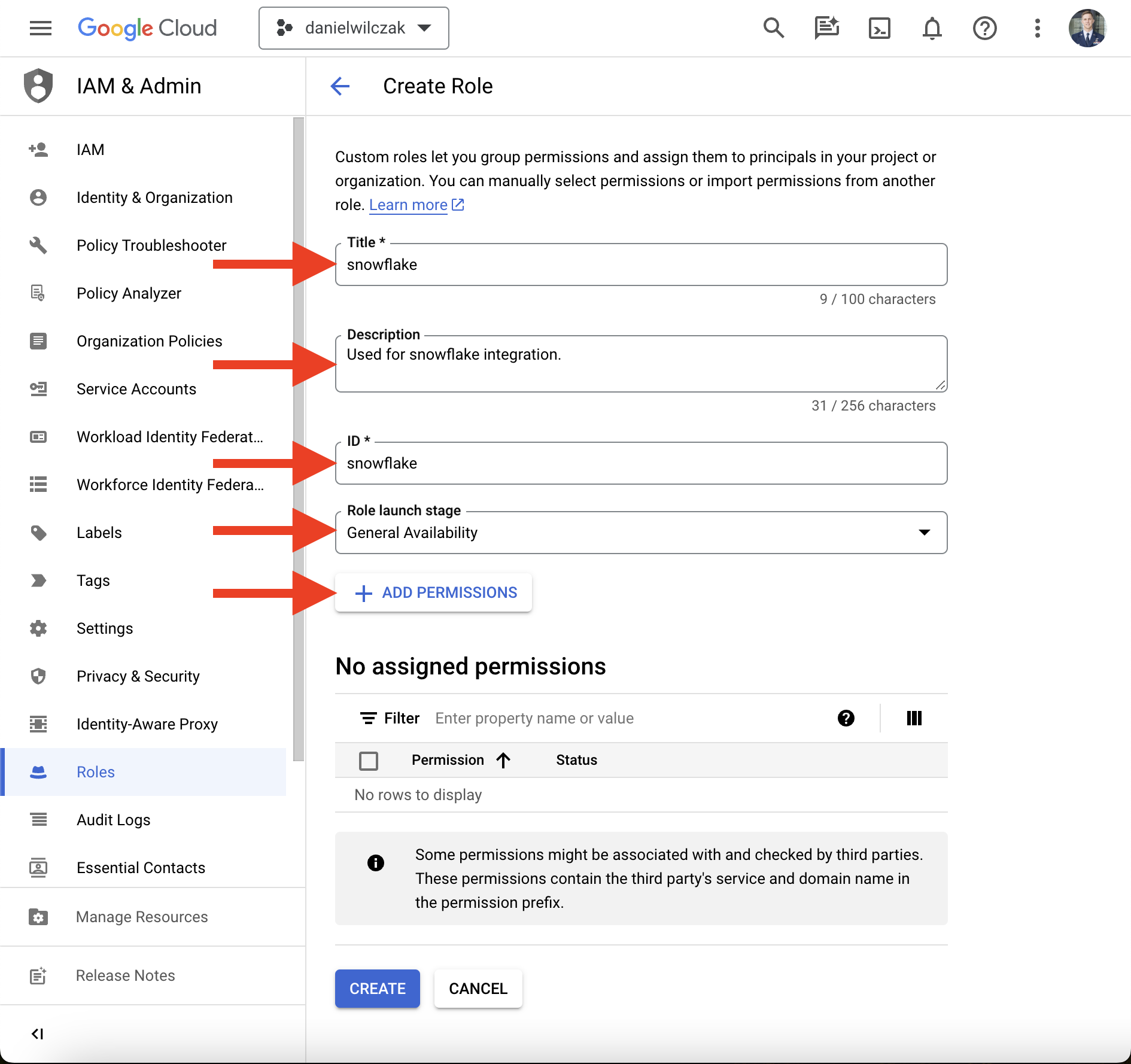

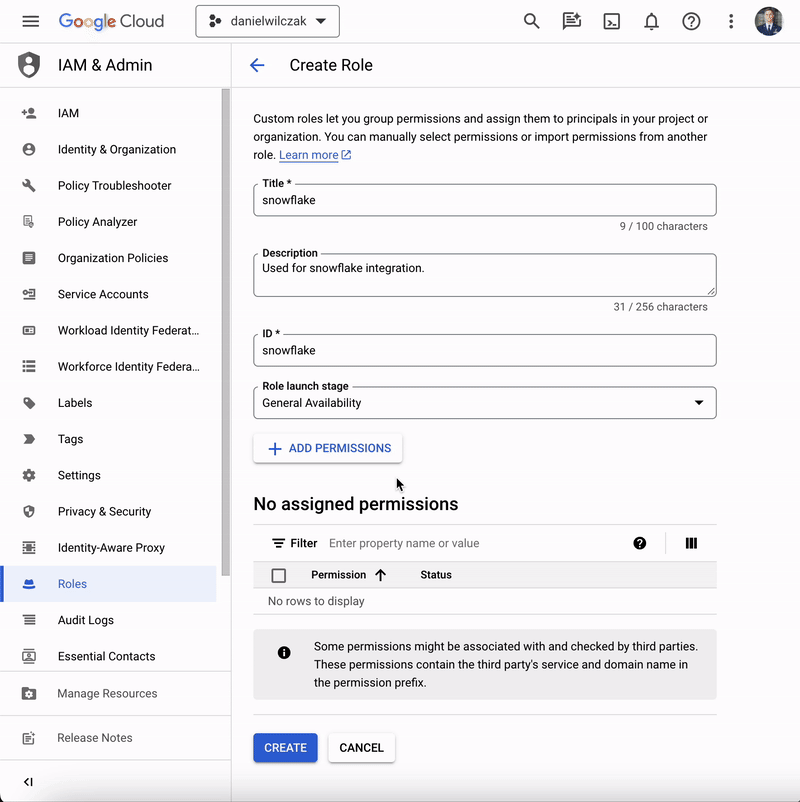

Fill in the role information. We will call it snowflake. After that click Add Permissions. Role information

The permissions to select can be found on Snowflake's documentation. In this tutorial I have chosen Data loading and unloading. I have also provided a gif to show how to select the permissions because the user interface is terrible. Add permissions

Navigate back to our bucket. Click permissions, followed by add principle. Navigate to bucket and permissions

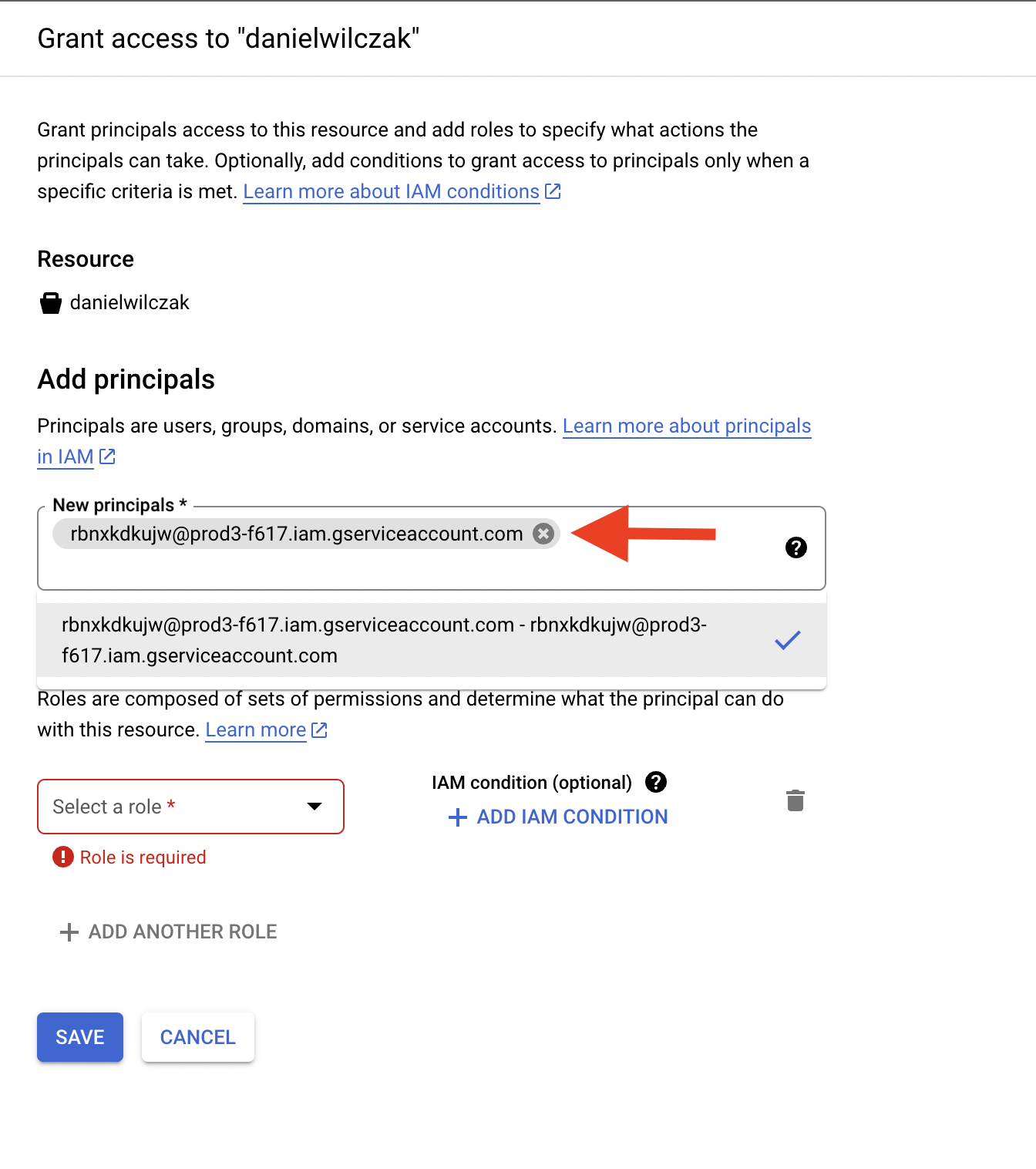

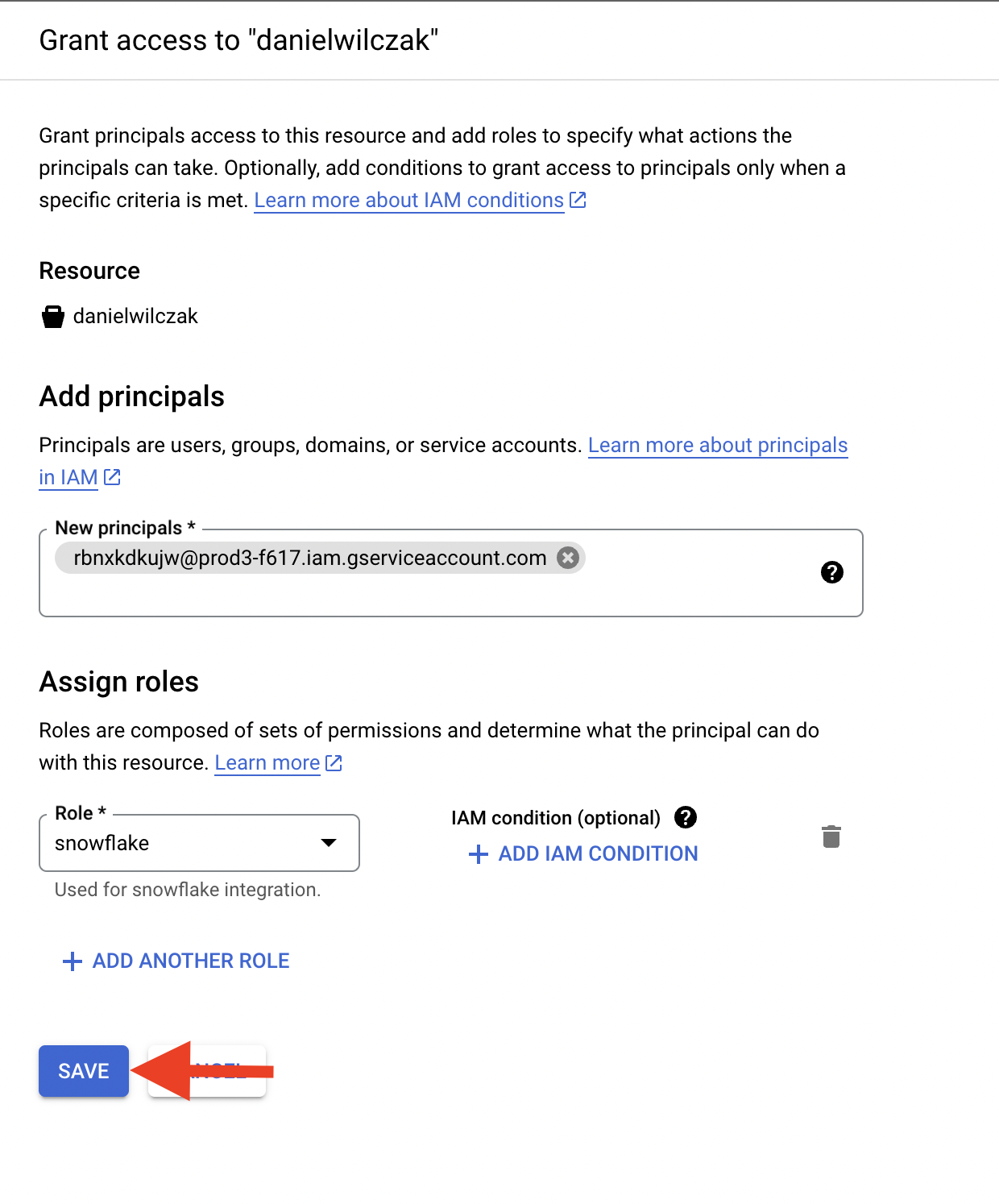

In the new principles section, add your URL given by Snowflake earlier. Add snowflake service account

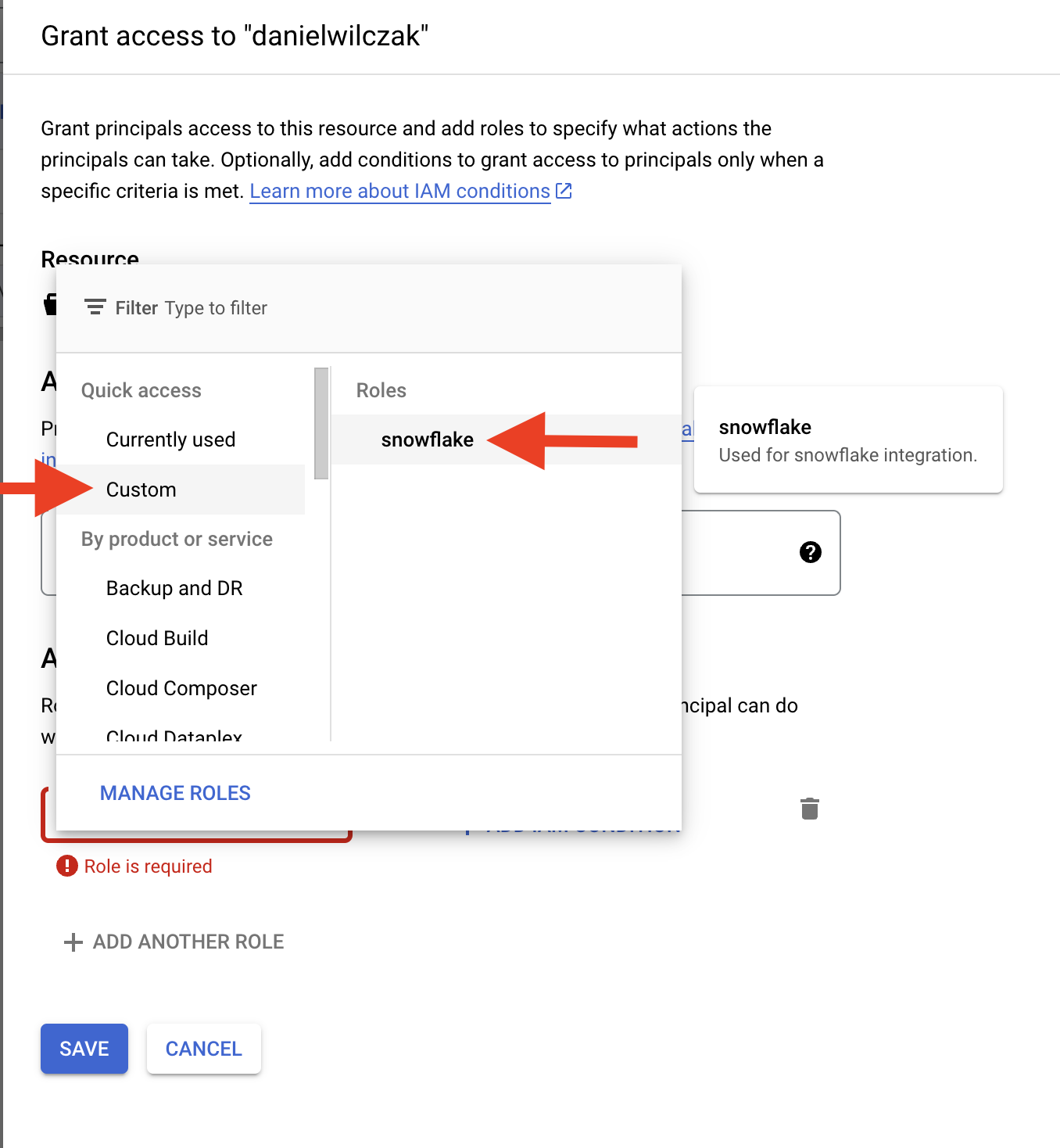

Now add your role by clicking select role -> custom -> snowflake. The last one will be your role name. Add role

If you get a 'Domain restricted sharing' error when you click 'Save'.

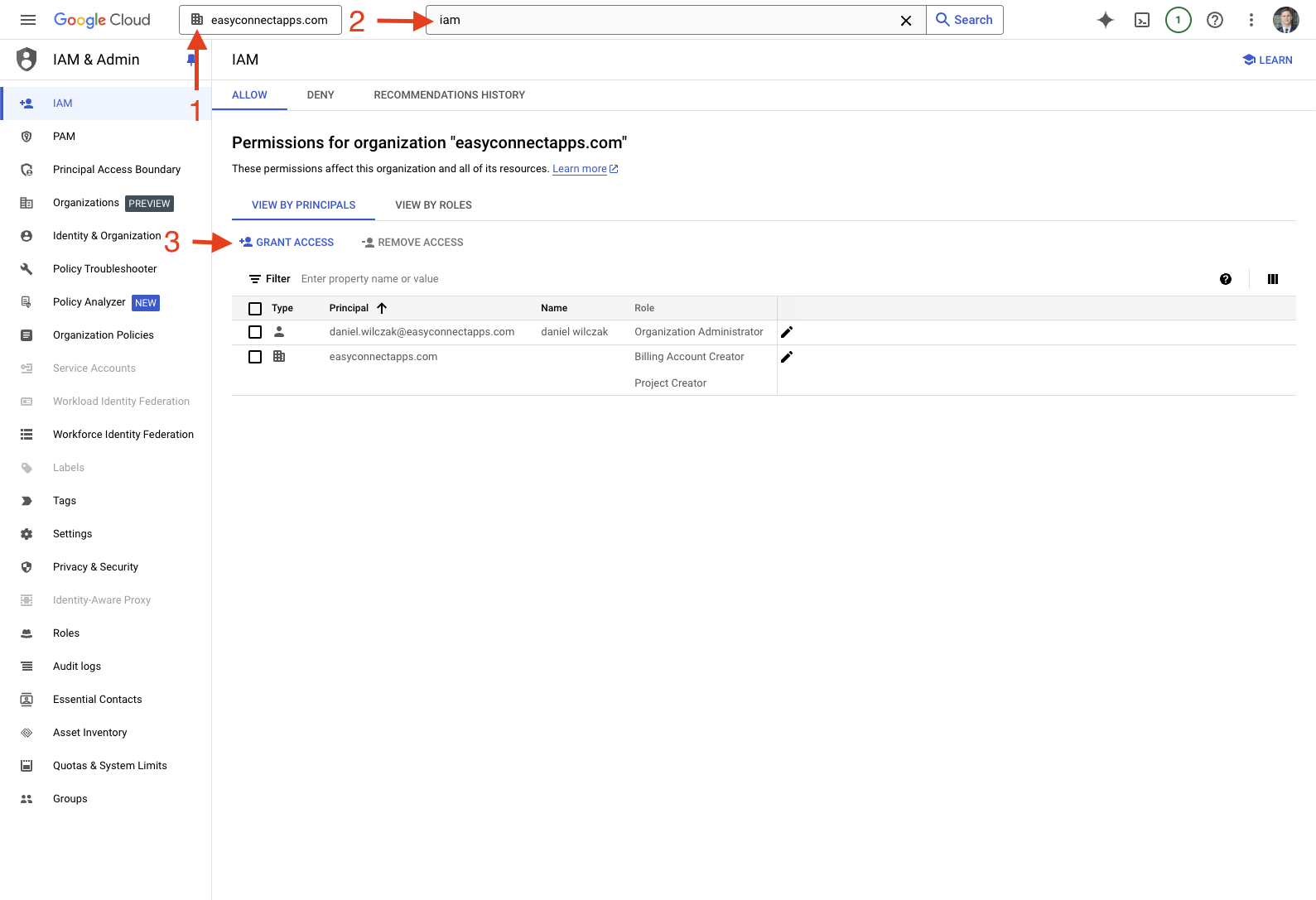

If you run into this error it's because google cloud has updated their policy as of March 2024. We'll have to update them. First select your organization (not your project), then go to IAM in the search, followed by clicking "grant access". navigate to grant access

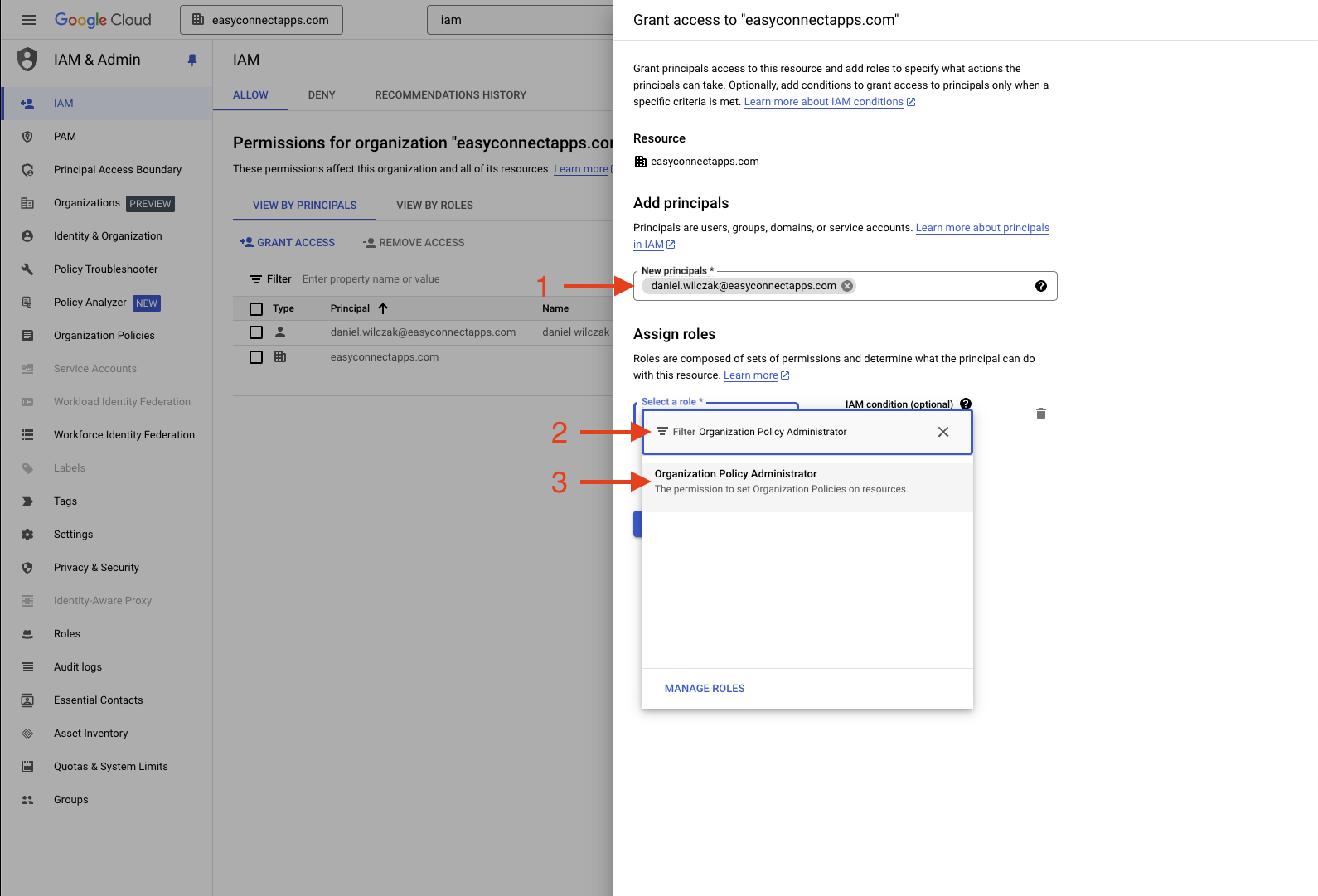

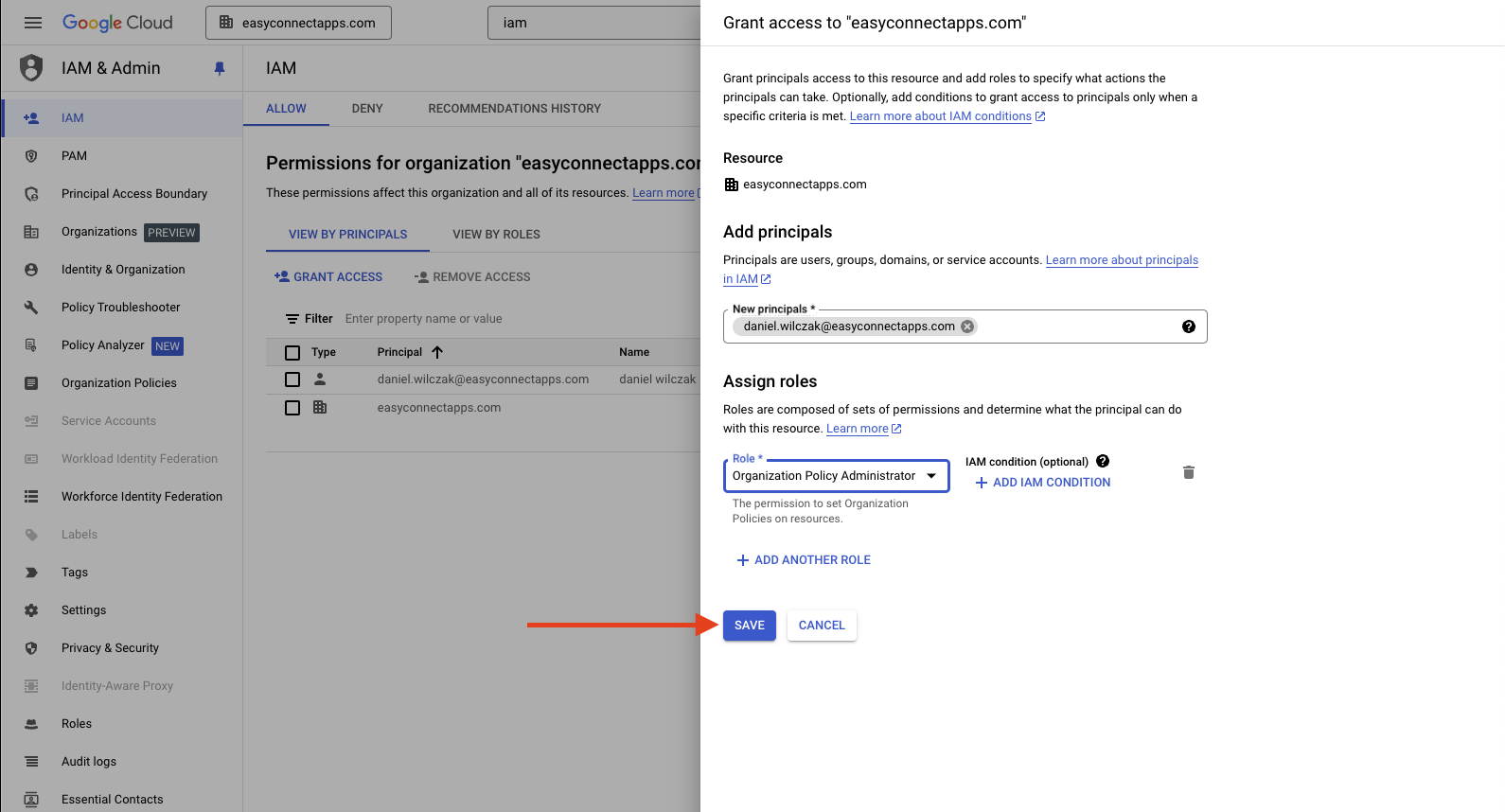

Next we'll add our user email into the new principals area. We'll search and click on "Organization Policy Administrator". org policy admin

Click save. update

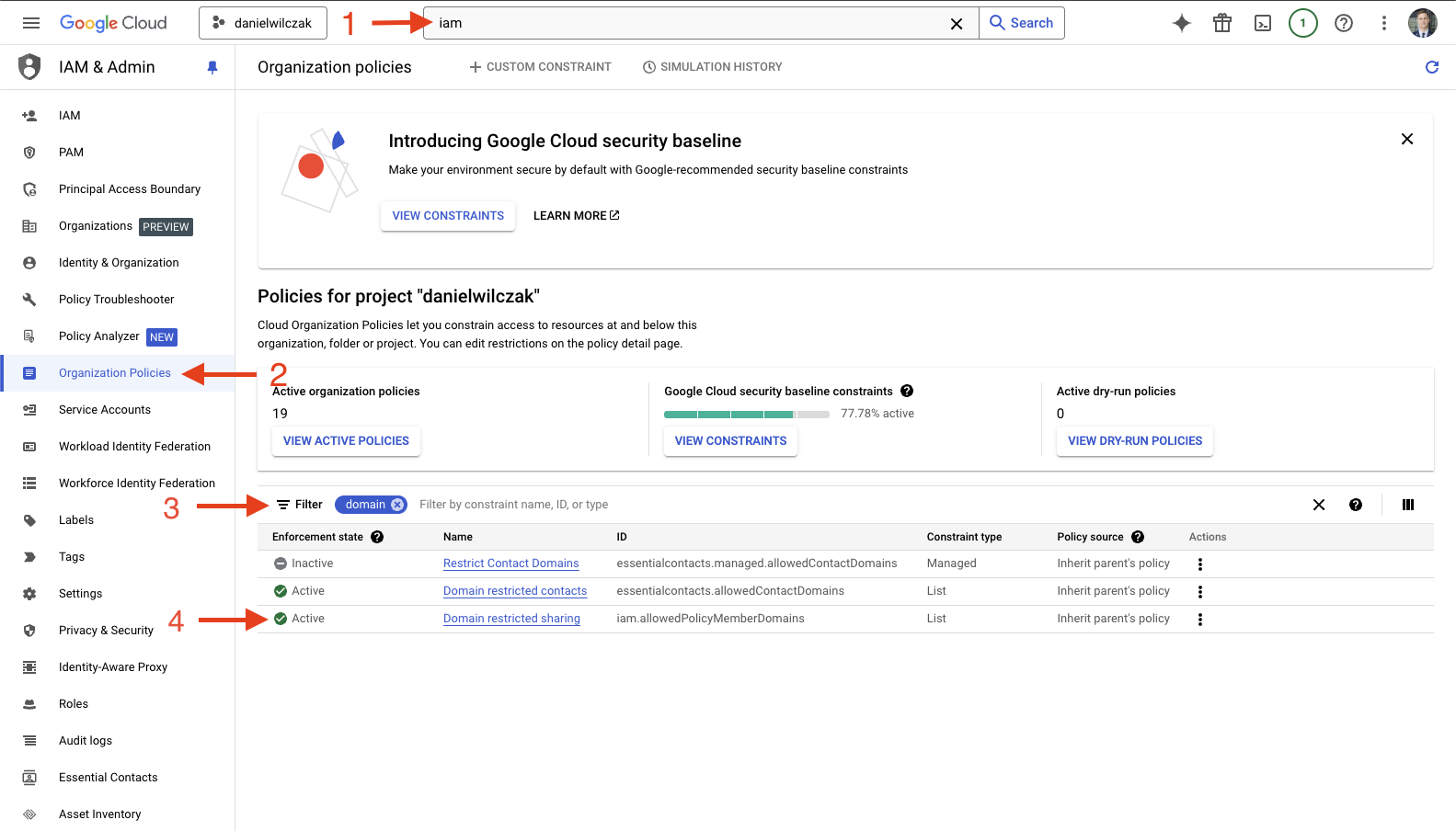

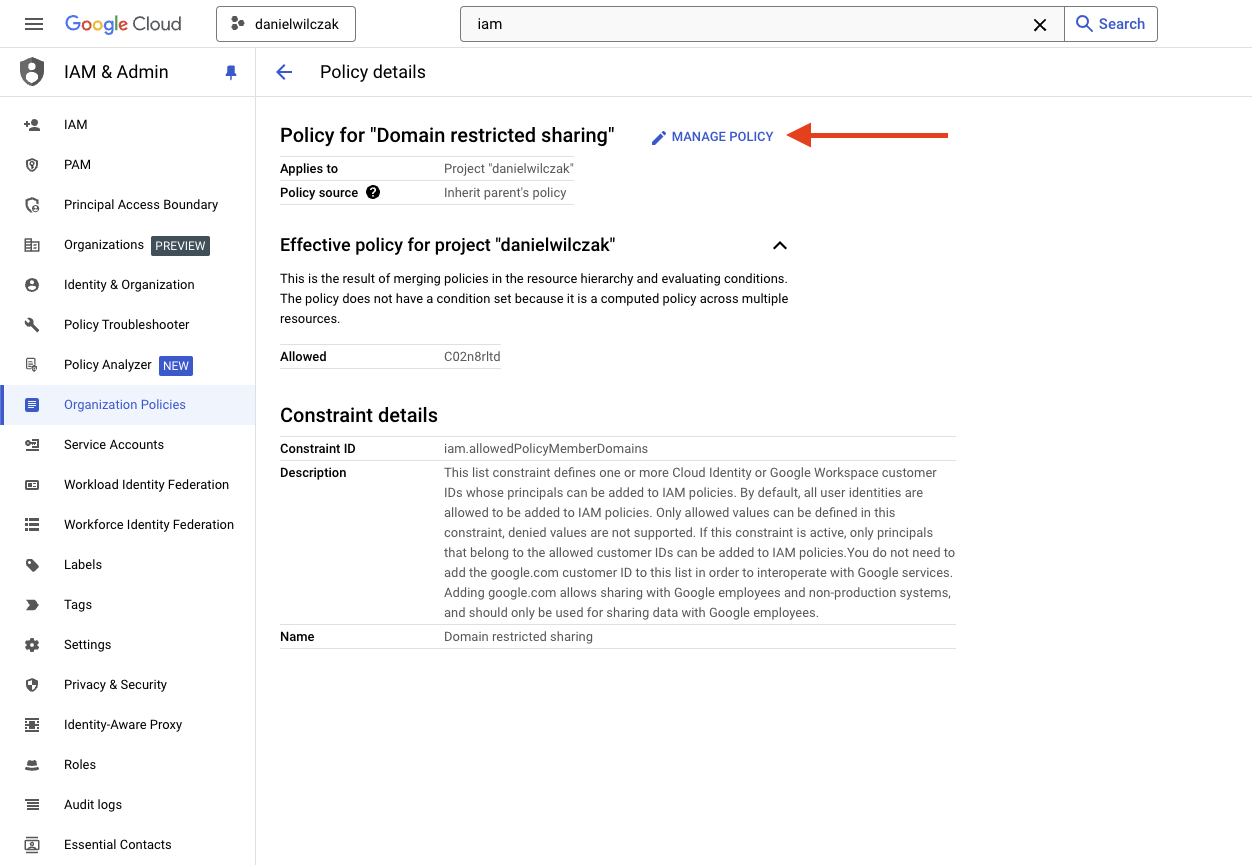

Next we'll want to update the policy. By searching IAM, selecting organization policies, searching domain and clicking on "Domain restricted sharing". update

Click Manage policy. update

Note

"Allow All" is the simple approach but feel free to use more fine grain approach via Snowflake documentation.

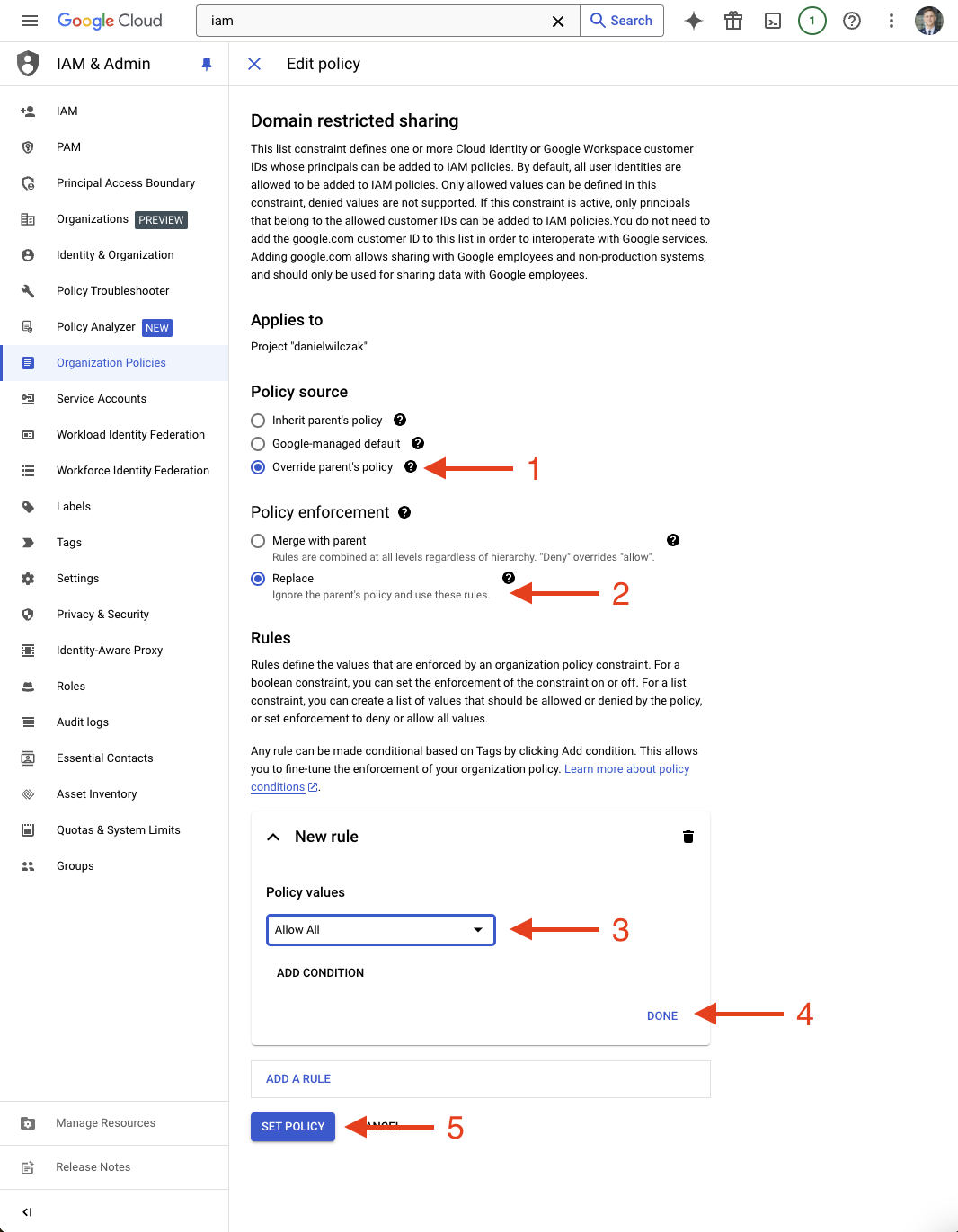

We'll want to override the parent policy with a new rule. Select replace the policy and then select "Allow All". Click done and "Set Policy." and your good to go. update

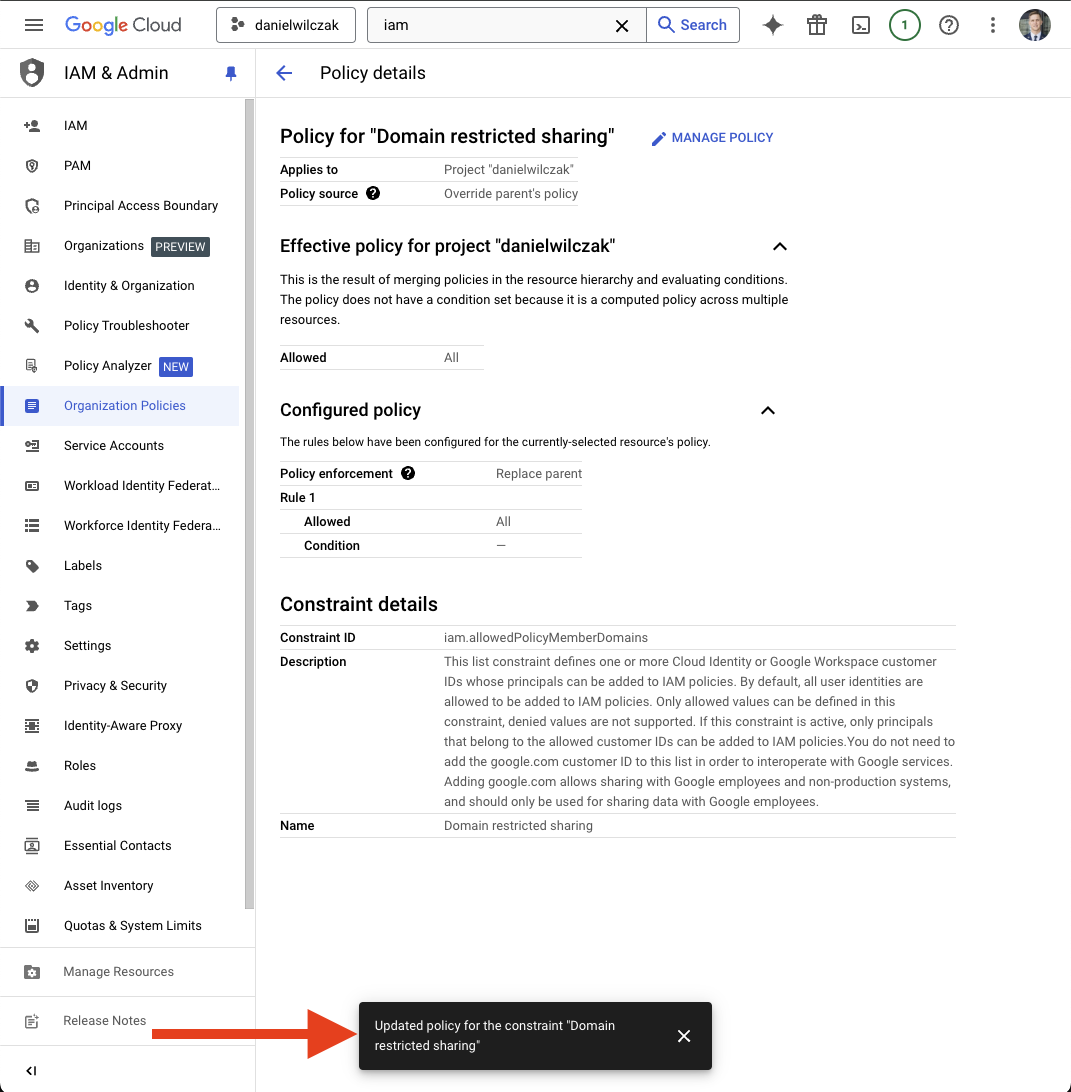

The policy has been updated and you can retry adding the role to the new principal. update

Click Save and you're finished GCP setup. Click Save

Load source data

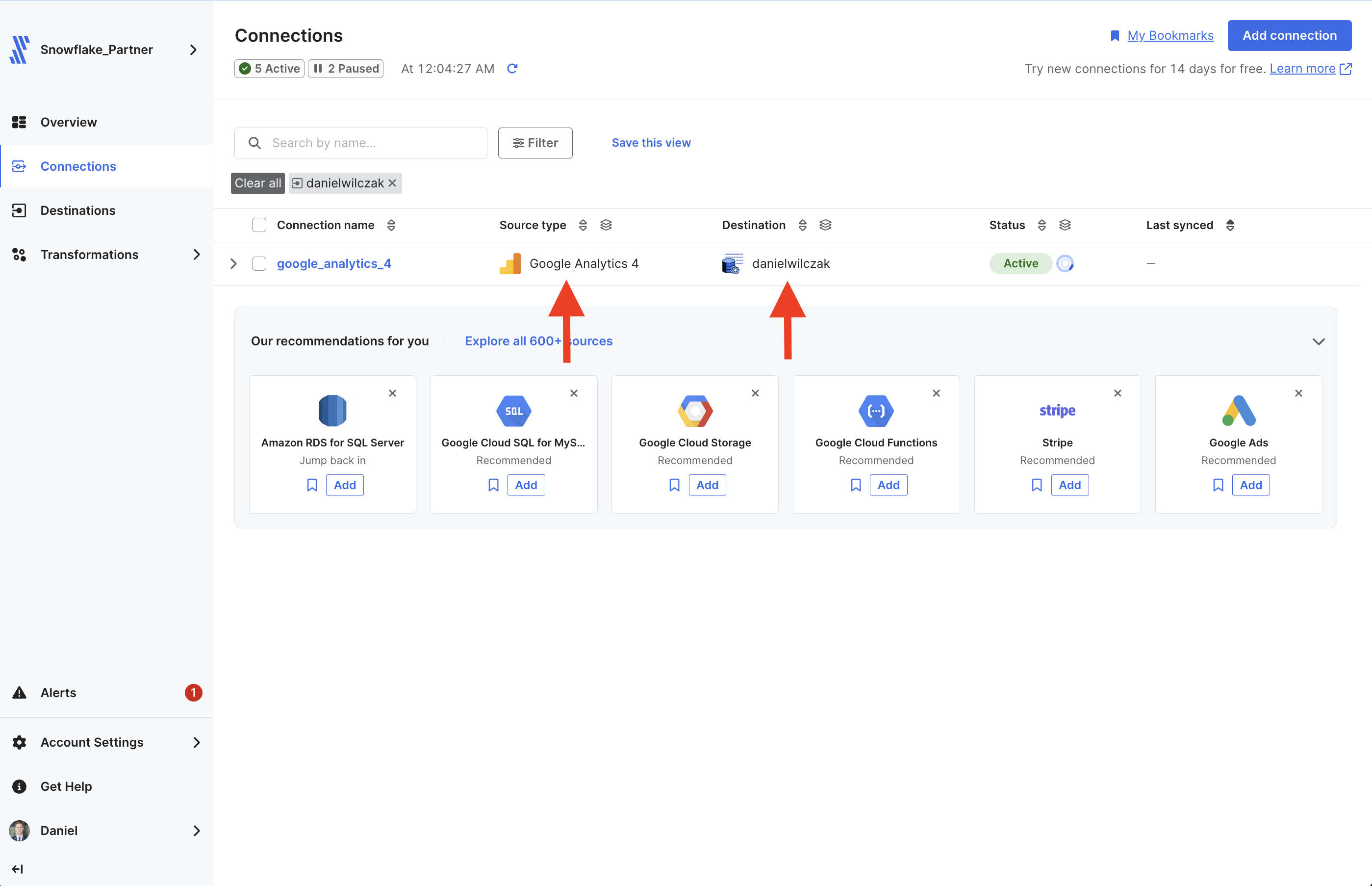

This section will be vary depending on what source you plan to use. In my example I would load some data from google analytics by adding it as a connector. UPDATE

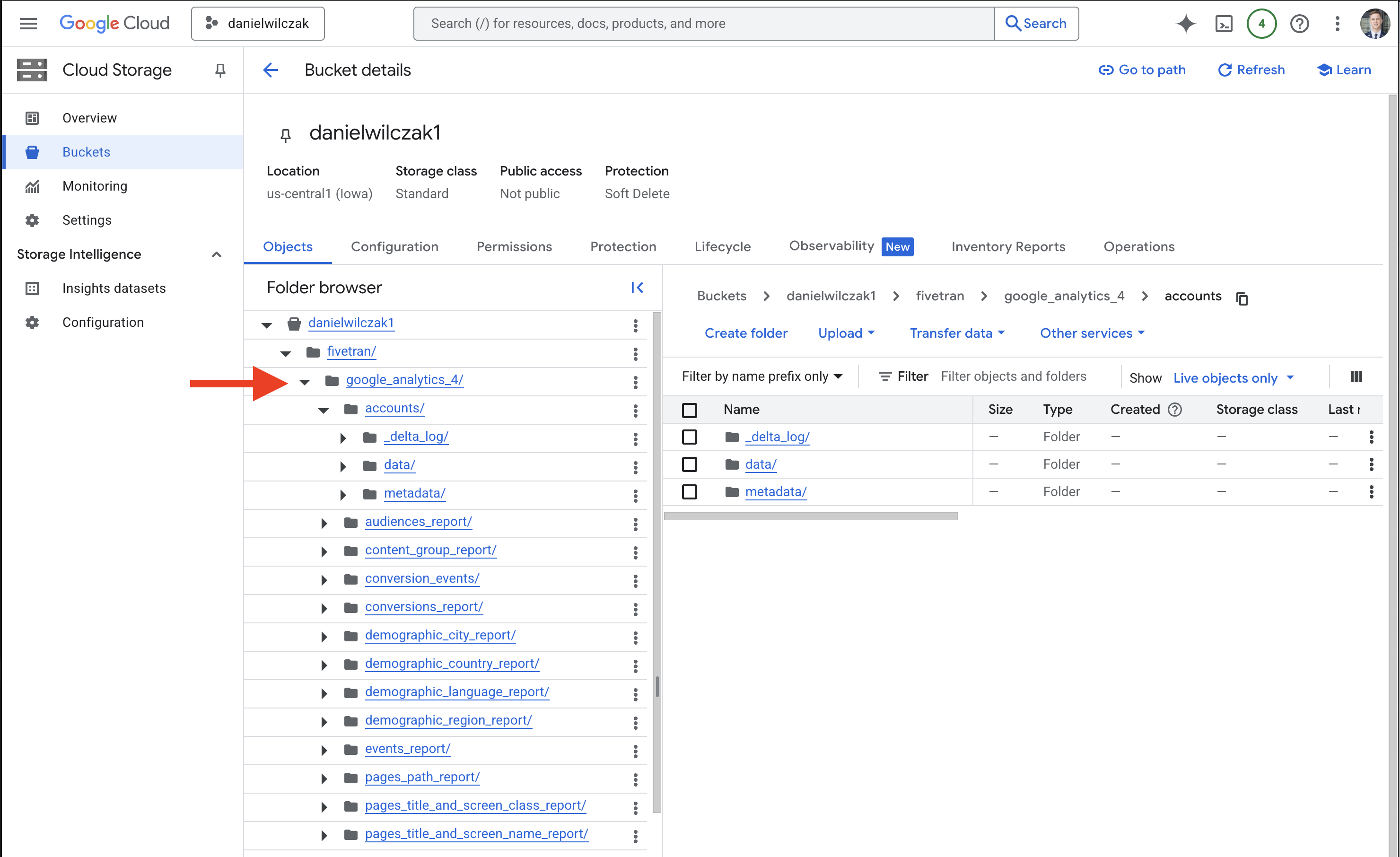

Now if we check our bucket you can see fivetran has loaded the google analytics data into our data lake. UPDATE

Create - Table

Let's create a database, schema and our first table in Snowflake using everything we have created.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
-- Create the database and schema to store the tables.
create or replace database <Database name>;
create or replace schema <Schema>;

-- Create the table from  the data and the catalog.
create or replace iceberg table <Table name>
    external_volume = '<volume>'
    catalog = '<catalog>'
    catalog_namespace = '<source name>'
    catalog_table_name = '<table name>'
    auto_refresh = true;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
create or replace database fivetran;
create or replace schema google_analytics_4;

-- Create the table from  the data and the catalog.
create or replace iceberg table accounts
    external_volume = 'fivetran_volume_throwback_refinery'
    catalog = 'fivetran_catalog_throwback_refinery'
    catalog_namespace = 'google_analytics_4'
    catalog_table_name = 'accounts'
    auto_refresh = true;

UPDATE

Now that we have our first table created let's query from it.

1
select * from accounts;
NAME DISPLAY_NAME REGION_CODE _FIVETRAN_SYNCED
accounts/302439834 danielwilczak US 2025-04-24 19:48:34.101 -0700

Automate - Table Creation

Now let's automate the creation of all the tables using a Py. We'll add this python code into a "thon scriptPython Worksheet". We'll want to fill in our "catalog integration name" and "external volume name" that we got from fivetran.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
import snowflake.snowpark as snowpark
from snowflake.snowpark.functions import col, lit
import json
import datetime
import pandas as pd
from functools import reduce

CATALOG_INTEGRATION_NAME = '<Catalog name>'
EXTERNAL_VOLUME_NAME     = '<External volume name>'

def main(session: snowpark.Session):
    # Fetch a list of tables from the external catalog
    external_catalog_tables = [
        row
        for rs in session.sql(f"select SYSTEM$LIST_ICEBERG_TABLES_FROM_CATALOG('{CATALOG_INTEGRATION_NAME}','',0) as TABLE_LIST").collect()
        for row in json.loads(rs.as_dict()["TABLE_LIST"])
    ]

    # Convert the tables to the appropriate CREATE SCHEMA and CREATE ICEBERG TABLE statements
    statements = [
        sql
        for table in external_catalog_tables
        for sql in [create_schema(table), create_table(table)]
    ]

    # Execute each of the statements and merge the resulting dataframes into one combined dataframe to show the user
    results = reduce(lambda left, right: left.union_all(right), [
        exec(session, statement)
        for statement in statements
    ])

    # Identify any tables that exist in CURRENT_DATABASE() that are not tracked in the external catalog and optionally
    sync_dropped_tables(session, external_catalog_tables, drop=False)

    return results.sort(col('statement_timestamp'))

def create_schema(table):
    return f"""
CREATE SCHEMA if not exists {table['namespace']}
EXTERNAL_VOLUME = '{EXTERNAL_VOLUME_NAME}'
CATALOG='{CATALOG_INTEGRATION_NAME}'
"""

def create_table(table):
    return f"""
CREATE OR REPLACE ICEBERG TABLE {table['namespace']}.{table['name']}
EXTERNAL_VOLUME = '{EXTERNAL_VOLUME_NAME}'
CATALOG='{CATALOG_INTEGRATION_NAME}'
CATALOG_NAMESPACE= '{table['namespace']}'
CATALOG_TABLE_NAME = '{table['name']}'
AUTO_REFRESH=TRUE;
"""

def exec_and_aggregate_results(session: snowpark.Session, dataframe: snowpark.DataFrame, sql: str) -> snowpark.DataFrame:
    results = session.sql(sql)
    results = results.with_column('statement_timestamp', lit(datetime.datetime.now()))
    results = results.with_column('statement', lit(sql))

    return dataframe.union_all(results) if dataframe else results

def exec(session: snowpark.Session, sql: str) -> snowpark.DataFrame:
    results = session.sql(sql)
    results = results.with_column('statement_timestamp', lit(datetime.datetime.now()))
    results = results.with_column('statement', lit(sql))
    return results

def sync_dropped_tables(session: snowpark.Session, external_catalog_tables: list, drop=False):
    all_tables_df = session.sql("""
SELECT CONCAT(table_schema, '.', table_name) AS FQTN, table_schema, table_name  FROM INFORMATION_SCHEMA.TABLES WHERE table_catalog = CURRENT_DATABASE() and table_schema NOT IN ('INFORMATION_SCHEMA', 'PUBLIC')
""").toPandas()

    external_catalog_tables_df = pd.DataFrame.from_dict(external_catalog_tables)
    external_catalog_tables_df['FQTN'] = external_catalog_tables_df["namespace"].str.upper() + "." + external_catalog_tables_df["name"].str.upper()

    tables_to_drop = all_tables_df.merge(external_catalog_tables_df, on='FQTN', how='left', indicator=True)
    tables_to_drop = tables_to_drop[tables_to_drop['_merge'] == 'left_only'].drop(columns=['_merge'])
    drop_statements = tables_to_drop["FQTN"].map(lambda fqtn: f"""DROP TABLE {fqtn}""")

    for sql in drop_statements:
        if drop:
            session.sql(sql)
            print(f"Dropped orphan table: {sql}")
        else:
            print("Orphan table detected. Run the following to drop it:")
            print(sql)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
import snowflake.snowpark as snowpark
from snowflake.snowpark.functions import col, lit
import json
import datetime
import pandas as pd
from functools import reduce

CATALOG_INTEGRATION_NAME = 'fivetran_catalog_throwback_refinery'
EXTERNAL_VOLUME_NAME     = 'fivetran_volume_throwback_refinery'

def main(session: snowpark.Session):
    # Fetch a list of tables from the external catalog
    external_catalog_tables = [
        row
        for rs in session.sql(f"select SYSTEM$LIST_ICEBERG_TABLES_FROM_CATALOG('{CATALOG_INTEGRATION_NAME}','',0) as TABLE_LIST").collect()
        for row in json.loads(rs.as_dict()["TABLE_LIST"])
    ]

    # Convert the tables to the appropriate CREATE SCHEMA and CREATE ICEBERG TABLE statements
    statements = [
        sql
        for table in external_catalog_tables
        for sql in [create_schema(table), create_table(table)]
    ]

    # Execute each of the statements and merge the resulting dataframes into one combined dataframe to show the user
    results = reduce(lambda left, right: left.union_all(right), [
        exec(session, statement)
        for statement in statements
    ])

    # Identify any tables that exist in CURRENT_DATABASE() that are not tracked in the external catalog and optionally
    sync_dropped_tables(session, external_catalog_tables, drop=False)

    return results.sort(col('statement_timestamp'))

def create_schema(table):
    return f"""
CREATE SCHEMA if not exists {table['namespace']}
EXTERNAL_VOLUME = '{EXTERNAL_VOLUME_NAME}'
CATALOG='{CATALOG_INTEGRATION_NAME}'
"""

def create_table(table):
    return f"""
CREATE OR REPLACE ICEBERG TABLE {table['namespace']}.{table['name']}
EXTERNAL_VOLUME = '{EXTERNAL_VOLUME_NAME}'
CATALOG='{CATALOG_INTEGRATION_NAME}'
CATALOG_NAMESPACE= '{table['namespace']}'
CATALOG_TABLE_NAME = '{table['name']}'
AUTO_REFRESH=TRUE;
"""

def exec_and_aggregate_results(session: snowpark.Session, dataframe: snowpark.DataFrame, sql: str) -> snowpark.DataFrame:
    results = session.sql(sql)
    results = results.with_column('statement_timestamp', lit(datetime.datetime.now()))
    results = results.with_column('statement', lit(sql))

    return dataframe.union_all(results) if dataframe else results

def exec(session: snowpark.Session, sql: str) -> snowpark.DataFrame:
    results = session.sql(sql)
    results = results.with_column('statement_timestamp', lit(datetime.datetime.now()))
    results = results.with_column('statement', lit(sql))
    return results

def sync_dropped_tables(session: snowpark.Session, external_catalog_tables: list, drop=False):
    all_tables_df = session.sql("""
SELECT CONCAT(table_schema, '.', table_name) AS FQTN, table_schema, table_name  FROM INFORMATION_SCHEMA.TABLES WHERE table_catalog = CURRENT_DATABASE() and table_schema NOT IN ('INFORMATION_SCHEMA', 'PUBLIC')
""").toPandas()

    external_catalog_tables_df = pd.DataFrame.from_dict(external_catalog_tables)
    external_catalog_tables_df['FQTN'] = external_catalog_tables_df["namespace"].str.upper() + "." + external_catalog_tables_df["name"].str.upper()

    tables_to_drop = all_tables_df.merge(external_catalog_tables_df, on='FQTN', how='left', indicator=True)
    tables_to_drop = tables_to_drop[tables_to_drop['_merge'] == 'left_only'].drop(columns=['_merge'])
    drop_statements = tables_to_drop["FQTN"].map(lambda fqtn: f"""DROP TABLE {fqtn}""")

    for sql in drop_statements:
        if drop:
            session.sql(sql)
            print(f"Dropped orphan table: {sql}")
        else:
            print("Orphan table detected. Run the following to drop it:")
            print(sql)
status STATEMENT_TIMESTAMP STATEMENT
Schema GOOGLE_ANALYTICS successfully created. 2025-05-23 14:28:14.514 CREATE SCHEMA if not exists google_analytics EXTERNAL_VOLUME = 'fivetran_volume_buffer_concierge' CATALOG='fivetran_catalog_buffer_concierge'
Table CONVERSION_EVENTS successfully created. 2025-05-23 14:28:14.517 CREATE OR REPLACE ICEBERG TABLE google_analytics.conversion_events EXTERNAL_VOLUME = 'fivetran_volume_buffer_concierge' CATALOG='fivetran_catalog_buffer_concierge' CATALOG_NAMESPACE= 'google_analytics' CATALOG_TABLE_NAME = 'conversion_events' AUTO_REFRESH=TRUE;
GOOGLE_ANALYTICS already exists, statement succeeded. 2025-05-23 14:28:14.520 CREATE SCHEMA if not exists google_analytics EXTERNAL_VOLUME = 'fivetran_volume_buffer_concierge' CATALOG='fivetran_catalog_buffer_concierge'
