Snowflake Model Registry

In this tutorial we will show how you can create a model in a notebook, save that model to the model registry and deploy/use that model via SQL.

Video

Video still in development

Requirement

• Snowflake account, you can use a free trial. We also assume no complex security needs.

Download

• Notebook (Link)

Setup

Lets start by adding some sample data and uploading our notebook.

If you don't have a database, schema or warehouse yet.

Database, schema and warehouse

use role accountadmin;

-- Create a database to store our schemas.
create database if not exists raw;

-- Create the schema. The schema stores all our objectss.
create schema if not exists raw.science;

/*
    Warehouses are synonymous with the idea of compute
    resources in other systems. We will use this
    warehouse to call our user defined function.
*/
create warehouse if not exists development
    warehouse_size = xsmall
    auto_suspend = 30
    initially_suspended = true;

use database raw;
use schema science;
use warehouse development;

Sample data

First lets start by creating some sample data for our model to train from.

Code Result

use role accountadmin;

-- Sample Data
create or replace table student_test_scores as
    select
        $1 as hours_studied,
        $2 as test_score
    from values
        (1.0, 3.5),
        (2.0, 9.2),
        (3.0, 13.1),
        (4.0, 24.7),
        (5.0, 28.5),
        (6.0, 41.0),
        (7.0, 50.3),
        (8.0, 63.5),
        (9.0, 82.1),
        (10.0, 95.0);

| status                                          |
|-------------------------------------------------|
| Table STUDENT_TEST_SCORES successfully created. |

Upload and Setup Notebook

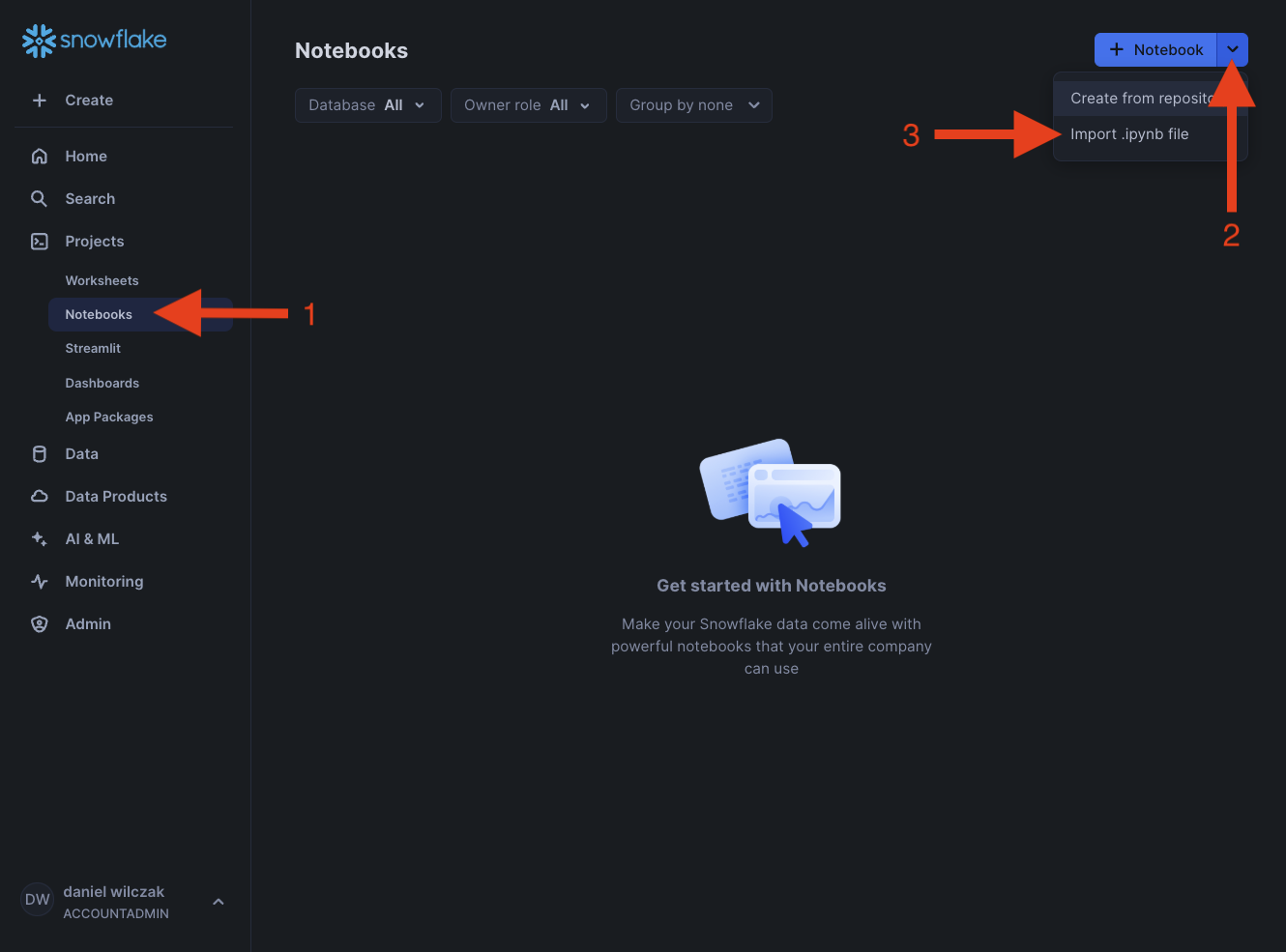

Lets upload our notebook we downloaded earlier. Start by navigating to notebooks and clicking import .ipynb file.

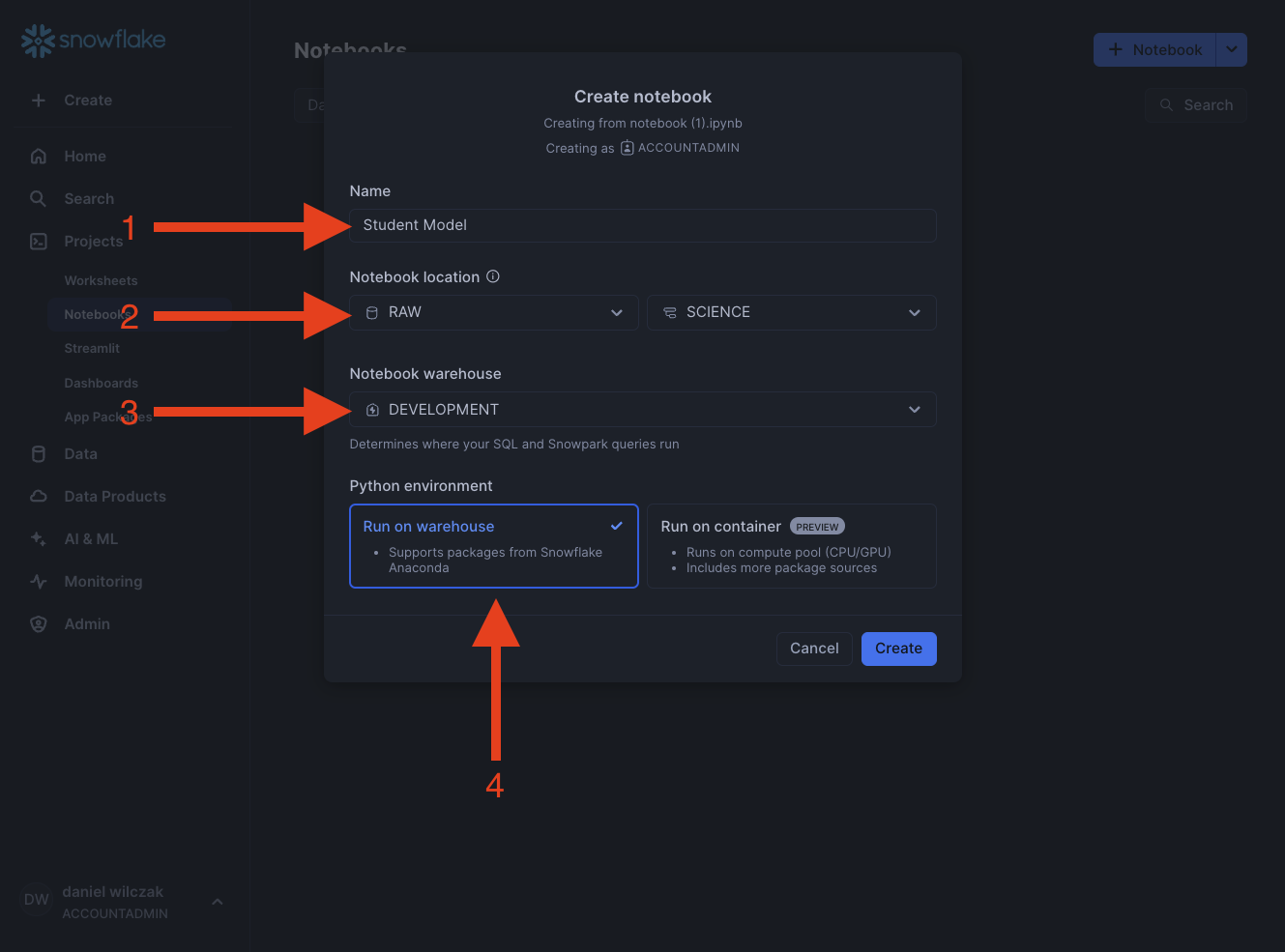

Next we'll name it and select the location and that we want to run via a warehouse.

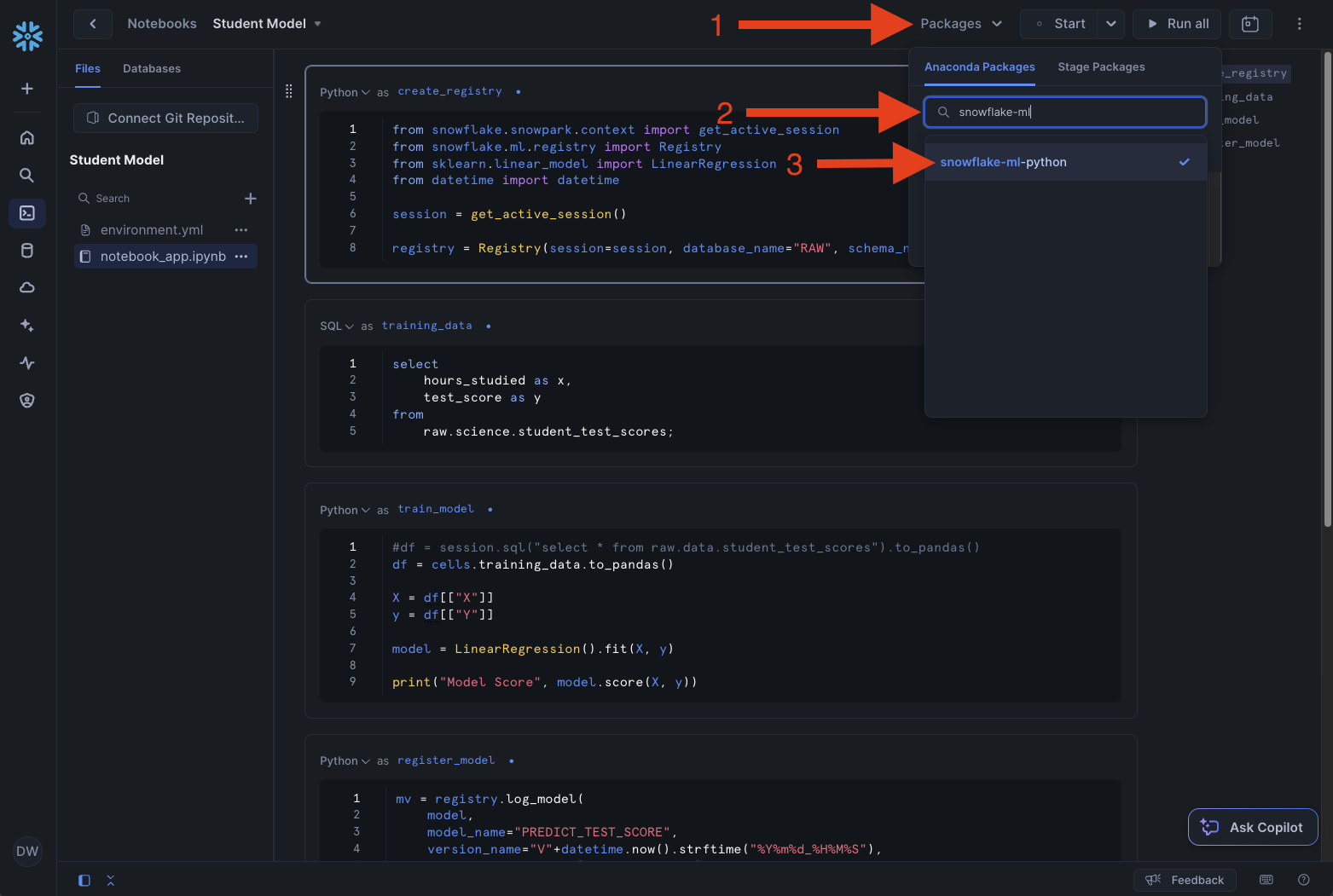

Our final step before running is to install the needed package snowflake-ml-python to build and save our model. The package comes with sklearn with it.

Run the notebook

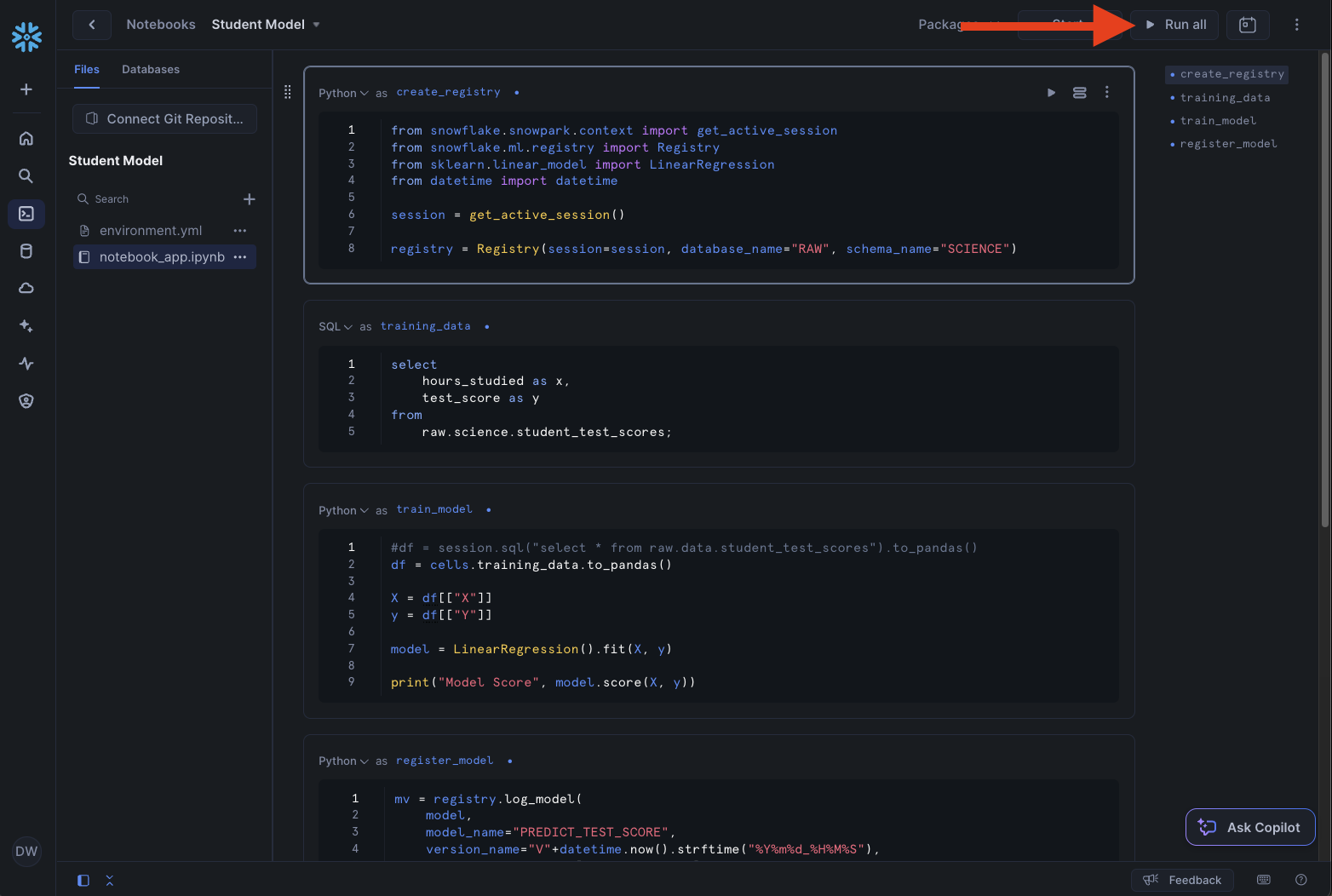

To run the notebook we'll click run all.

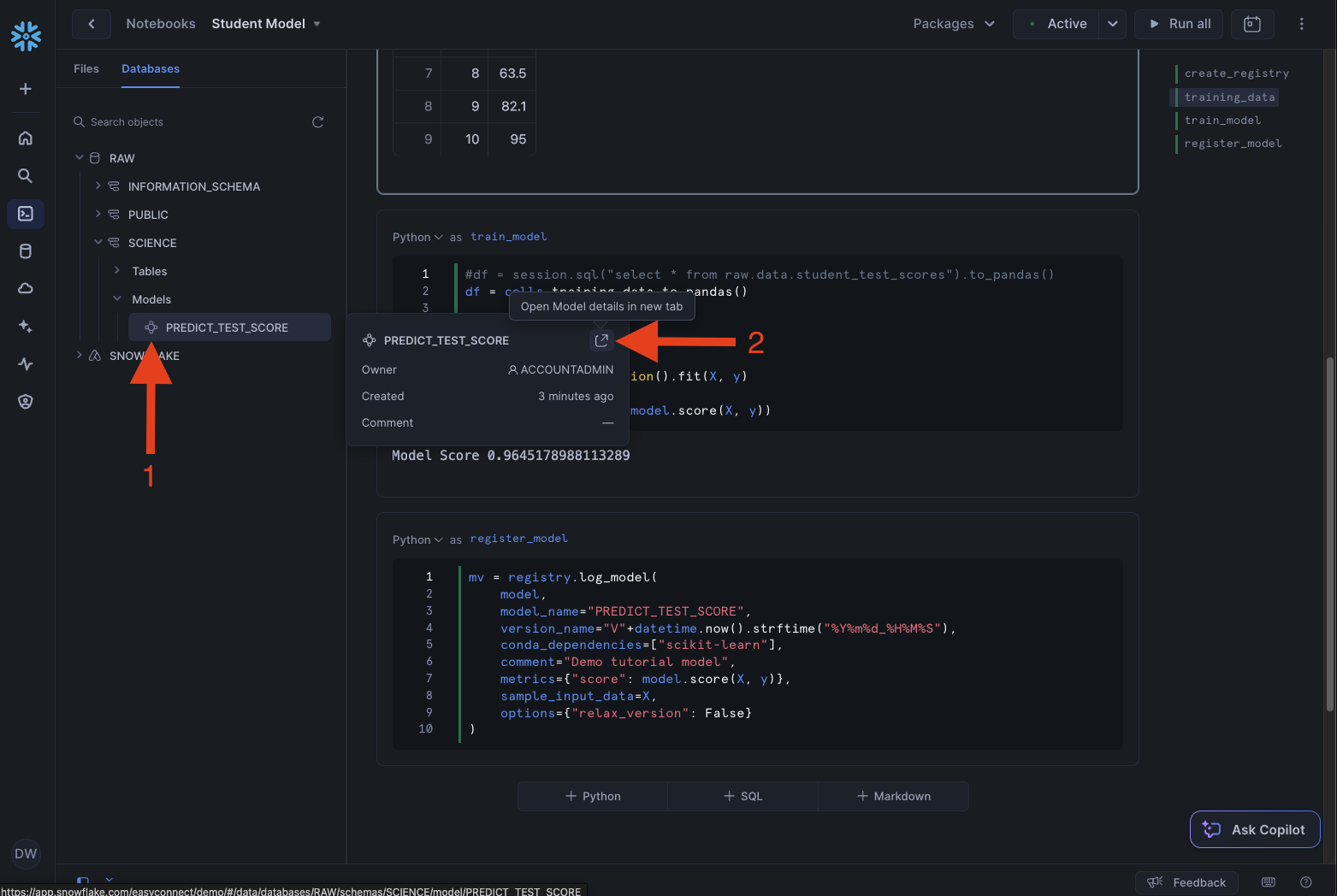

Once the model is run we can refresh our schema to see a model object has been added. We'll want to open the details to get our metrics we saved in the notebook.

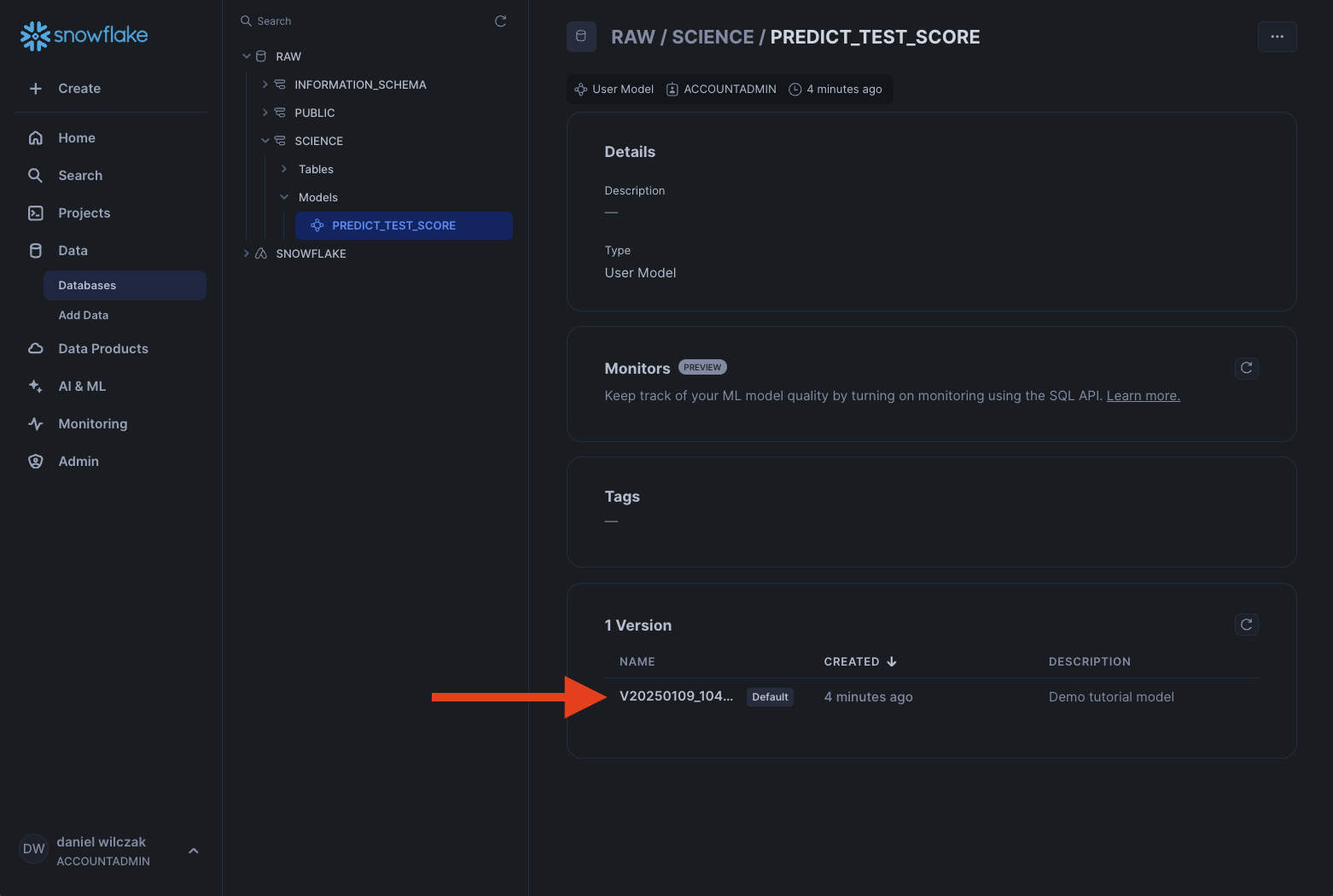

We can click on the version we just created.

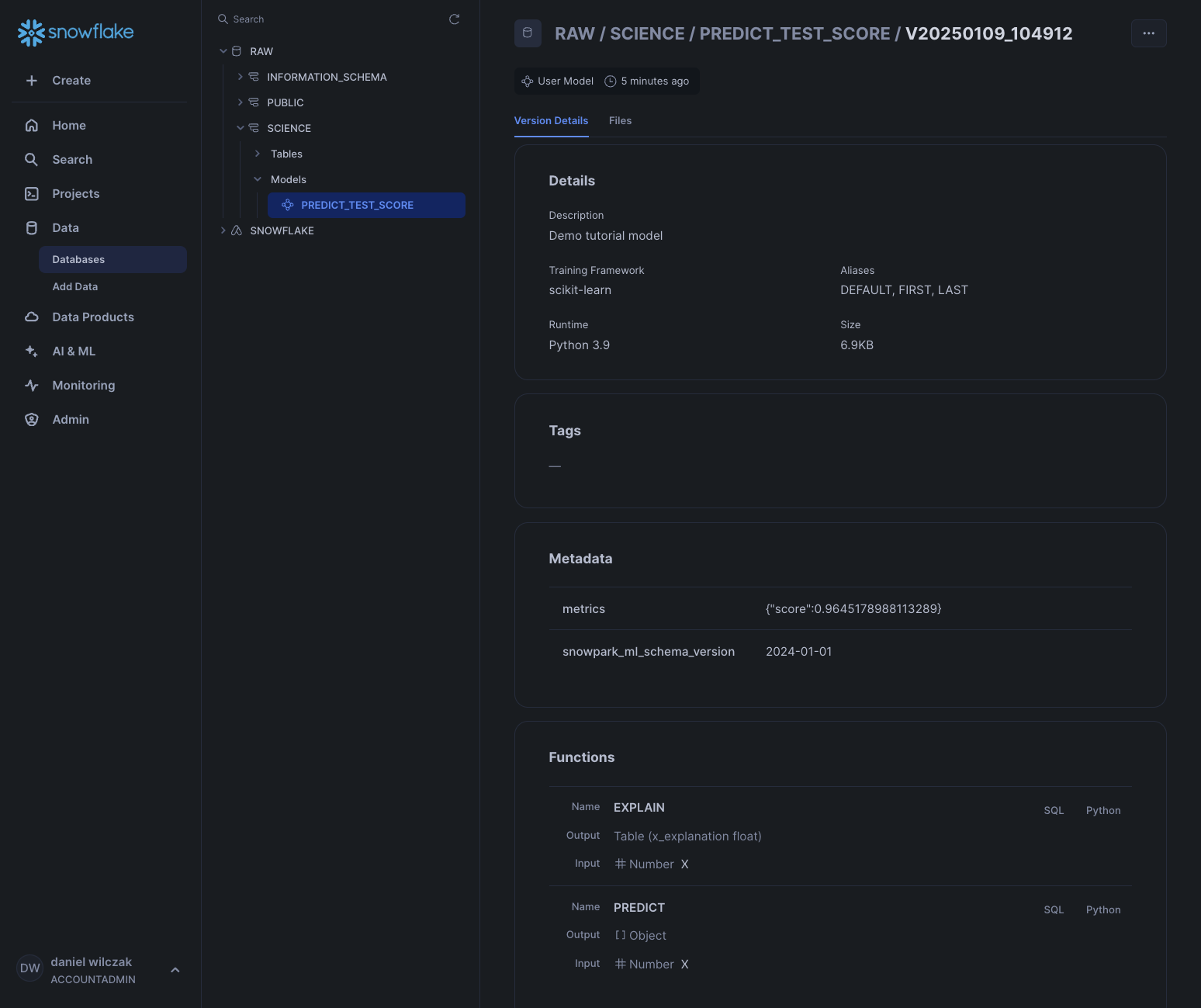

We can see the metadata our model and also the functions we will use in the next section to make predictions via SQL.

Use the model via SQL

Now that we have our model saved into our model registry, lets use the model via sql to make a prediction. Lets open a new worksheet.

Code Result

-- Using the default version.
select
    8 as hours_studied,

    predict_test_score!predict(hours_studied) as result,

    result:output_feature_0::float as prediction;

| HOURS_STUDIED | RESULT                                          | PREDICTION  |
|---------------|-------------------------------------------------|-------------|
| 8             | {   "output_feature_0": 6.647030303030303e+01 } | 66.47030303 |

We can also select specific versions if we have multiple or want to retrieve the latest model version..

Code Result

-- Selecting a specific model version.
with
    predict_test_score as model predict_test_score version last

select
    3.5 as hours_studied,
    predict_test_score!predict(hours_studied) as result,
    result:output_feature_0::float as prediction;

| HOURS_STUDIED | RESULT                                          | PREDICTION   |
|---------------|-------------------------------------------------|--------------|
| 3.5           | {   "output_feature_0": 2.586181818181818e+01 } | 25.861818182 |

Change default version

Updating the version can allow us to make sure downstream users are using the correct model.

Code Example Result

alter model
    predict_test_score
set
    default_version = <Model version name>;

alter model
   predict_test_score
set
    default_version = V20241122_114535;

| status                           |
|----------------------------------|
| Statement executed successfully. |
